DRAGON
05310

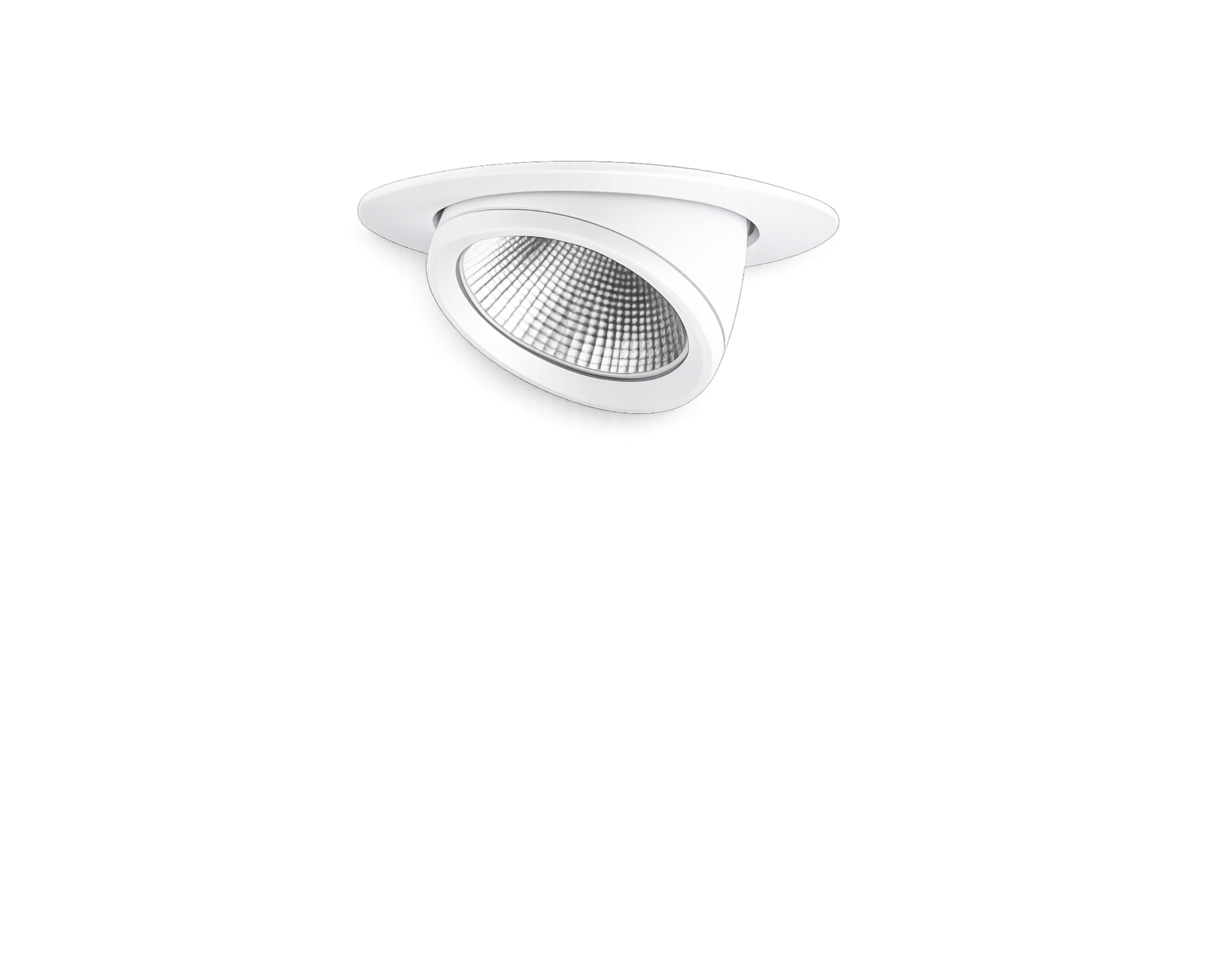

Professional Adjustable Spot Light Fixture

Dragon is designed for accent lighting with its high light performance and steerable optical structure. The movable inner body design allows the light to be directed to the desired point. The aluminum injection body and frame structure provide excellent heat management, contributing to the long lifespan of the LED components. Its metallized reflector and 34°-42° angle options create controlled and focused lighting, while its UGR≤19 value supports visual comfort.

It is ideal for shops, showrooms, art galleries, hotels, museums, and commercial projects. It adapts to different architectural concepts, offering both an aesthetic and functional lighting experience.

Min-Max Watt:
28-37 [W]
Lumen:
3050-4000 [lm]
Lumen / Watt:
110 [lm/W]
Technical Documents
General Information
Body & Frame
Aluminum Injection
Reflector
Metalized Coated Reflector
Paint
Electrostatic Powder Coating
Insulation Class
Class II

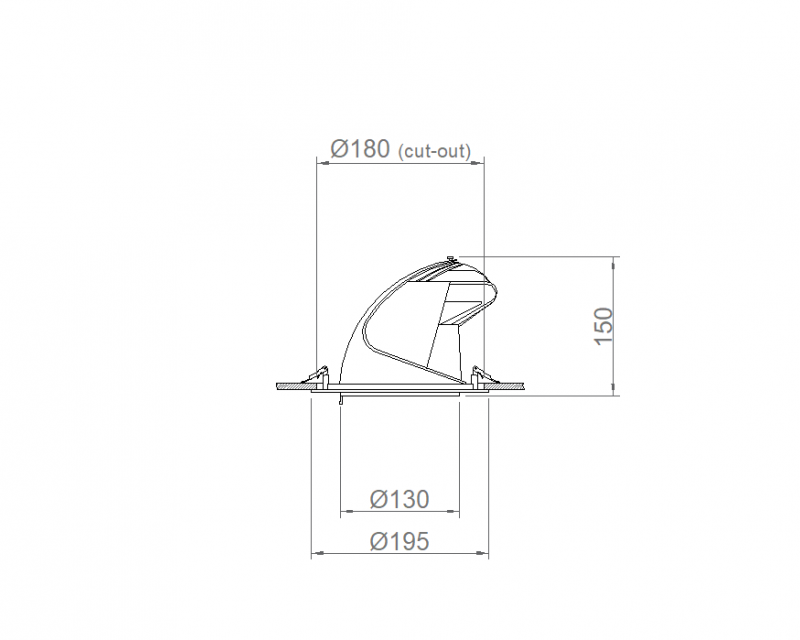

Product Dimensions [mm]
Ø195x150(H)
Mounting Type
Recessed
Mounting Part
Steel Spring
Electrical Info
Power
28W-37W
Power Factor
>0.95
Light Source
COB LED
Cabling
Halojen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour

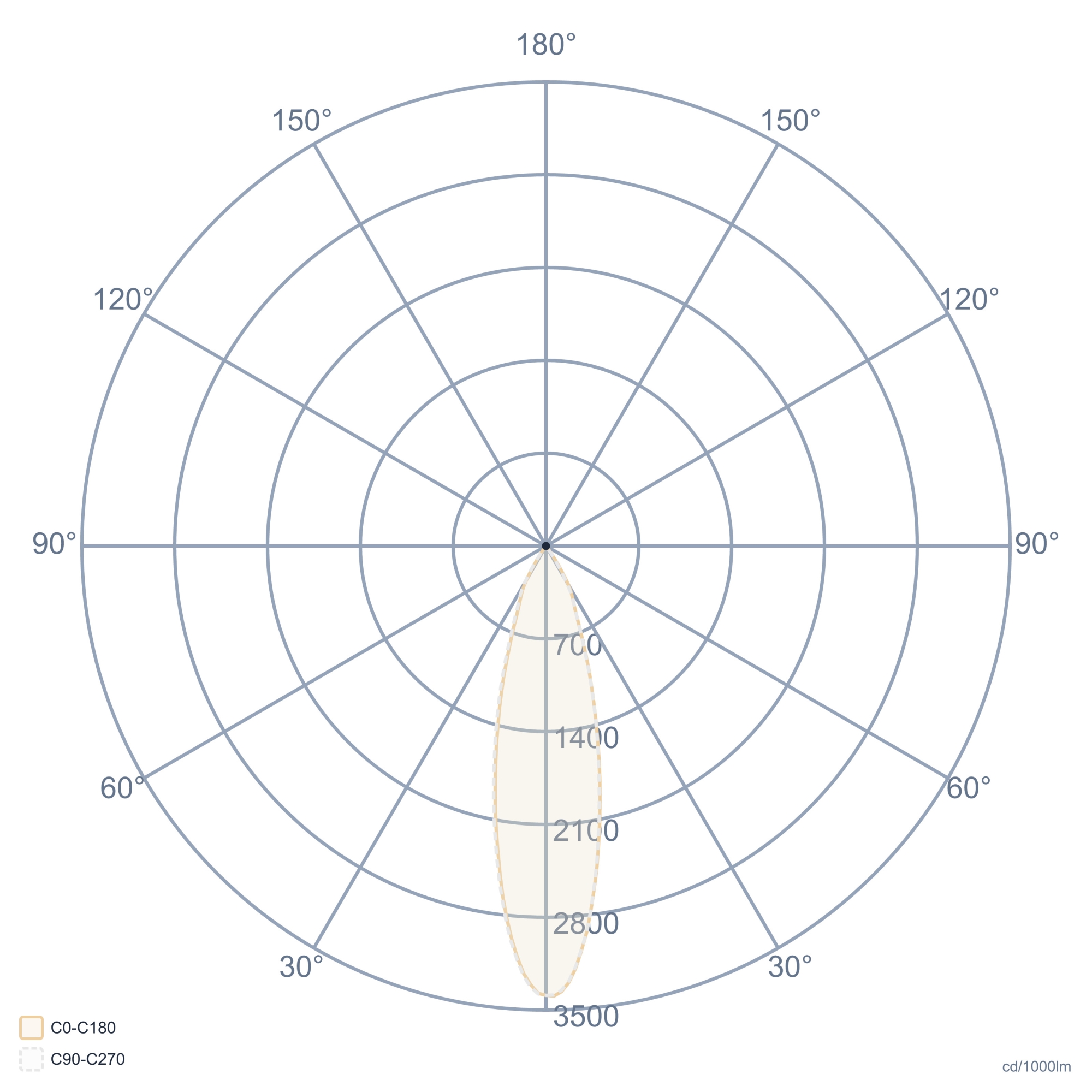

Lighting Technology
Light Output Angle
30° - 42°
UGR Value
UGR ≤ 19
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmAngleCCTØD x H (mm)Cut-out dimensions (mm)KgTechnical PagePhotometric File
