Indoor Lighting / WaterproofDrax-A Batwing
BACK
| Housing | Extruded Aluminum Profile |
| Side Cover | PC Injection + Silicone Gasket |
| Diffuser | Batwing Lens + PC Opal |
| Paint | Anodized Coating |
| Optics | High Efficiency Batwing Lens |

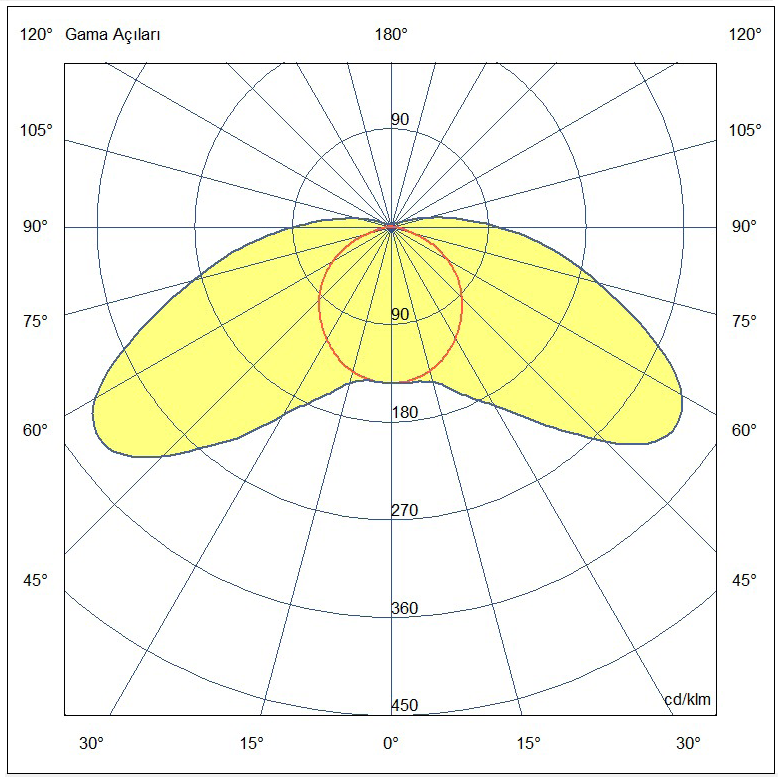

| Light Output Angle | 165°x130° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |
| Order Code | W | Lm | Angle | CCT | CRI | L (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 07112.06.30.021 | 21 | 2460 | 165°-130° | 3000K | Ra>80 | 580 | 0,5 | Technical Page | Ldt |
| 07112.06.40.022 | 21 | 2520 | 165°-130° | 4000K | Ra>80 | 580 | 0,5 | Technical Page | Ldt |
| 07112.08.30.030 | 32 | 3750 | 165°-130° | 3000K | Ra>80 | 860 | 0,7 | Technical Page | Ldt |
| 07112.08.40.031 | 32 | 3840 | 165°-130° | 4000K | Ra>80 | 860 | 0,7 | Technical Page | Ldt |
| 07112.12.30.042 | 43 | 5050 | 165°-130° | 3000K | Ra>80 | 1140 | 1,6 | Technical Page | Ldt |
| 07112.12.40.043 | 43 | 5160 | 165°-130° | 4000K | Ra>80 | 1140 | 1,6 | Technical Page | Ldt |
| 07112.14.30.063 | 54 | 6350 | 165°-130° | 3000K | Ra>80 | 1420 | 1,9 | Technical Page | Ldt |
| 07112.14.40.064 | 54 | 6480 | 165°-130° | 4000K | Ra>80 | 1420 | 1,9 | Technical Page | Ldt |
| IP Rating | IP65 |
| IK Rating | IK09 |
Prison
Factory
Ship
Humid Environment
Parking lot
