EPIC
05246
Four-Cell Reflector Square Spotlight

Epic is a square-shaped recessed lighting solution developed with micro-optics and low glare, focusing on visual comfort. Its deep-cell optical structure conceals the light source while providing homogeneous illumination with a wide 80° beam angle. With a UGR≤19 rating and Class II electrical protection, it offers comfortable and safe use.

It can be applied in various combinations with white or black micro-reflector options and white and black frame options. Its compact 120x120 mm dimensions and four-cell optical structure combine aesthetic appearance with high performance in offices, shops, hotels, educational buildings, and commercial projects.

Min-Max Watt:
10-20 [W]
Lumen:
970-2270 [lm]
Lumen / Watt:
105 [lm/W]
Technical Documents
General Information
Housing
Aluminum Injection
Frame
DKP Metal Sheet
Optics
Opal Diffuser
Insulation Class
Class II

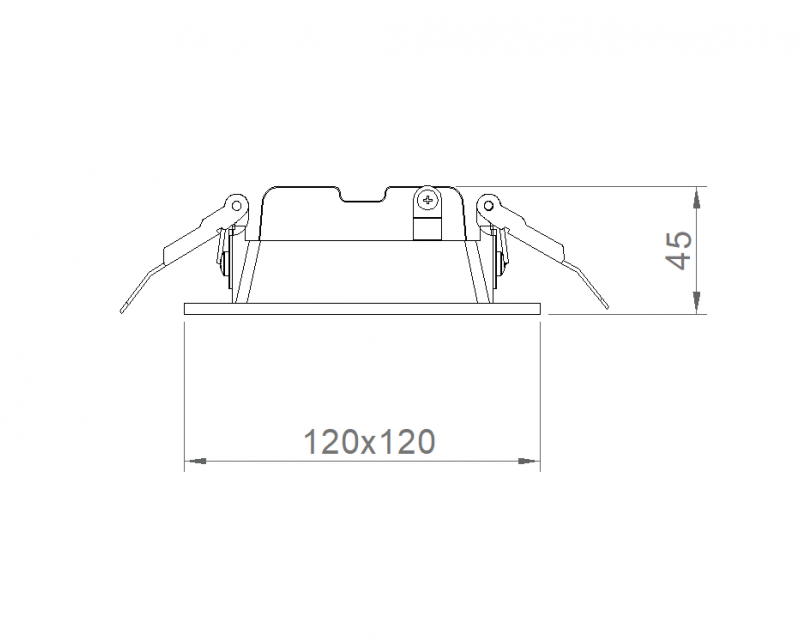

Product Dimensions [mm]
120(W) x 120(L) x 45(H)
Mounting Type
Recessed
Mounting Part
Steel Spring
Electrical Info
Power
10-20W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halojen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

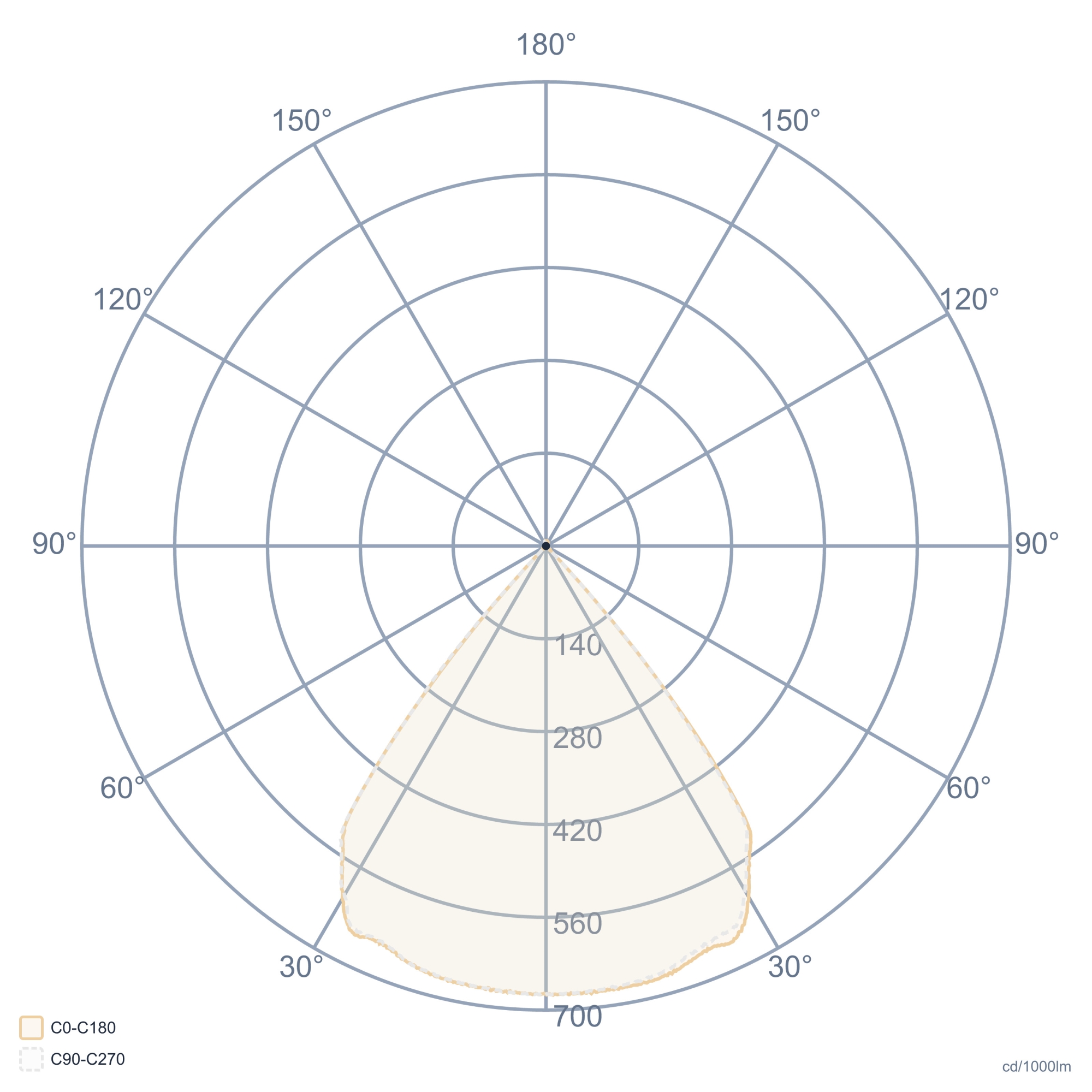

Light Output Angle
80°
UGR Value
UGR ≤ 19
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmAngleCCTWxLxH (mm)Ceiling Cutting (mm)KgReflector ColorTechnical PagePhotometric File
