Outdoor Lighting / Street LightingLasting-XL
BACK
| Housing | Aluminum Injection |
| Glass | Tempered Clear Glass |
| Optics | PMMA Optical Lens |
| Paint | Electrostatic Powder Paint |
| Light Output Angle | Asymmetrical |
| CRI | CRI ≥ 70 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |

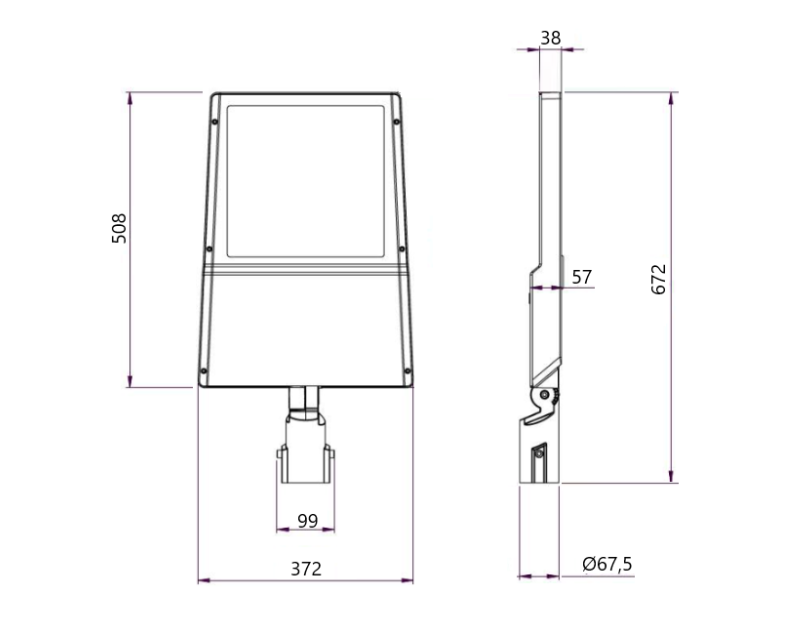

| Order Code | W | Lm | Productivity | CCT | WxLxH (mm) | ØD (Console-mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 09495.54.40.280 | 200 | 28000 | 140 lm/W | 4000 | 372x508x68 | Ø42-60 | 5.5 | Technical Page | Ldt |
| 09495.54.40.336 | 240 | 33600 | 140 lm/W | 4000 | 372x508x68 | Ø42-60 | 5.5 | Technical Page | Ldt |
| IP Rating | IP66 |
| IK Rating | IK08 |
Factory
Air Field
Humid Environment
Park and Garden
Tunnel
