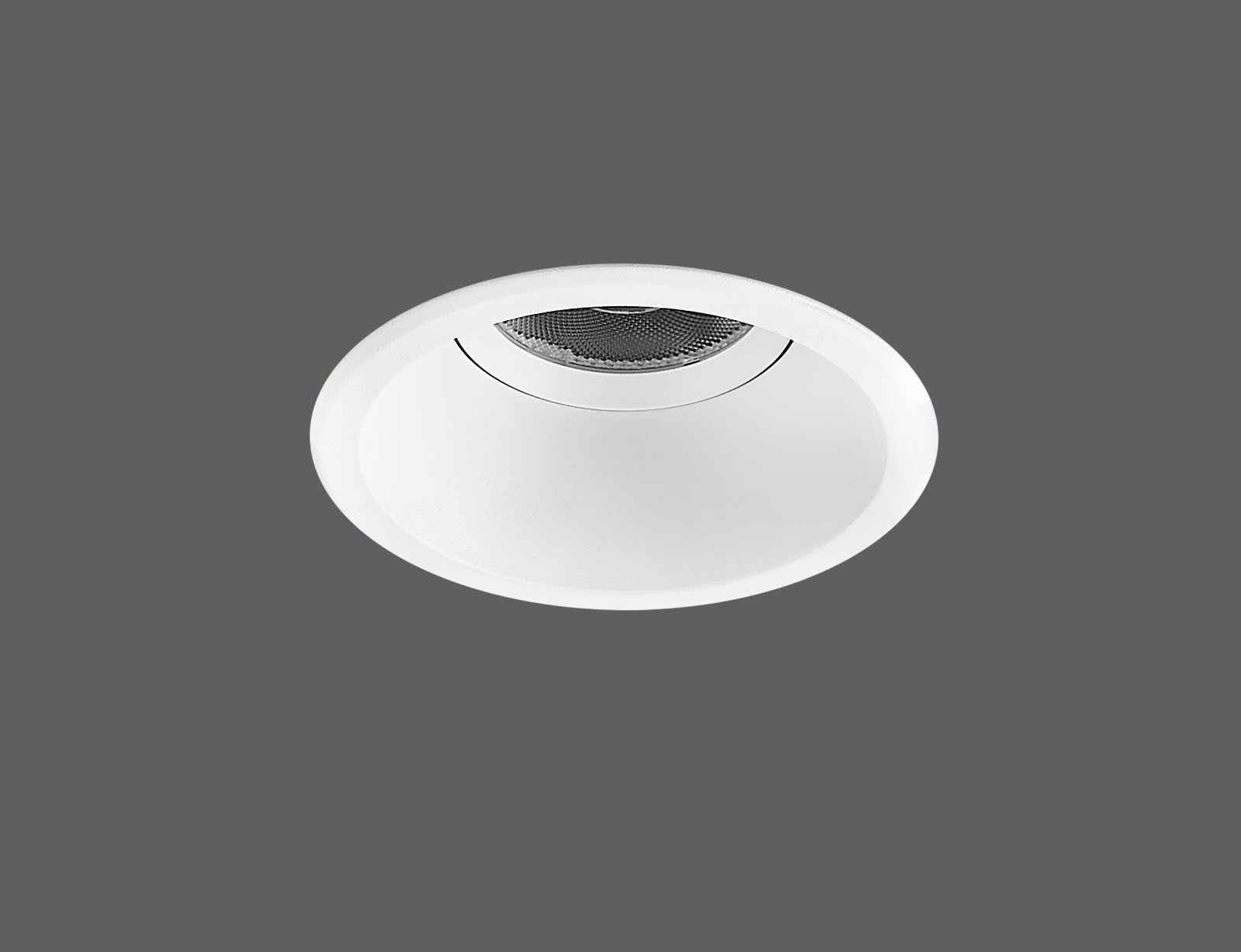

Indoor Lighting / Spot LightingLumi-085
BACK
| Housing | Aluminum Injection |
| Frame | Aluminum Injection |
| Reflector | Optical Lens |

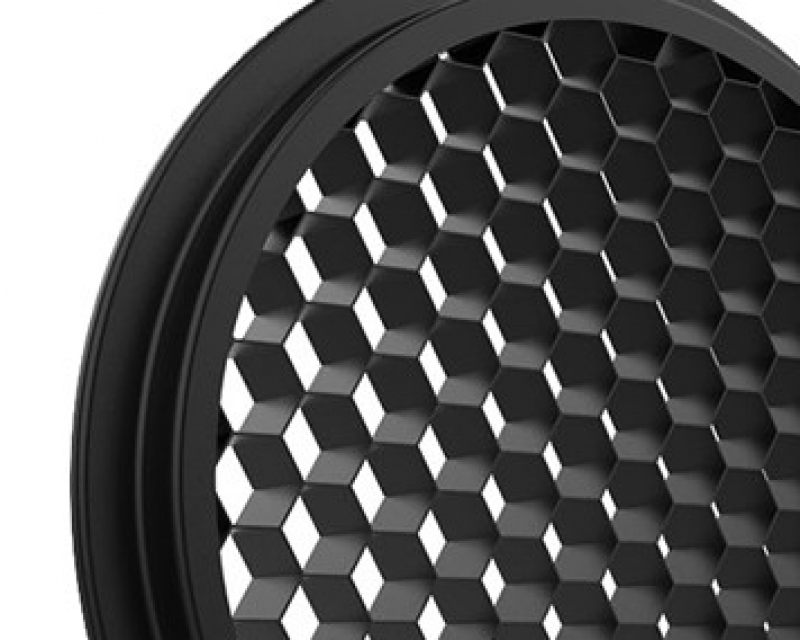

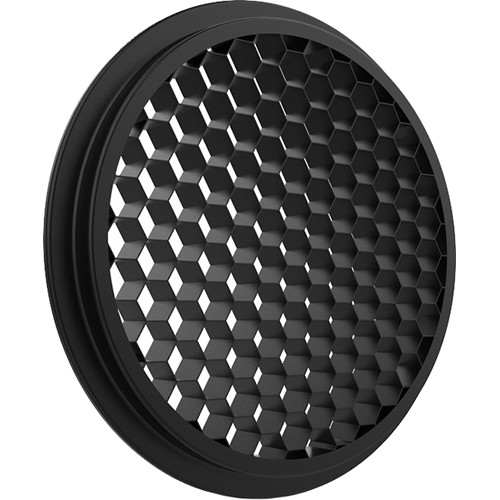

| Accessories | Honeycomb |

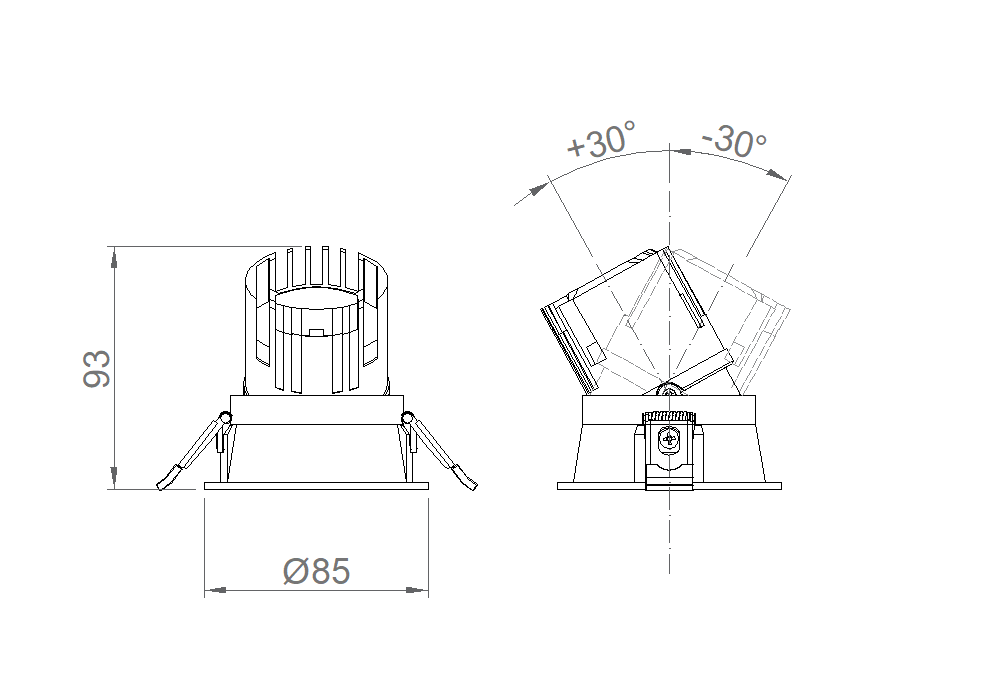

| Adjustable Body | +30° / -30° |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical |

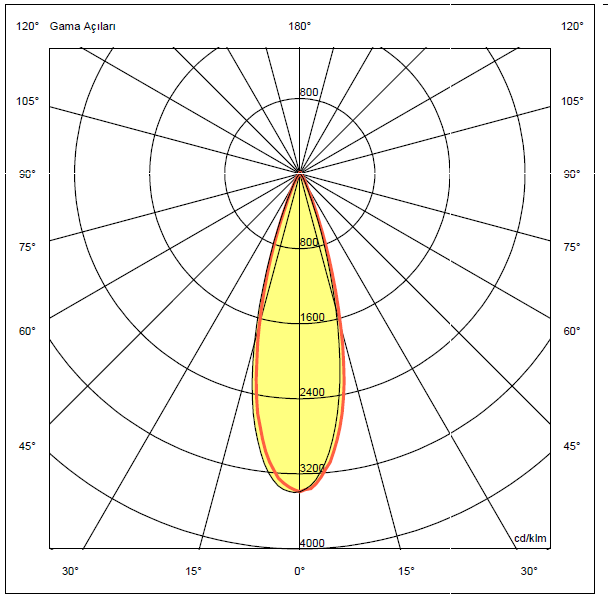

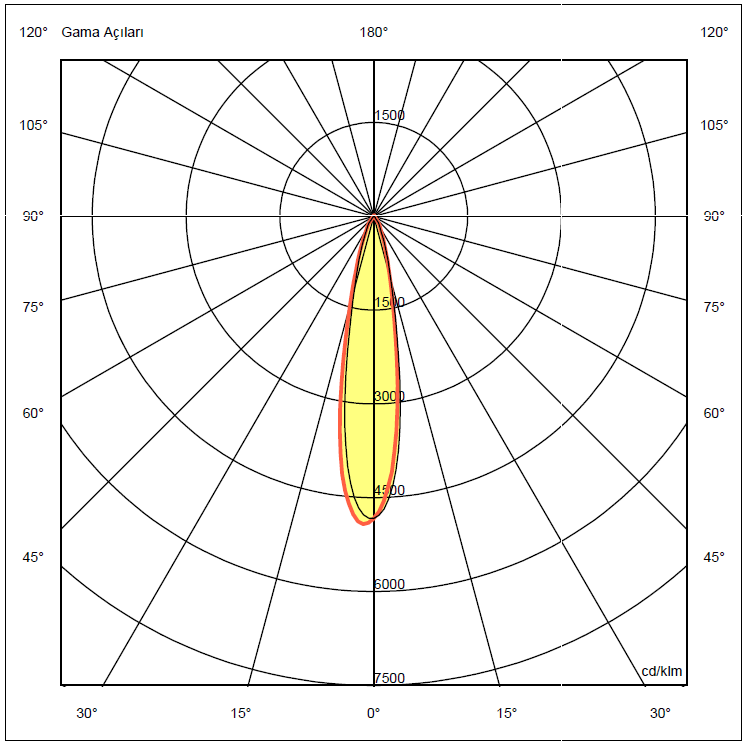

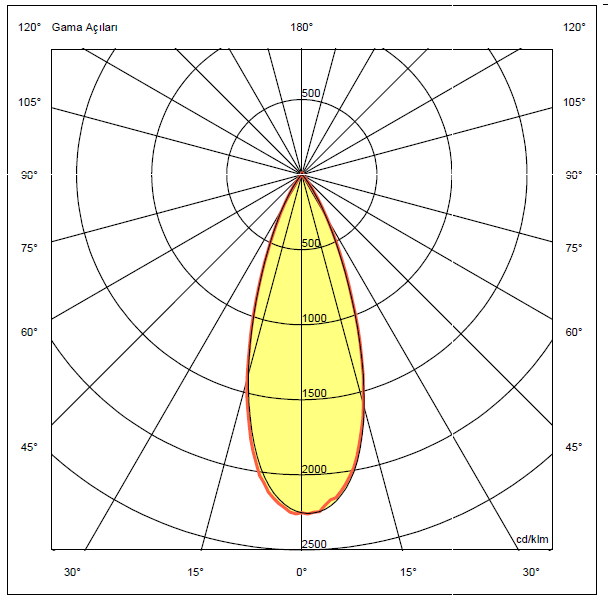

| Light Output Angle | 15°-24°-38° |
| UGR Value | UGR≤14 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
  |
| Order Code | W | Lm | Angle | CCT | ØDx(H) | Cut-out dimensions (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 05381.64.30.008 | 11 | 1060 | 15°/24°/38° | 3000 | Ø85x88mm | Ø75mm | 0,4 | Technical Page | |
| 05381.64.40.008 | 11 | 1140 | 15°/24°/38° | 4000 | Ø85x88mm | Ø75mm | 0,4 | Technical Page |
| IP Rating | IP44 |
| IK Rating | IK03 |
Shopping Mall
Cafe
Office
School
Restaurant
