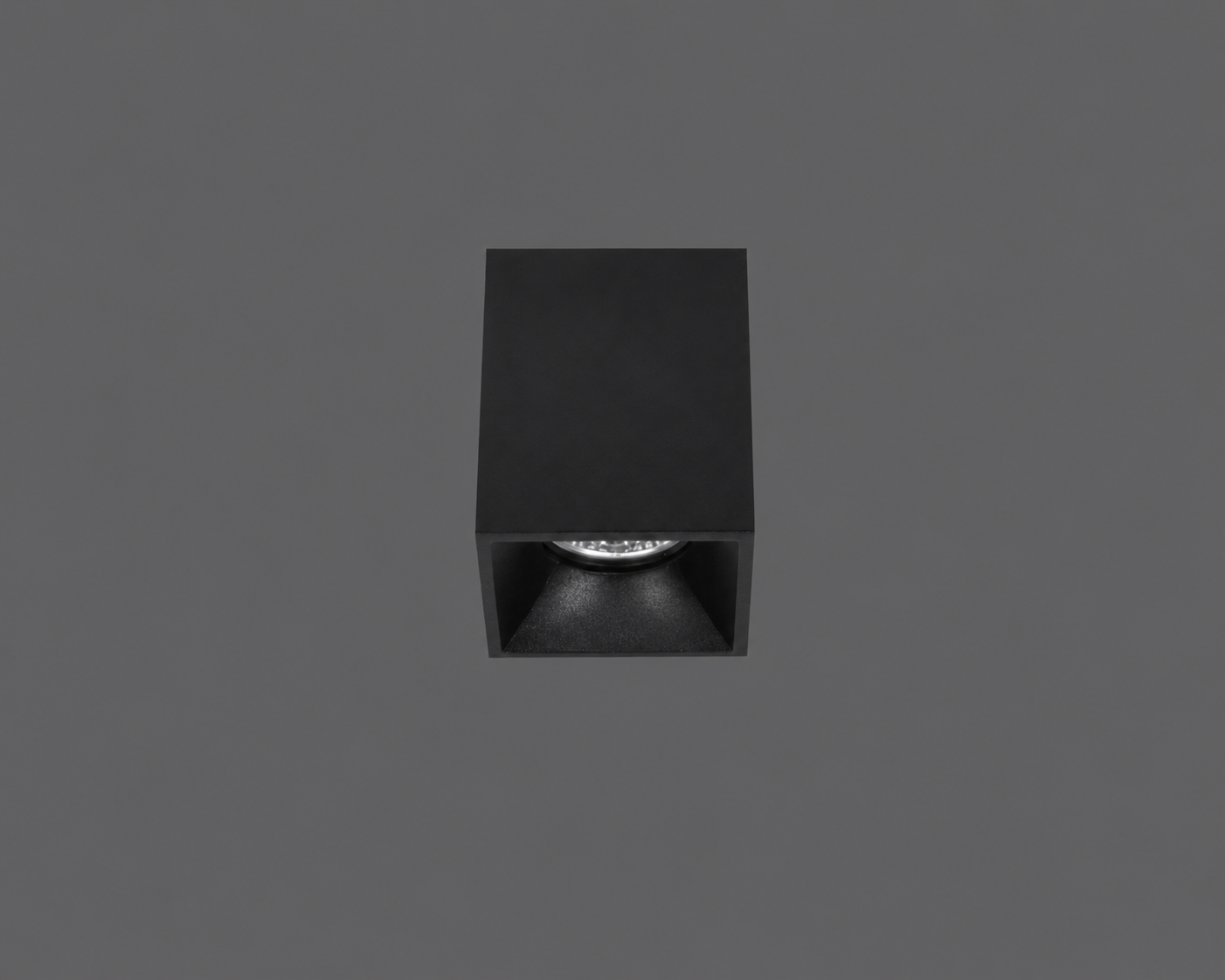

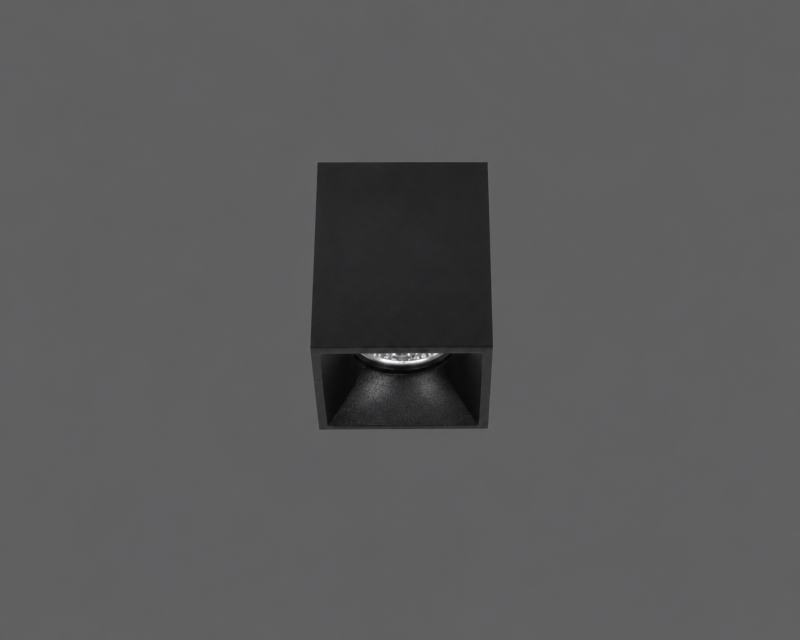

Indoor Lighting / Spot LightingDeep-K
BACK
| Housing | Extruded Aluminum Profile |
| Frame | Aluminum Injection |
| Reflector | Metallized Surface Optical |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical |

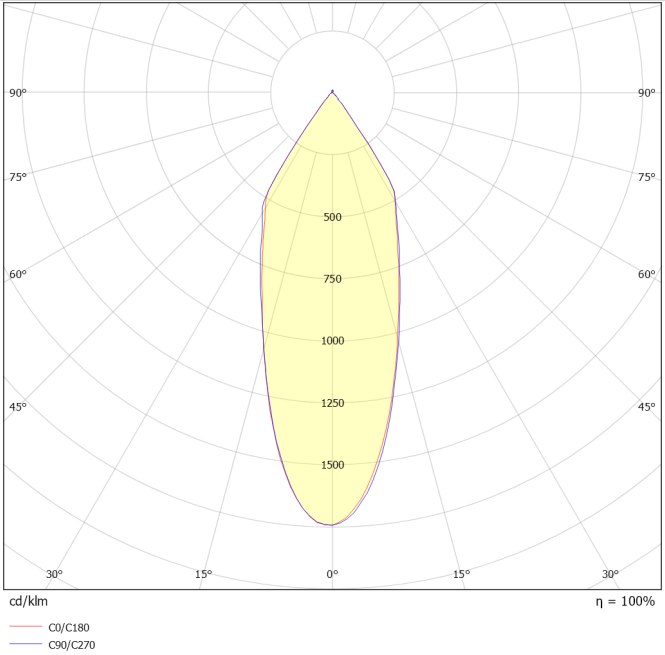

| Light Output Angle | 36° |
| UGR Value | UGR ≤ 19 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
   |
| Order Code | W | Lm | Angle | CRI | CCT | WxLxH (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 09110.88.30.009 | 10 | 700 | 36° | 3000 | Ra>80 | 80x80x100 | 0,4 | Technical Page | Ldt |
| 09110.88.40.009 | 10 | 750 | 36° | 4000 | Ra>80 | 80x80x100 | 0,4 | Technical Page | Ldt |
| IP Rating | IP20 |
| IK Rating | IK02 |
Shopping Mall
Cafe
Business Center
Office
Restaurant
