Indoor Lighting / Spot LightingDragon
BACK
| Housing | Aluminum Injection |
| Frame | Aluminum Injection |
| Reflector | Metalized Coated Reflector |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical |
| Light Output Angle | 24° |
| UGR Value | UGR ≤ 19 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
   |

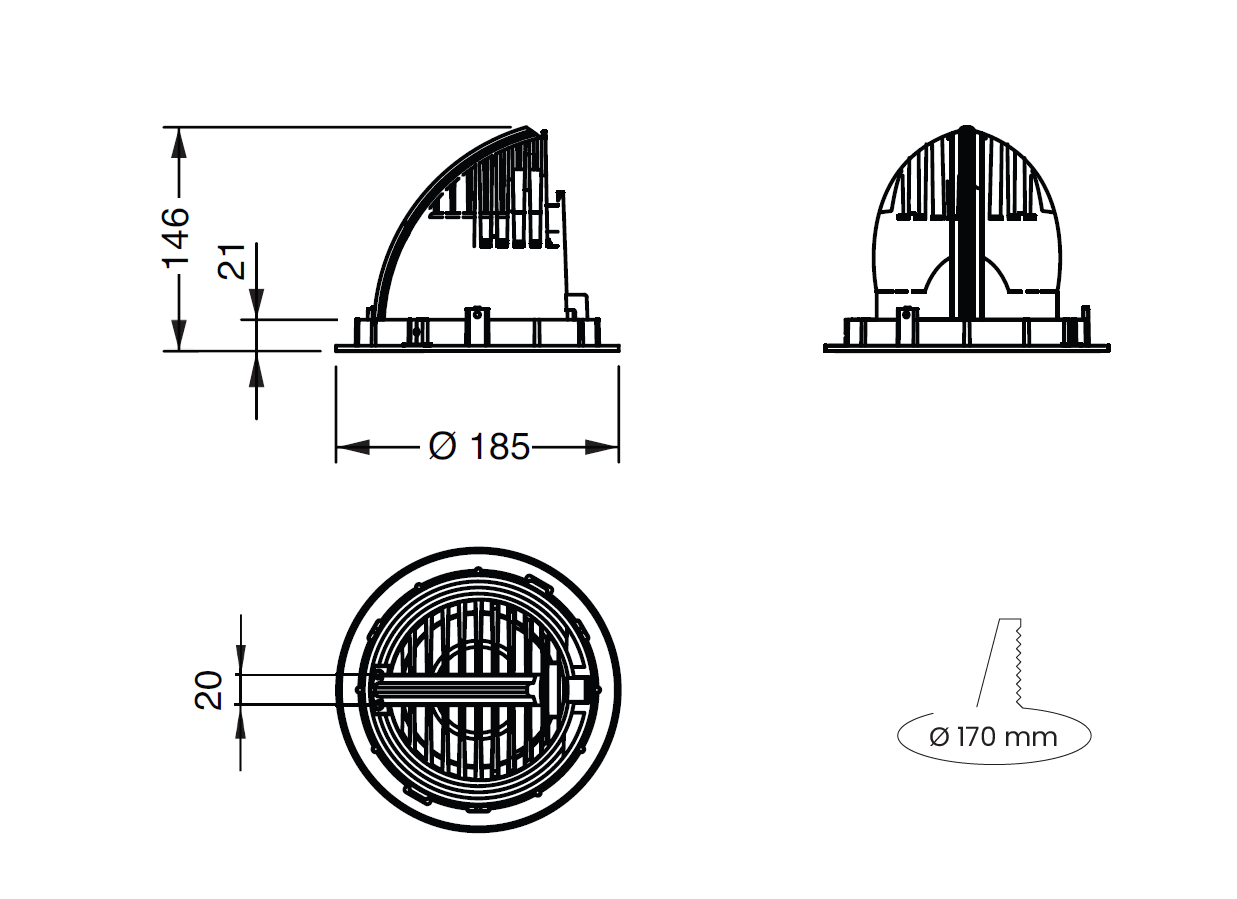

| Order Code | W | Lm | Angle | CCT | CRI | ØxH (mm) | Cut-out dimensions (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|---|
| 05310.16.30.032 | 28 | 3050 | 24º | 3000 | Ra>80-90 | Ø185x146 | Ø170 | 1,3 | Technical Page | Ldt |
| 05310.16.40.034 | 28 | 3230 | 24º | 4000 | Ra>80-90 | Ø185x146 | Ø170 | 1,3 | Technical Page | Ldt |
| 05310.16.30.030 | 30 | 3250 | 24º | 3000 | Ra>80-90 | Ø185x146 | Ø170 | 1,3 | Technical Page | Ldt |
| 05310.16.40.030 | 30 | 3450 | 24º | 4000 | Ra>80-90 | Ø185x146 | Ø170 | 1,3 | Technical Page | Ldt |
| 05310.16.30.041 | 37 | 3750 | 24º | 3000 | Ra>80-90 | Ø185x146 | Ø170 | 1,3 | Technical Page | Ldt |
| 05310.16.40.043 | 37 | 4000 | 24º | 4000 | Ra>80-90 | Ø185x146 | Ø170 | 1,3 | Technical Page | Ldt |
| IP Rating | IP40 |
| IK Rating | IK03 |
Hospital
Business Center
Office
School
Restaurant
