RUNNEL
72044
Homogeneous Lighting on Continuous Lines

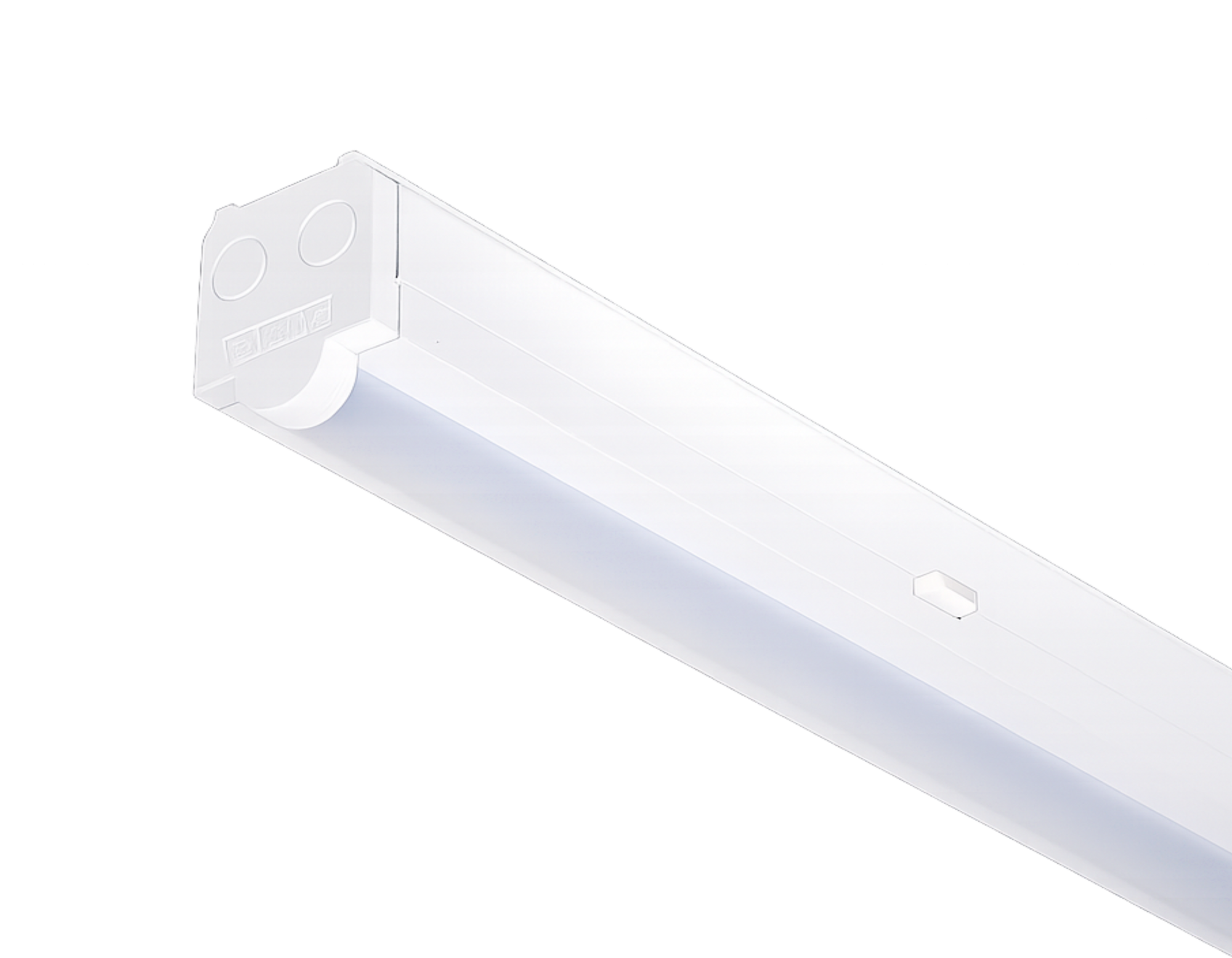

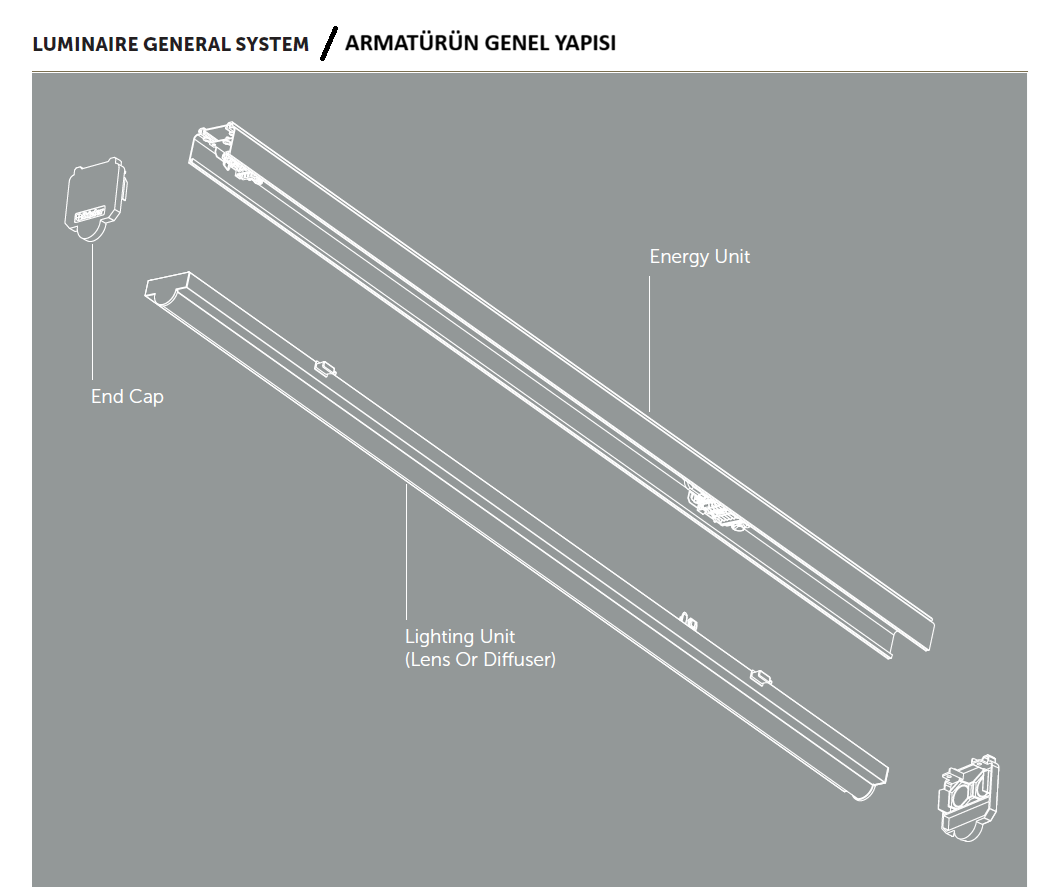

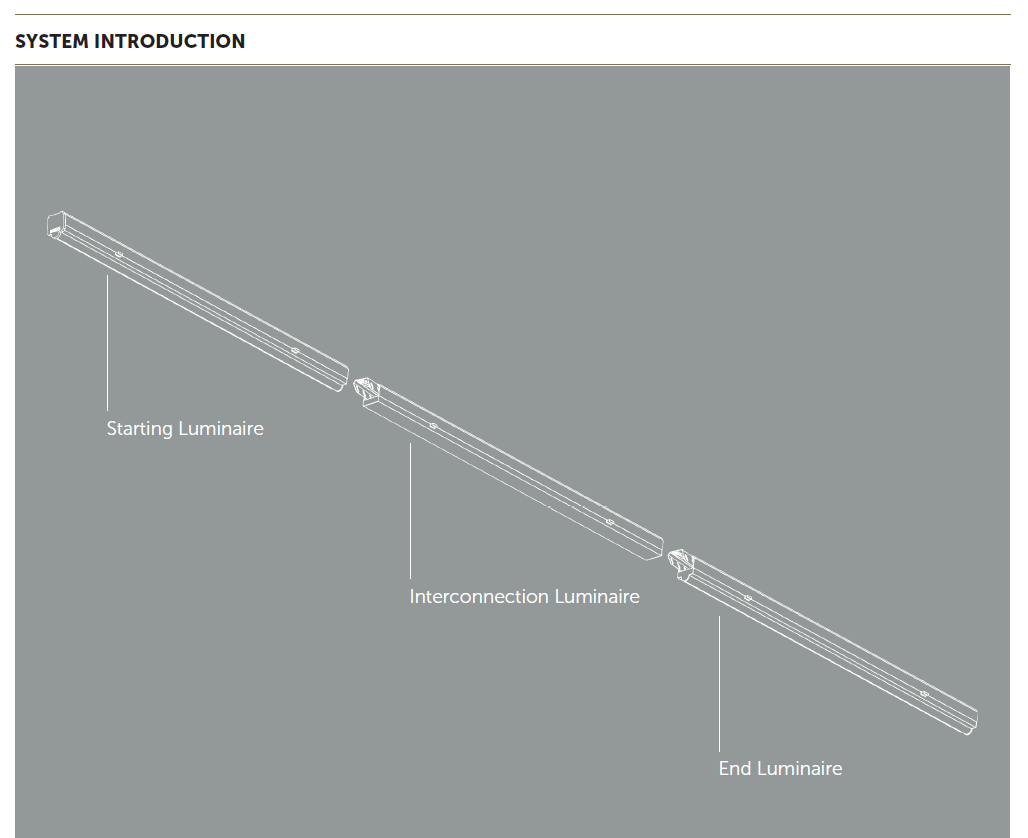

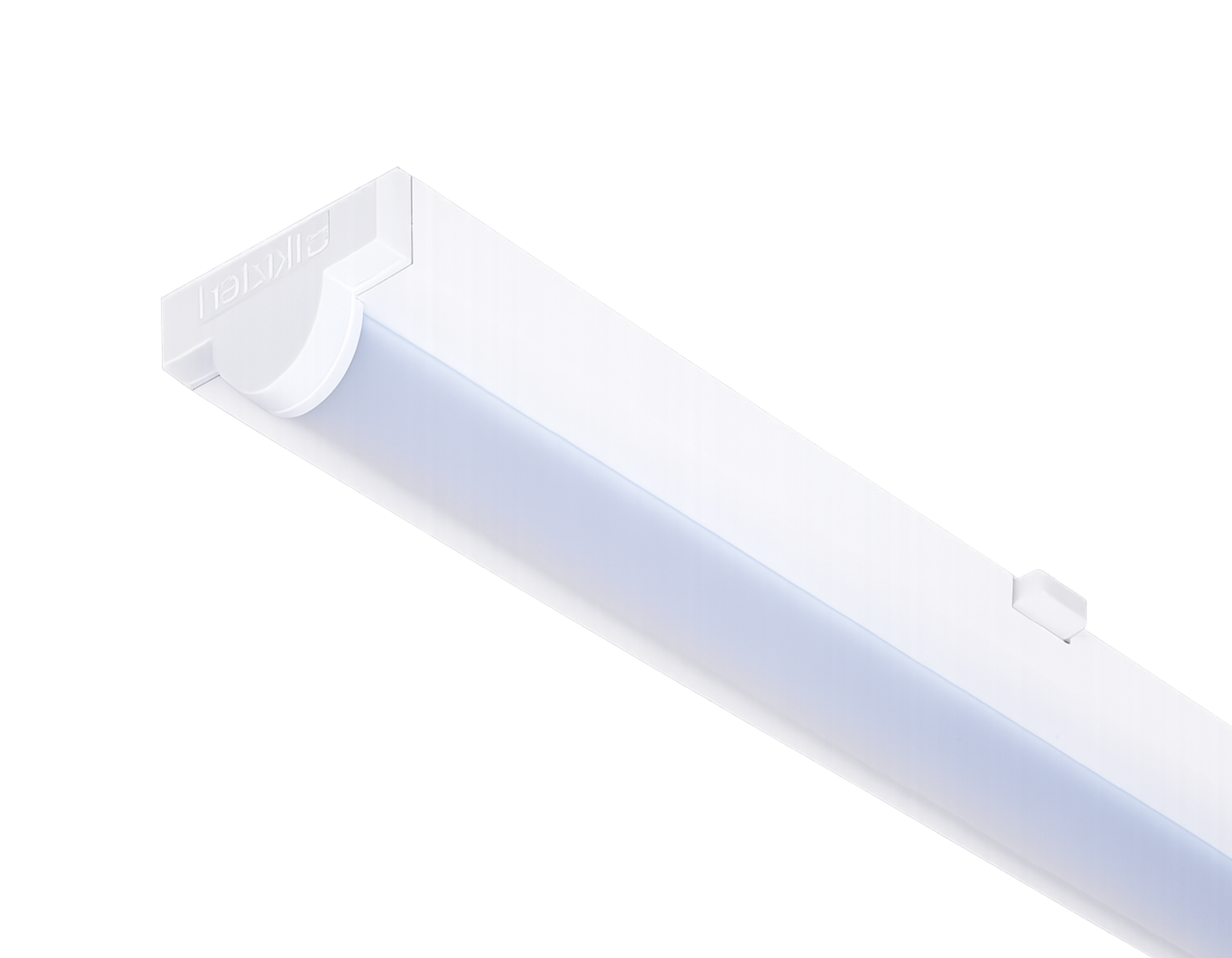

The Runnel Lighting Unit is an opal diffuser lighting module developed for continuous lighting (trunking) systems. Working with trunking infrastructure where energy is transmitted along the line from a single supply point, it offers the advantages of quick installation, low cabling costs, and easy maintenance. Thanks to its modular structure, the lighting units can be easily placed or replaced where needed.

With its 120° symmetrical light distribution and high light transmittance opal polycarbonate diffuser, it provides homogeneous and comfortable general lighting. It offers a reliable and long-lasting solution by adapting to continuous lighting infrastructure in warehouses, logistics centers, production facilities, supermarkets, and large commercial areas.

Min-Max Watt:
35-53 [W]
Lumen:
4500-6700 [lm]
Lumen / Watt:
127 [lm/W]
Technical Documents
General Information
Housing
Electrostatic Powder Coated Aluminum
Optics
Opal Diffuser
Side Cover
PC Injection
Insulation Class
Class I

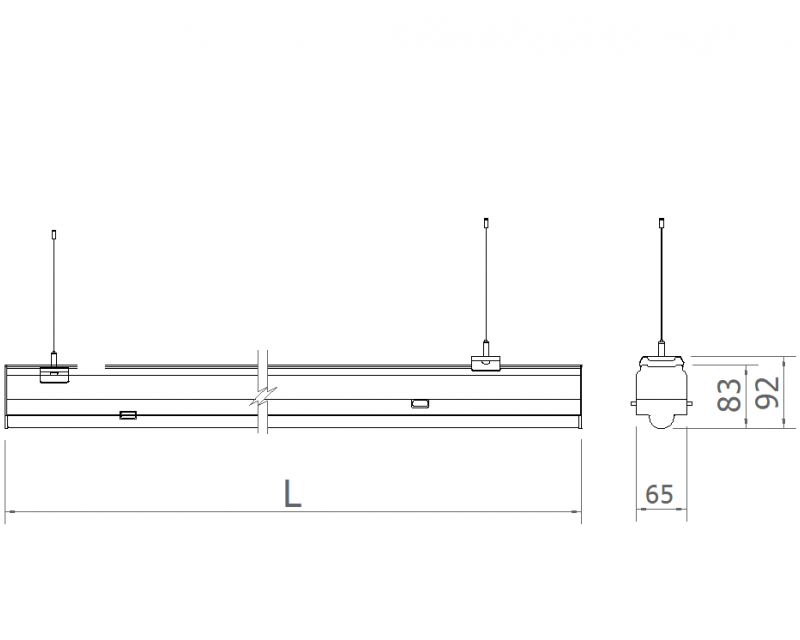

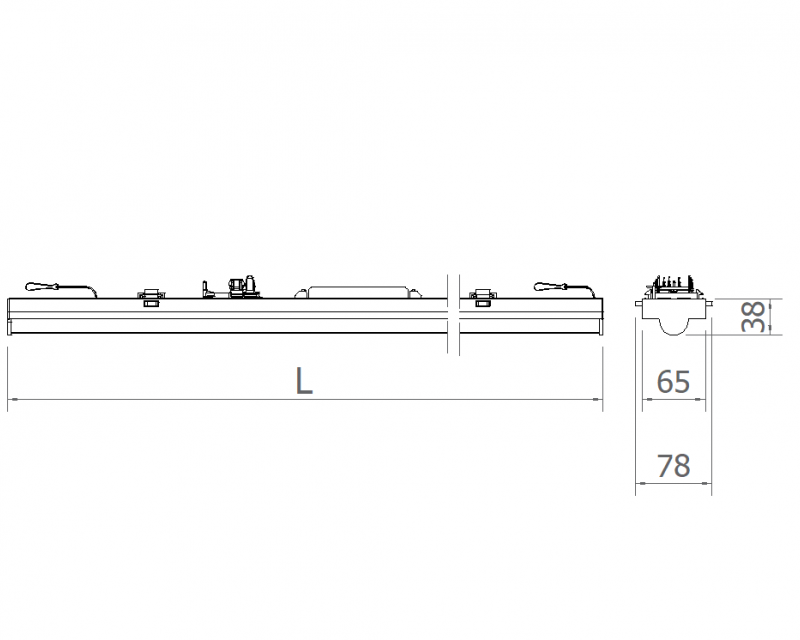

Product Dimensions [mm]
65(W)x83(H)
Electrical Info
Power
35-53W
Power Factor
>0.95
Cabling
Halogen-Free
Input Voltage
220 -240V AC / 50- 60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +40°C
LED Lifetime L70
>100.000 Hours
Lighting Technology

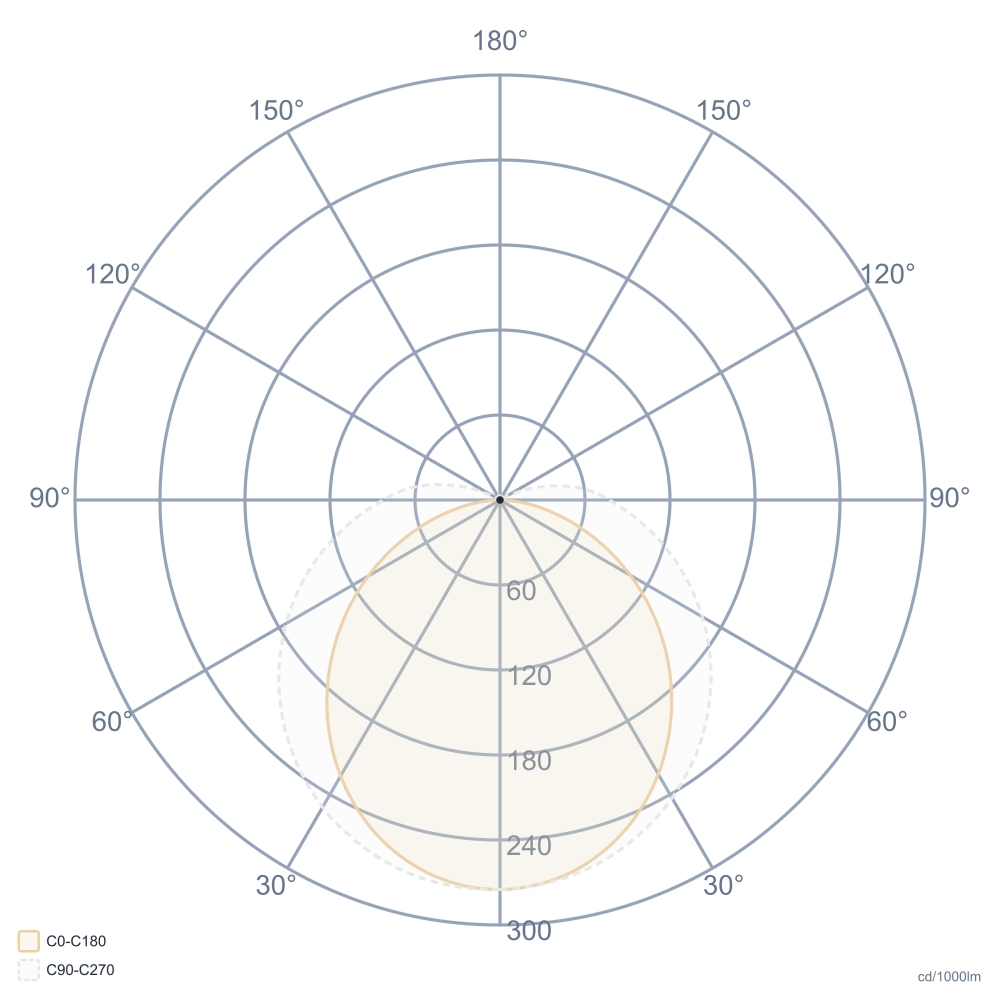

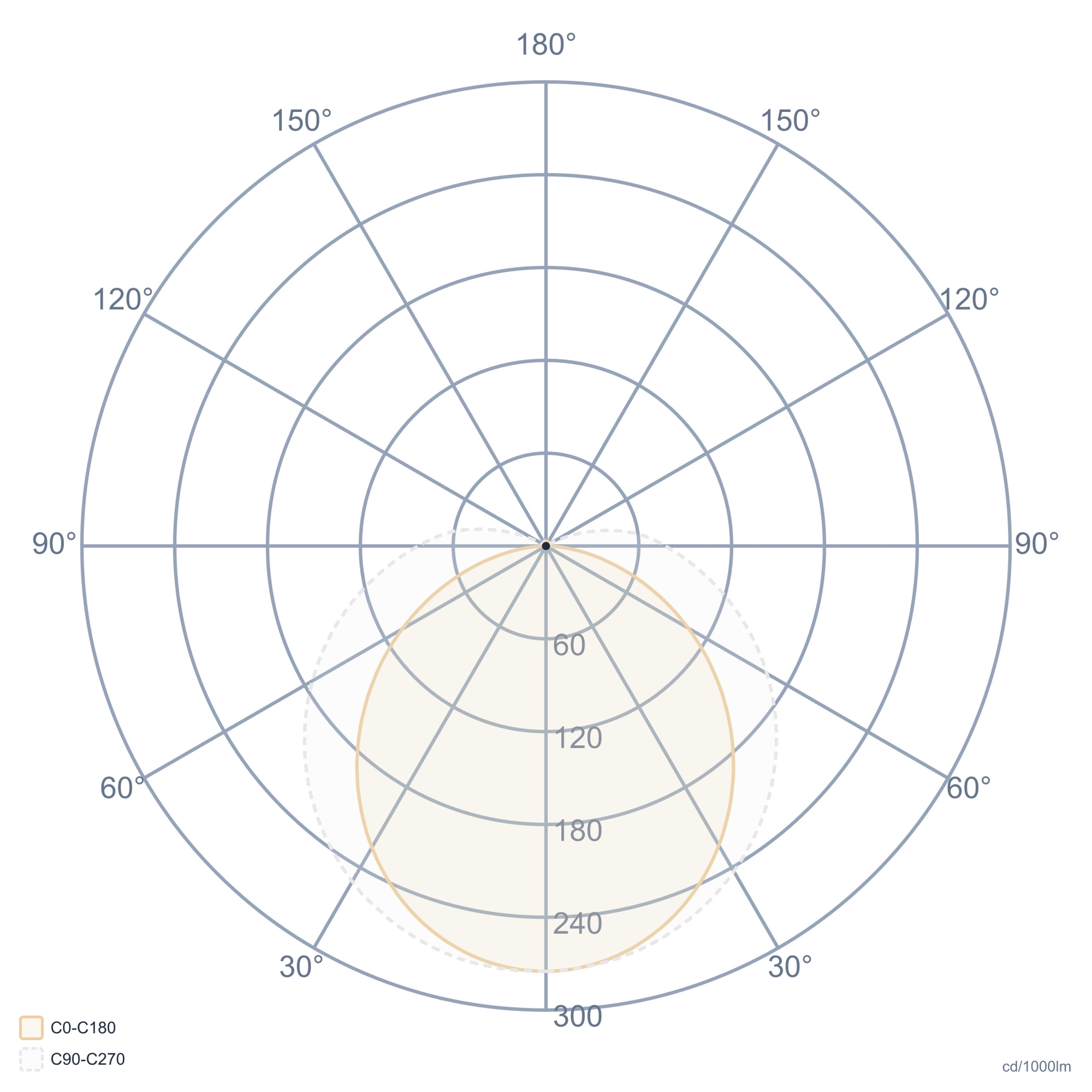

Light Output Angle
120°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Kit (1h/3h)

Order CodeWLmCCTL (mm)KgTechnical PagePhotometric File
