LINEAR
07201
Uninterrupted Power - Flexible Lighting

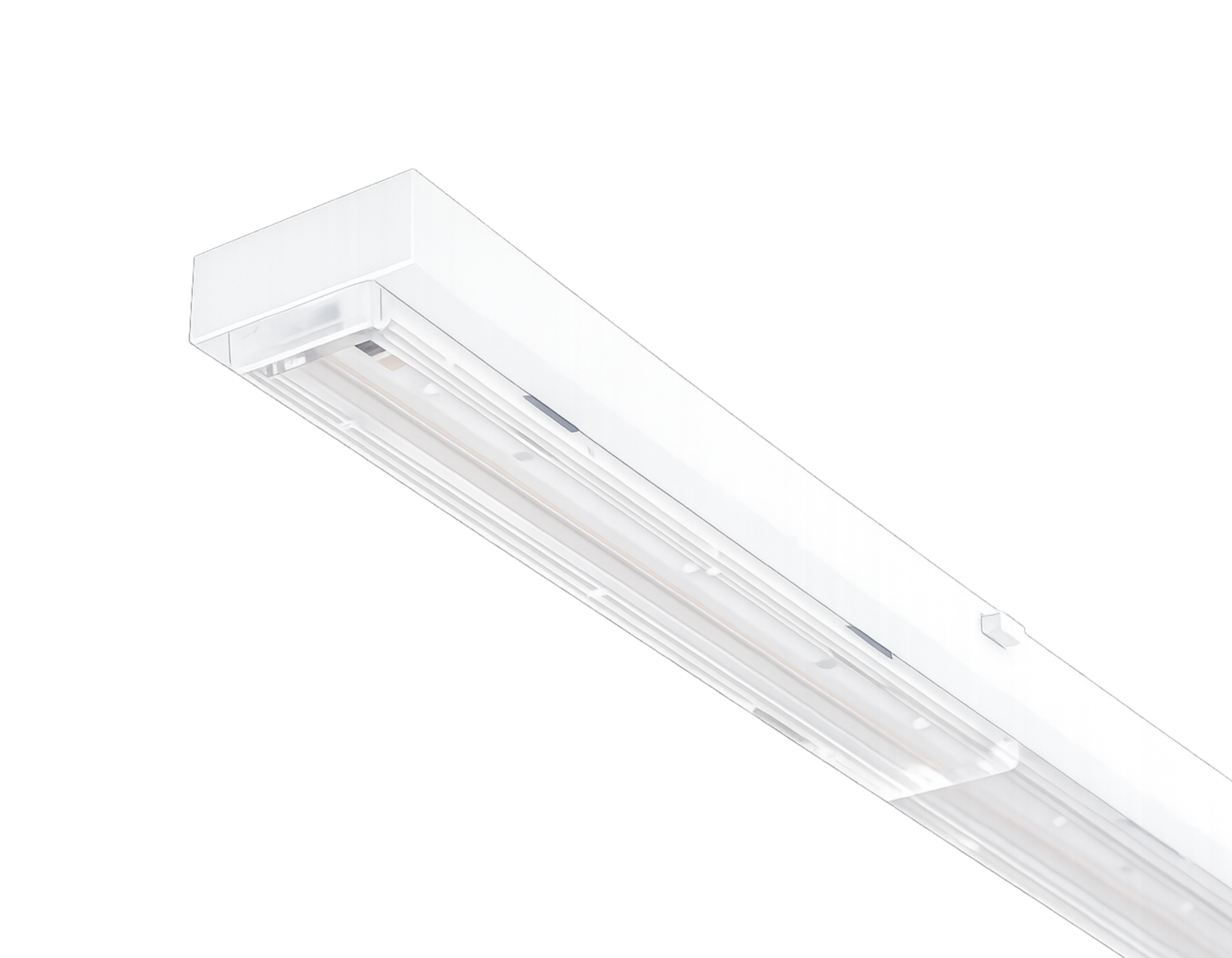

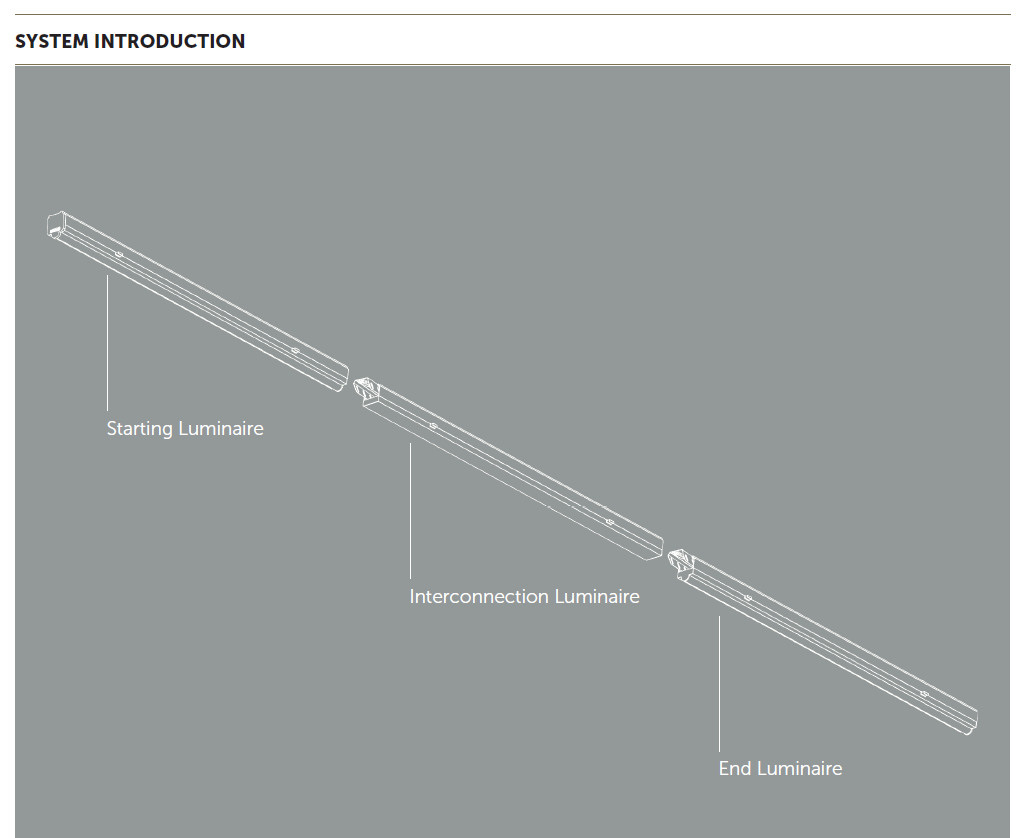

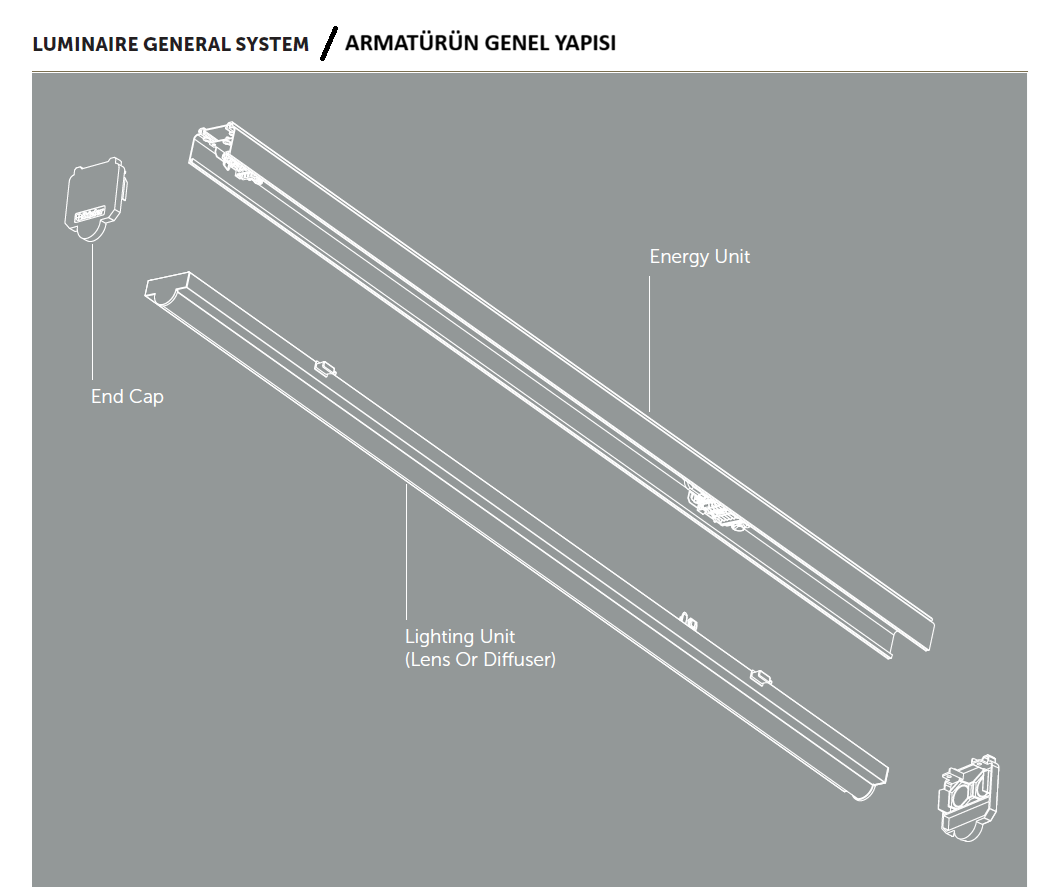

The Linear Lighting Unit is a lighting module developed for continuous lighting systems. By transmitting energy from a single supply point along the line, it offers the advantages of quick installation, low cabling costs, and easy maintenance in long lines. Thanks to its modular structure, the lighting units can be easily placed or replaced where needed.

It adapts to different applications with 90° symmetrical, 60x90° symmetrical, 25° asymmetrical, and double 25° asymmetrical light distribution options. It offers energy-efficient performance with system efficiency up to 144 lm/W. It provides quick installation and long-lasting use by creating a continuous lighting infrastructure in warehouses, logistics centers, chain stores, and large industrial areas.

Min-Max Watt:
50-76 [W]
Lumen:
7250-10950 [lm]
Lumen / Watt:
144 [lm/W]
Technical Documents
General Information
Housing
Electrostatic Powder Coated Aluminum
Optics
Optical Lens
Side Cover
PC Injection
Insulation Class
Class I

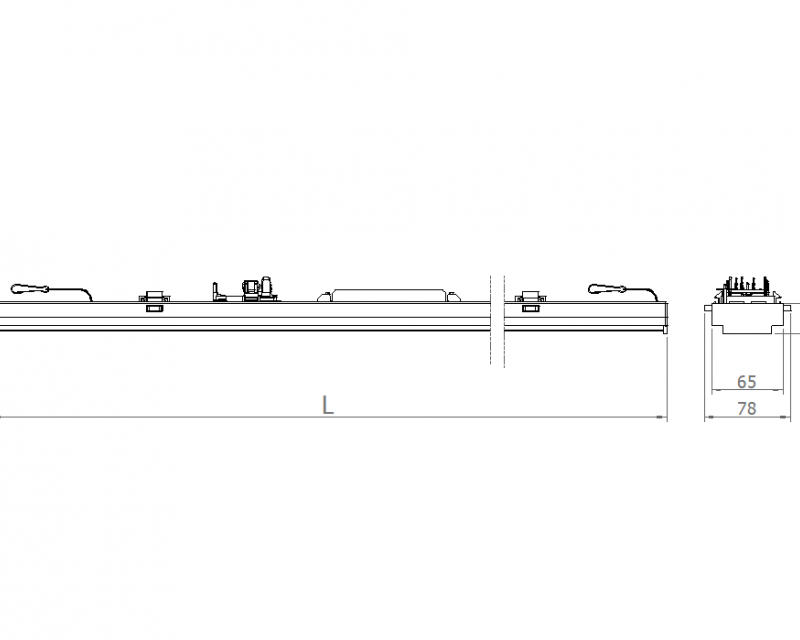

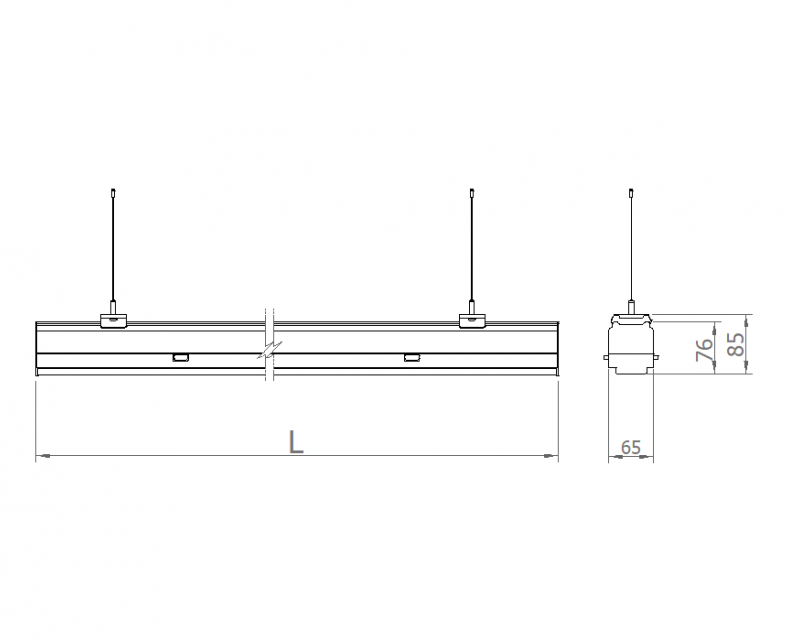

Product Dimensions [mm]
65(W)x32(H)
Electrical Info
Power
50-76W
Power Factor
>0.95
Cabling
Halojen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20 °C/+40 °C
LED Lifetime L70
>100.000 Hours
Lighting Technology
Light Output Angle

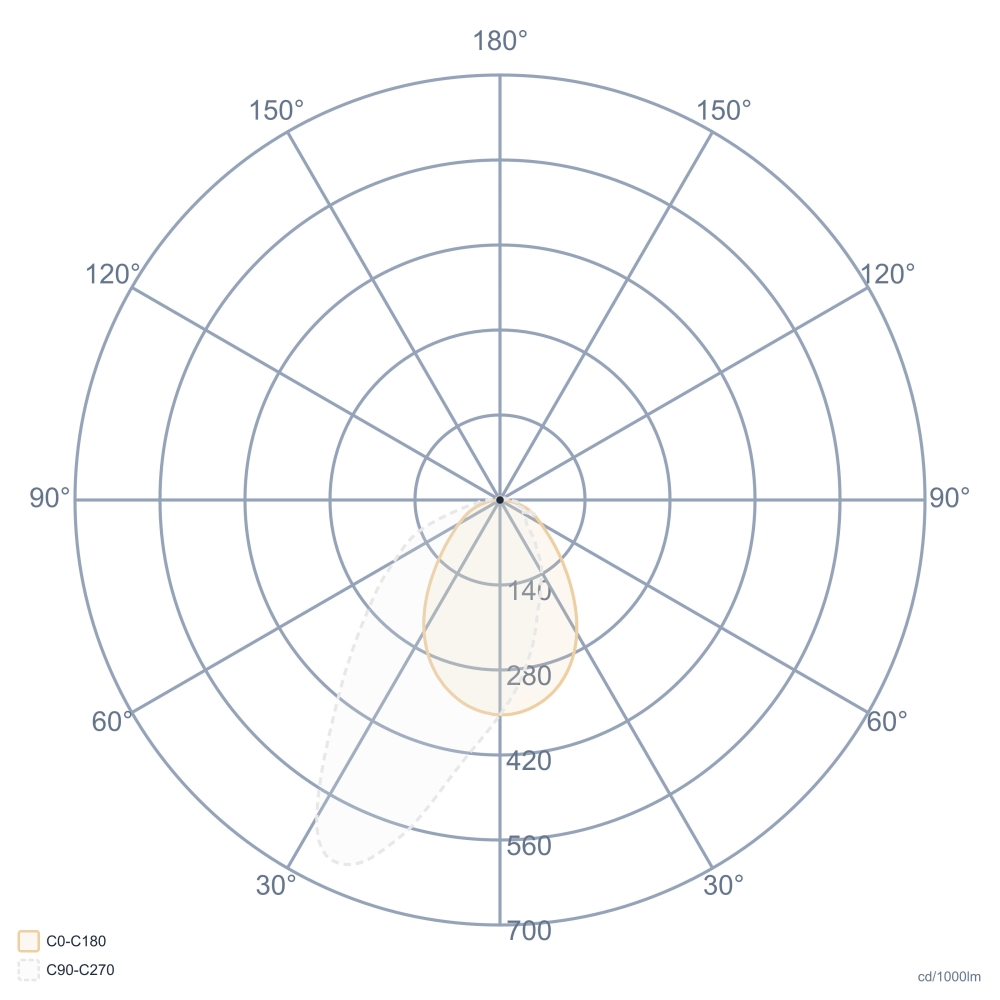

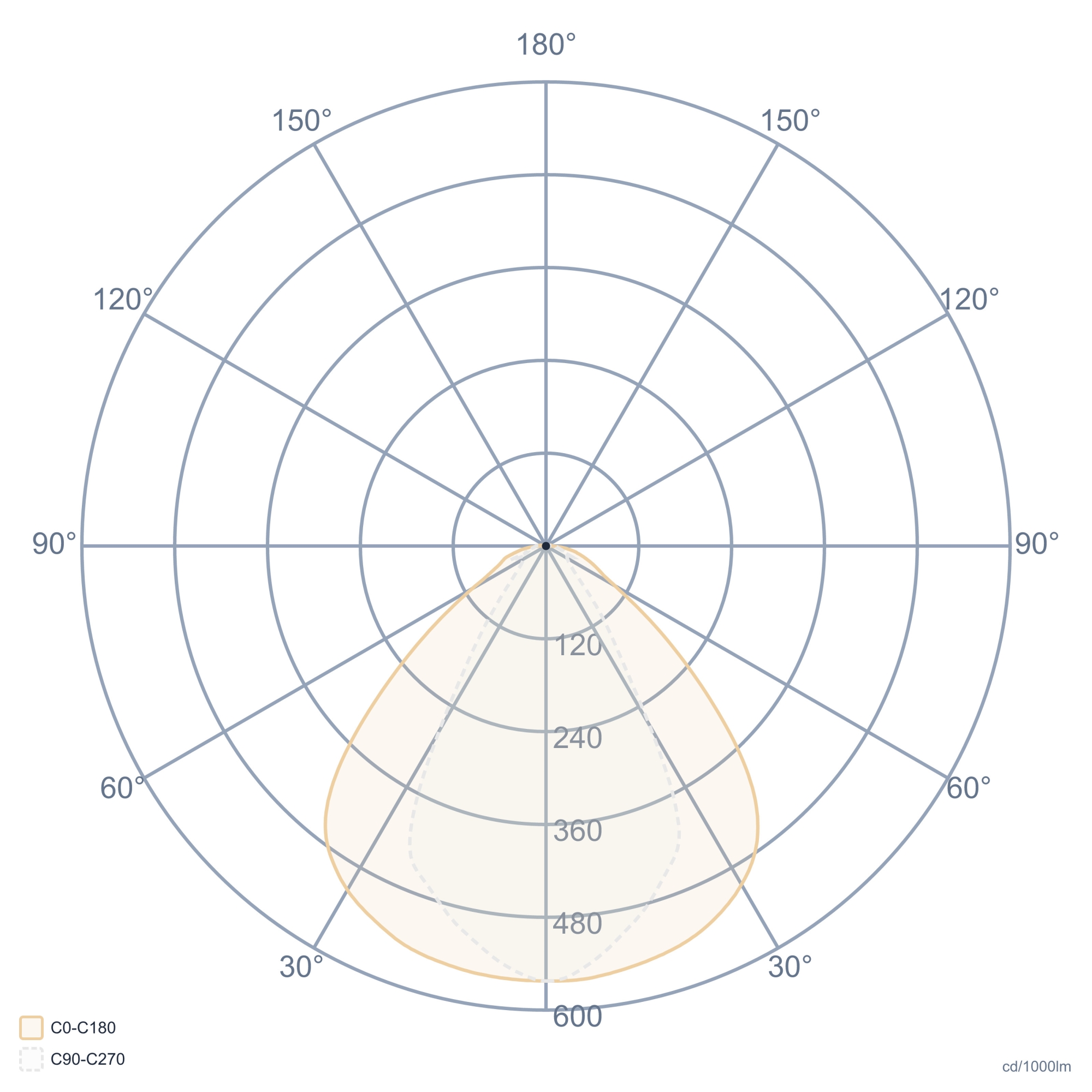

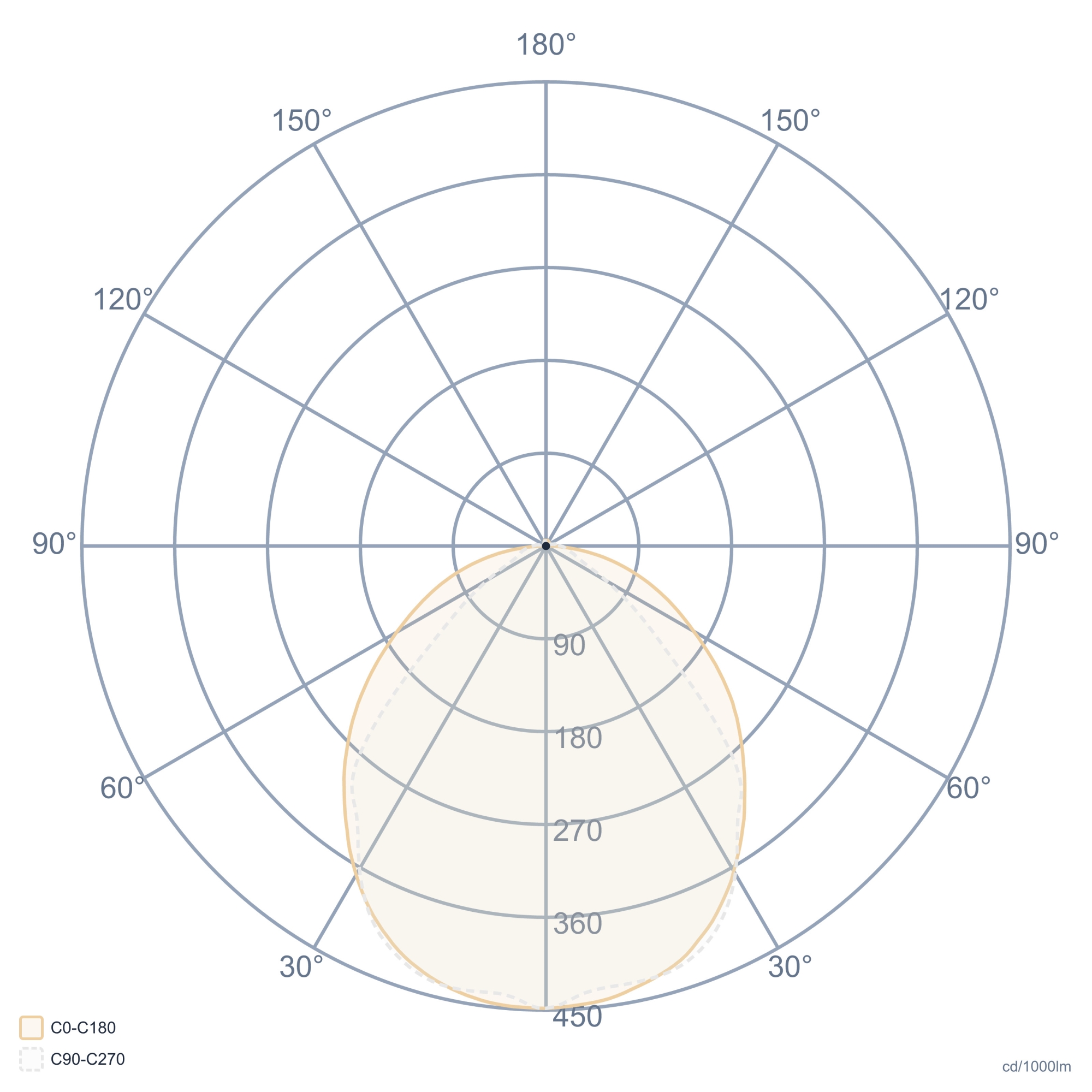

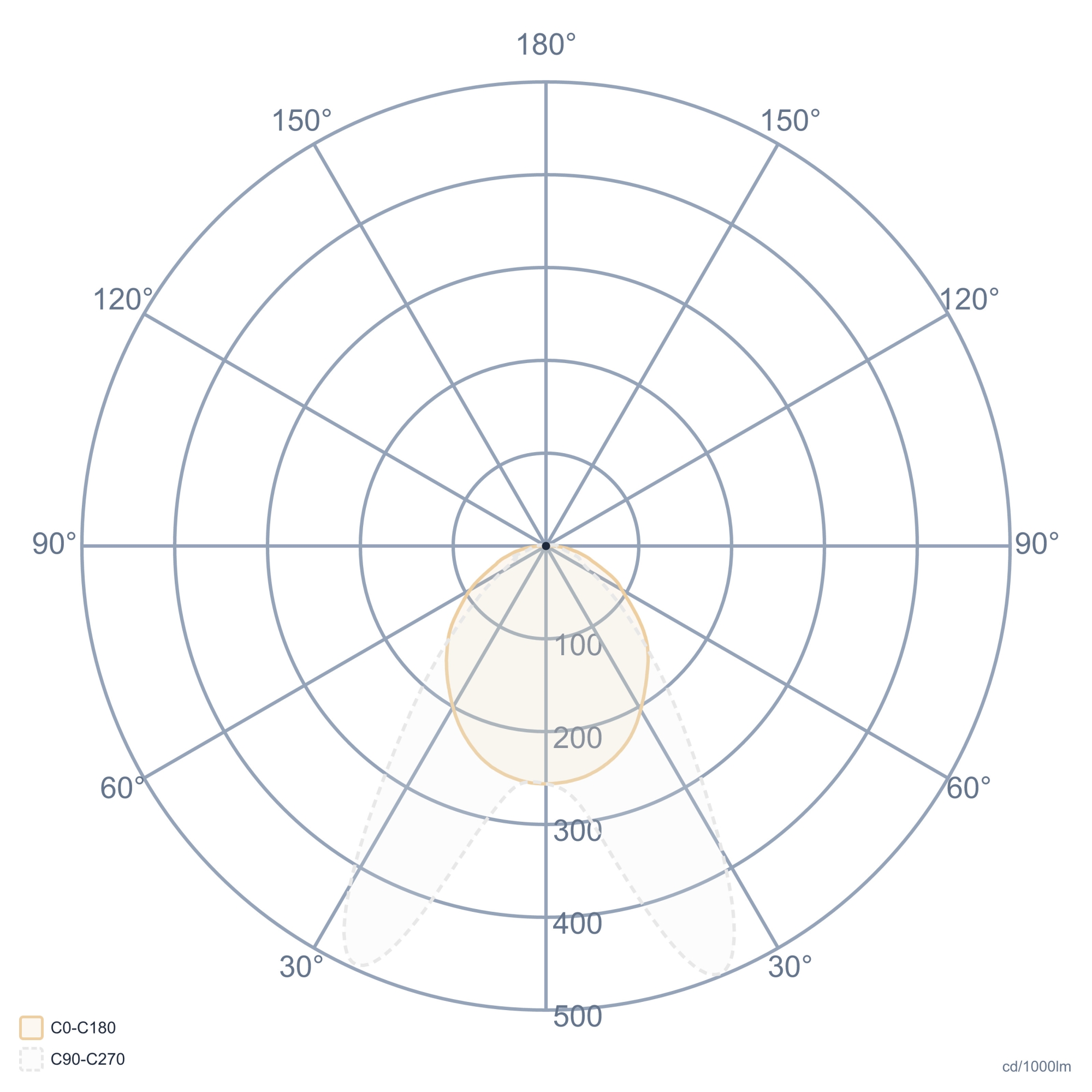

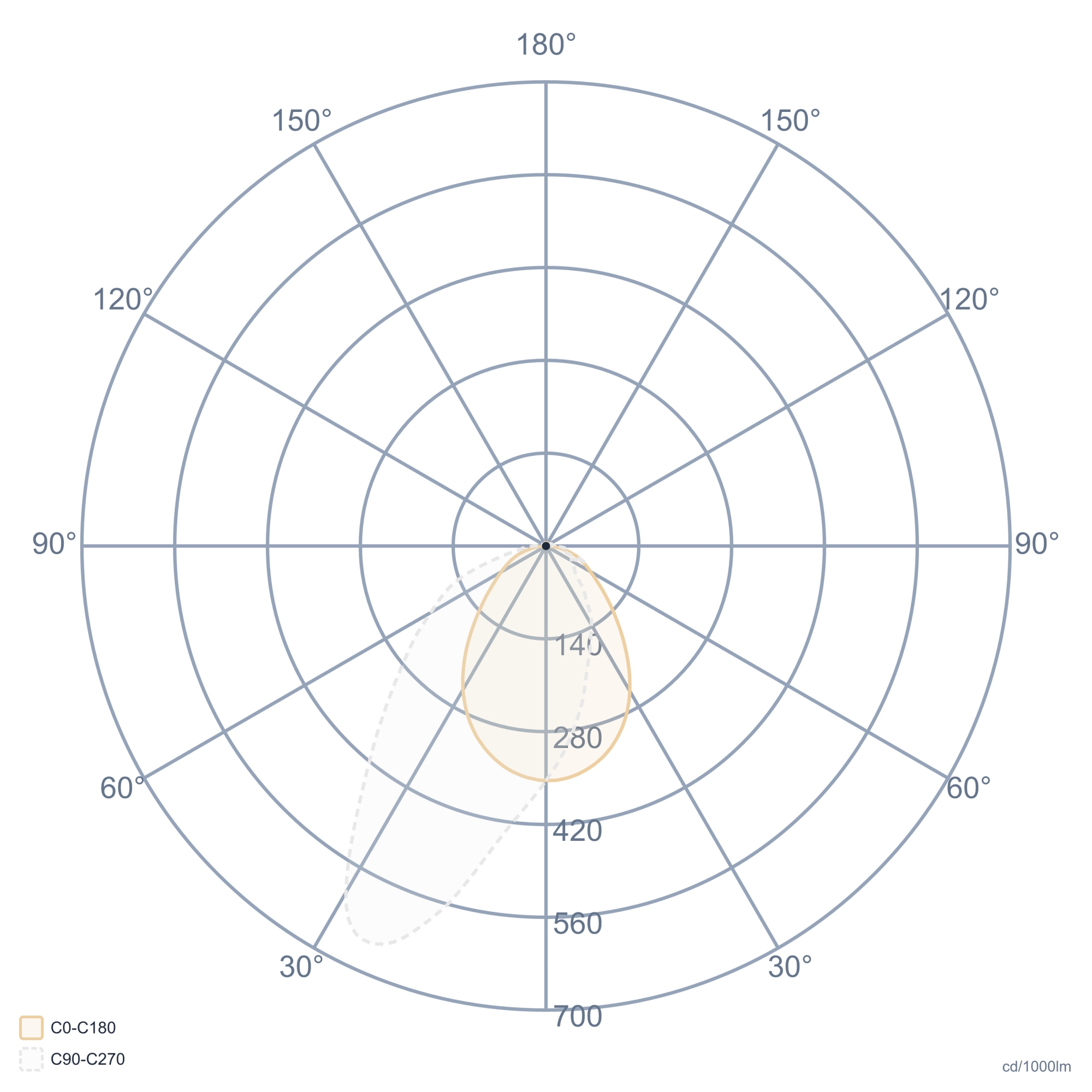

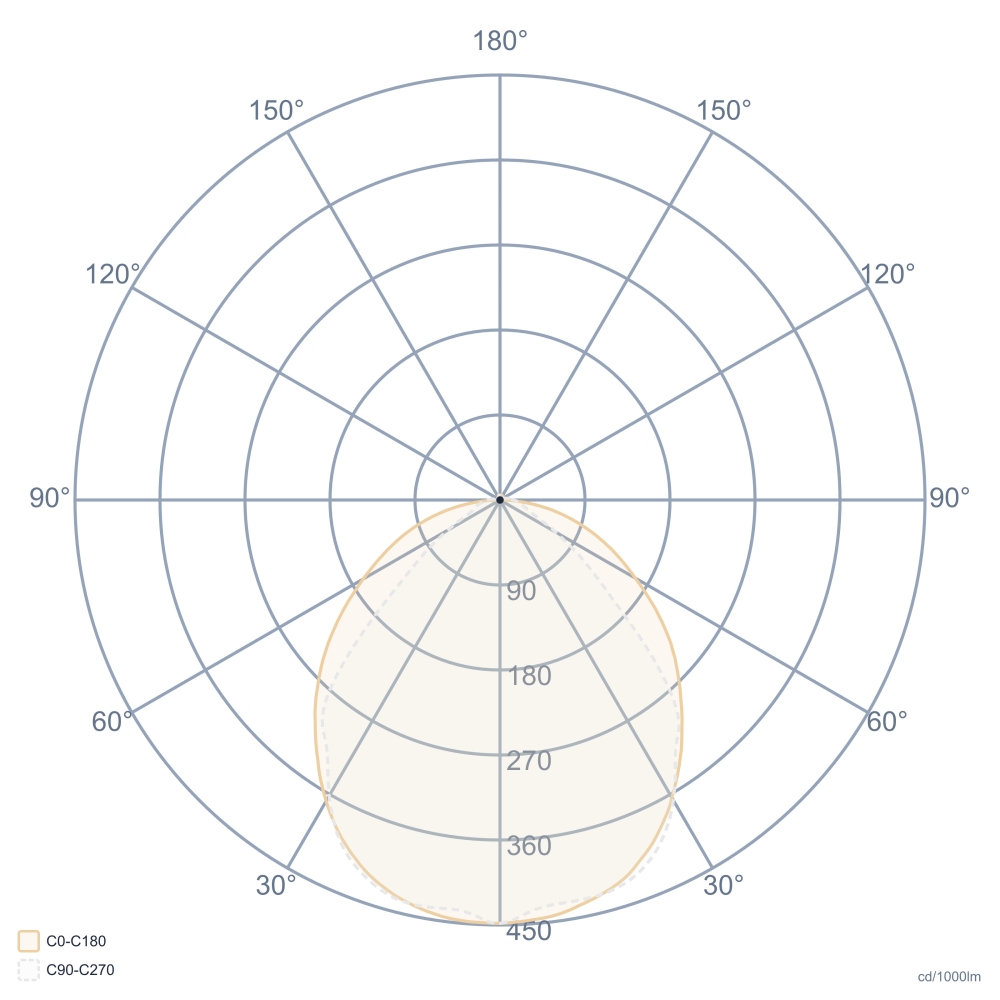

90° / 60°x90° / 25° / 2x25°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Kit (1h/3h)

Order CodeWLmCCTAngleL (mm)KgTechnical PagePhotometric File
