Energy Units
07200
Uninterrupted Power, Modular Infrastructure

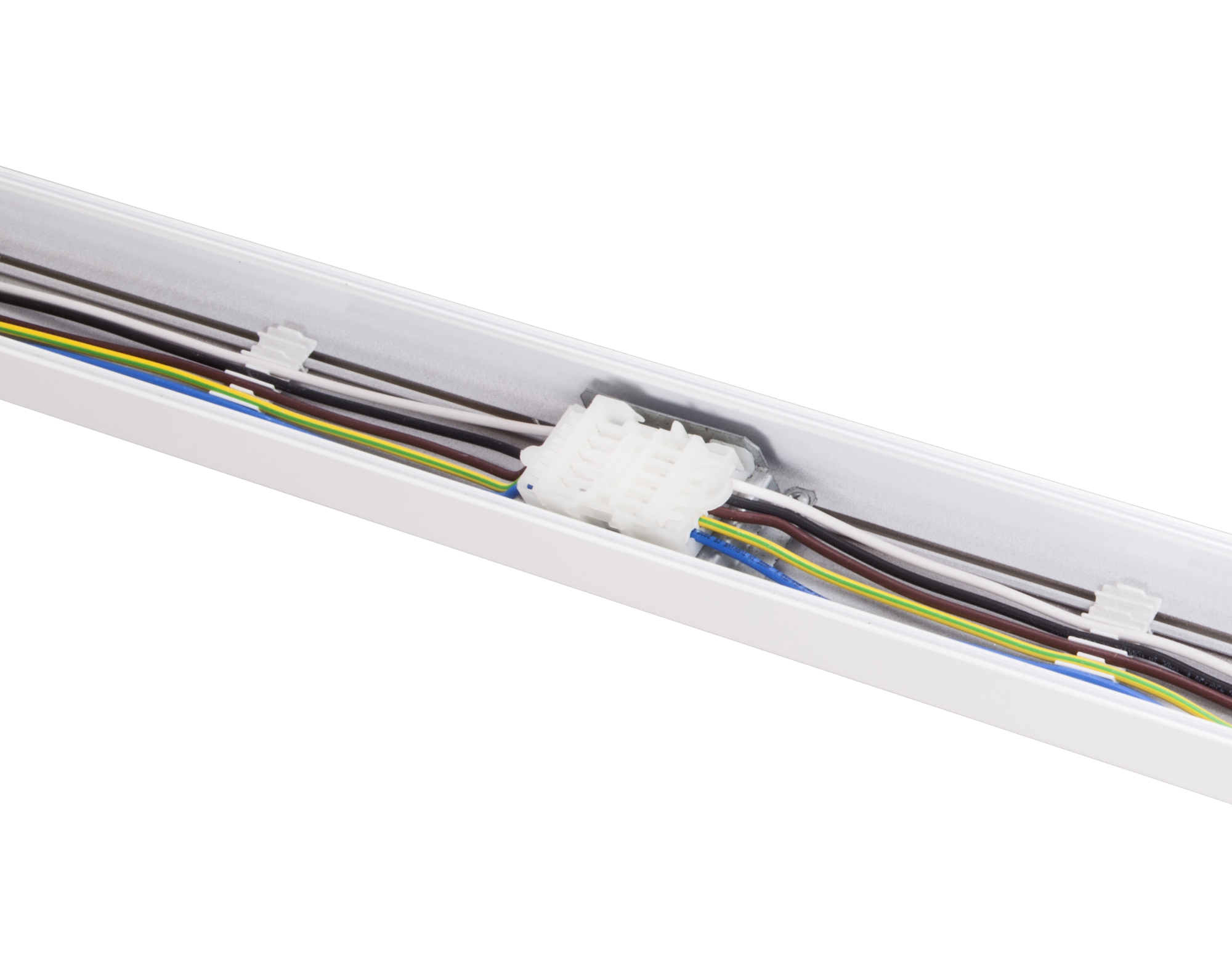

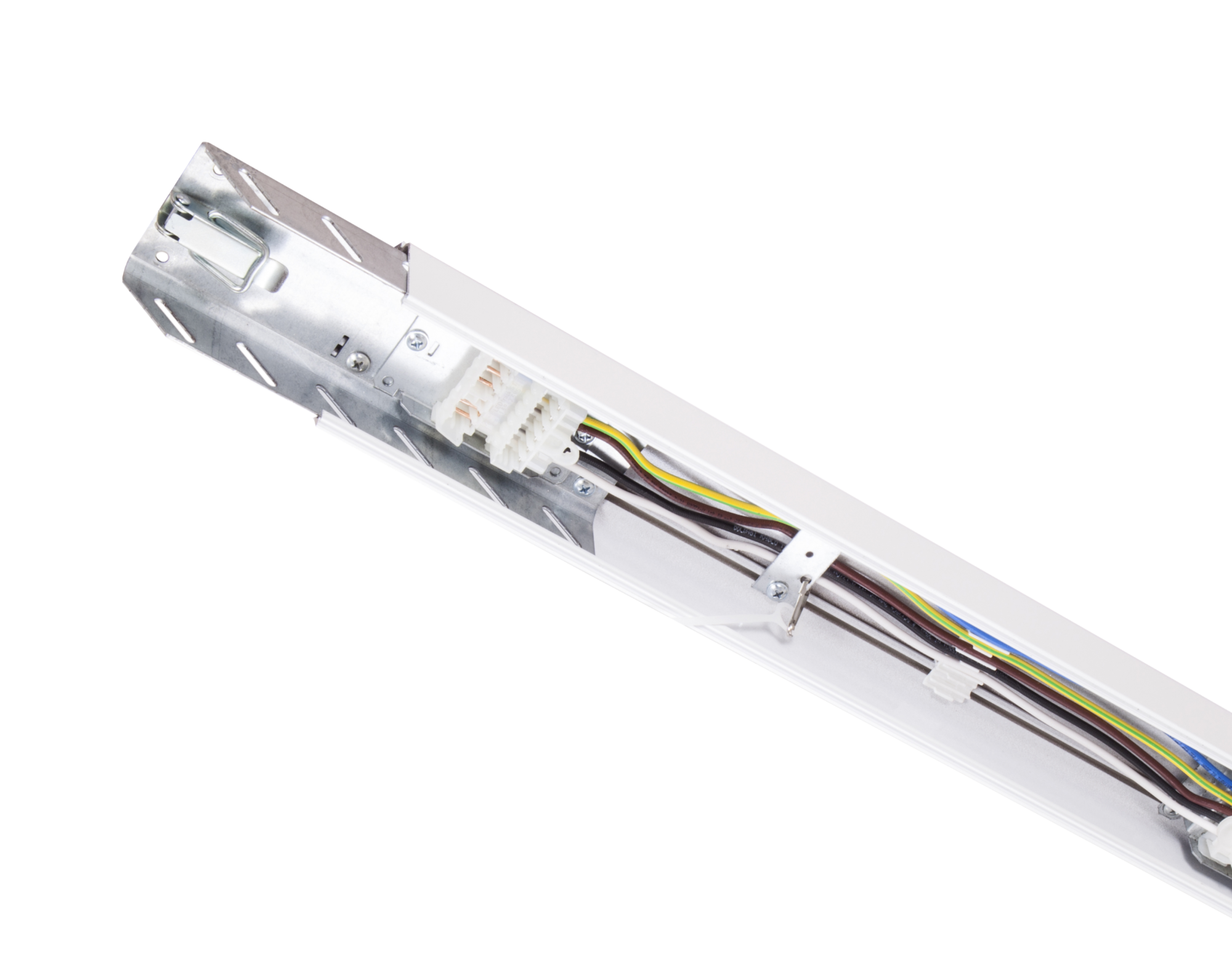

The energy unit is the main carrier profile in trunking systems that ensures the safe and uninterrupted transmission of energy from a single supply point along the line. Thanks to its integrated copper conductor structure, lighting units can be easily mounted at the desired point, their locations can be changed as needed, or new modules can be added to the system.

It offers flexible solutions for projects with 5, 7, and 9 conductor cable options suitable for phase selection, halogen-free cable structure, and a connector system with phase selection. Thanks to its quick installation, low cabling costs, and easy maintenance advantages, it provides reliable and long-lasting uninterrupted lighting in warehouses, logistics centers, production facilities, supermarkets, and large commercial areas.

Technical Documents
General Information
Housing
Electrostatic powder-coated aluminum profile

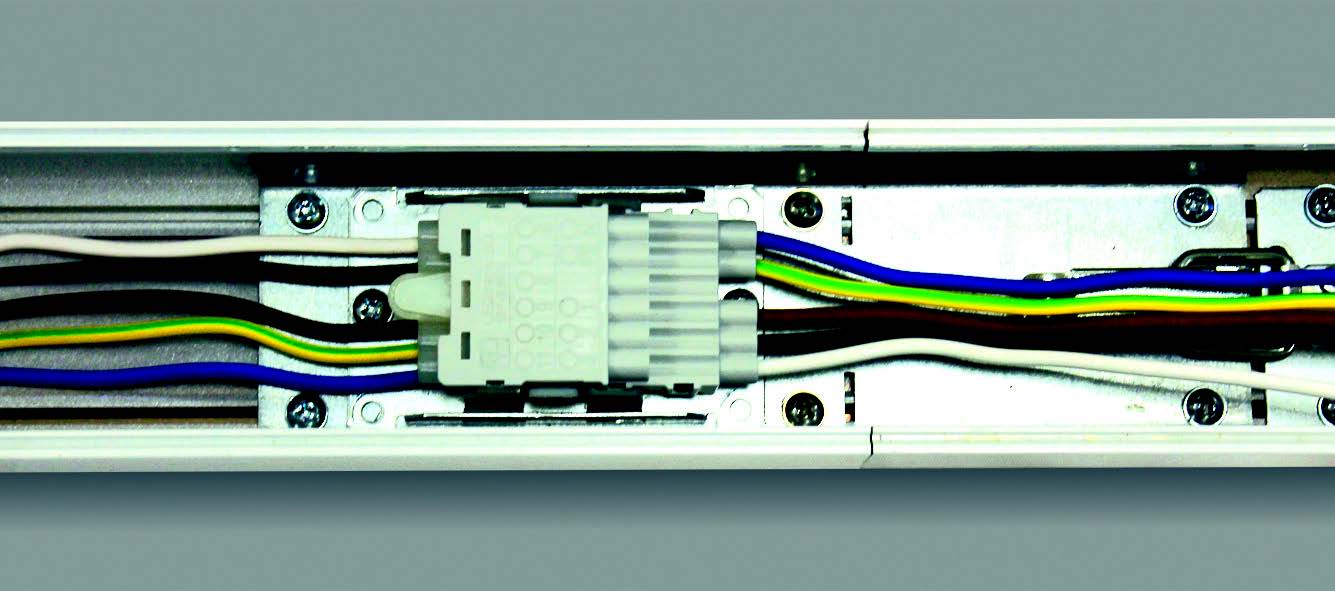

Connector
Phase selectable stripped (5-7-9 pin)
Cable
2,5mm² Halogen-Free
Insulation Class
Class I

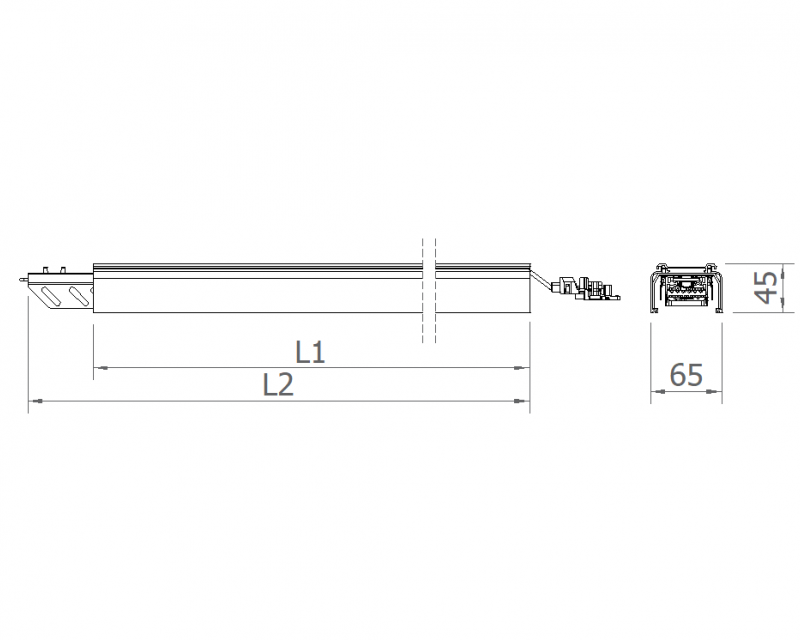

Product Dimensions [mm]
65(W)x45(H)
Mounting Type
Surface and Pendant
Mounting Part
Stainless Spring Steel
Electrical Info
Lighting Technology

Order CodeProduct TypeL1(mm)L2(mm)Cable ConnectionsReflector ColorKgTechnical PagePhotometric File
