PLATE
09112
Simple Form, Powerful Performance

Plate is a durable wall-mounted luminaire we developed for outdoor applications. With its IP65 protection class, IK08 impact resistance, and cast aluminum housing, it offers long-lasting use in challenging environmental conditions. Its opal polycarbonate diffuser with a 120° wide light distribution provides homogeneous, comfortable, and safe lighting in entrance areas, building perimeters, corridors, and common areas. With its modern design and high durability, it brings both aesthetics and functionality to architectural outdoor projects.

Min-Max Watt:
14-19 [W]
Lumen:
900-1250 [lm]
Lumen / Watt:
65 [lm/W]
Technical Documents
General Information
Body & Frame
Cast Aluminum
Optics
Opal Diffuser
Gasket
Silicon
Paint
Electrostatic Powder Paint
Insulation Class
Class I

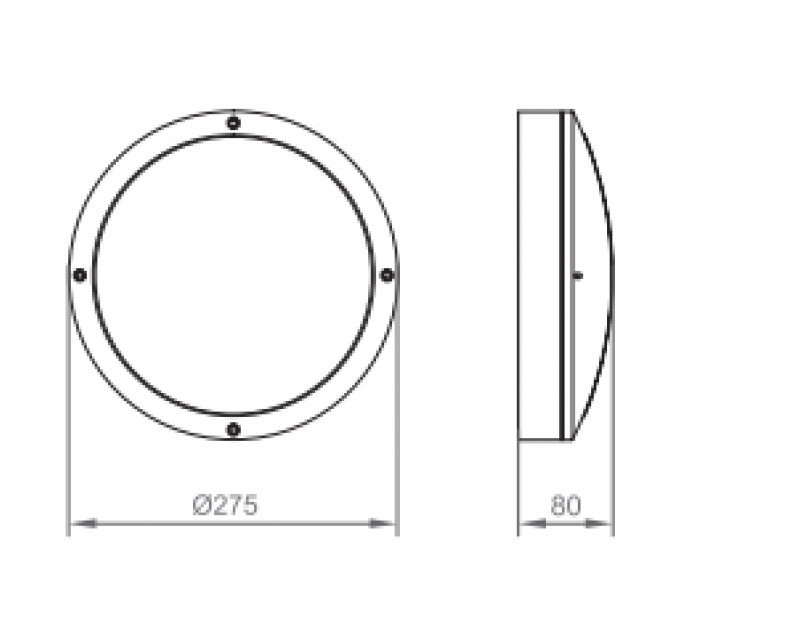

Product Dimensions [mm]
Ø275 x 80mm
Mounting Type
Surface
Mounting Part
Screw Dowel Set
Electrical Info
Power
14-19W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

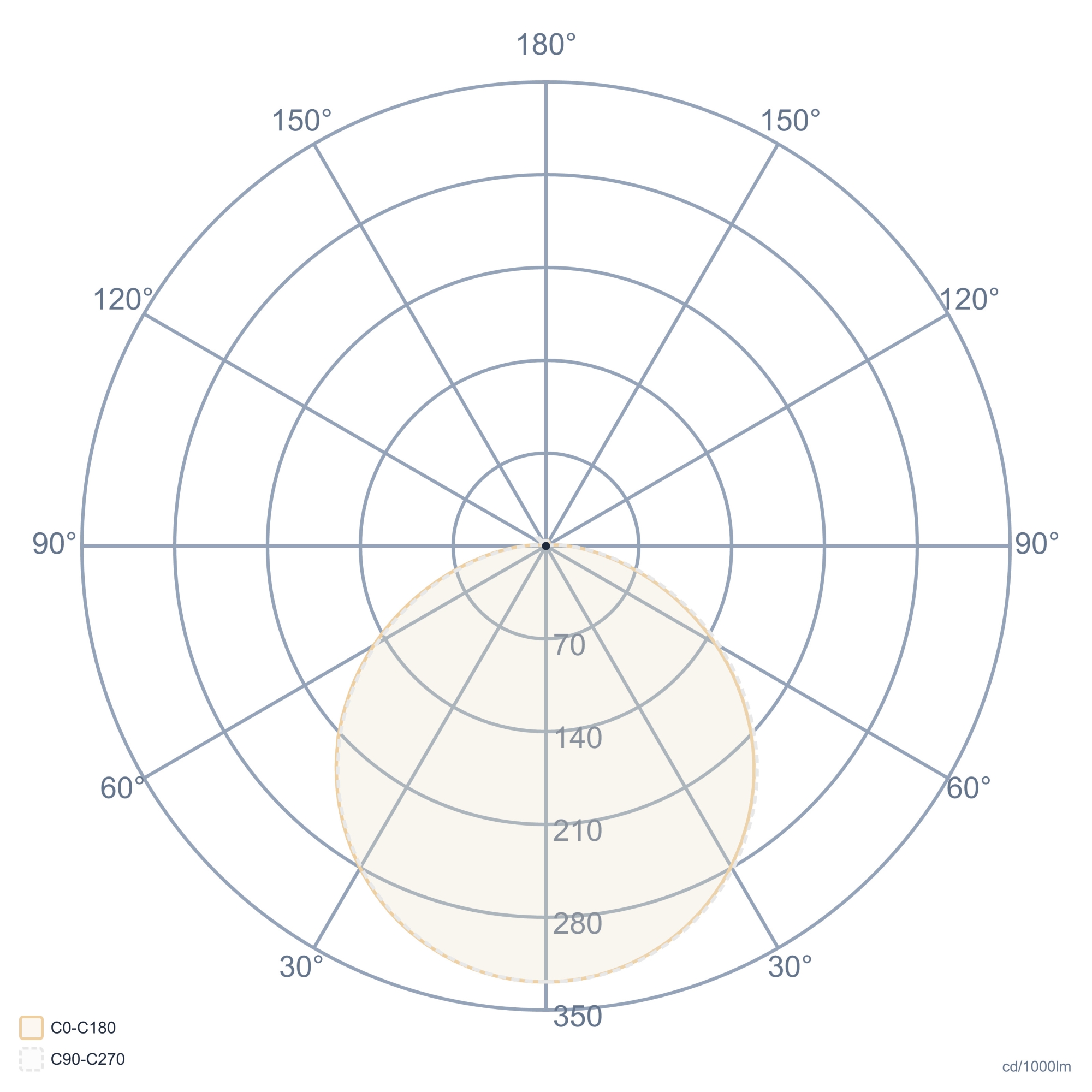

Light Output Angle
120°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLight SourceCCTØD x H (mm)KgTechnical PagePhotometric File
