BEAM-T
05260

Beam T is a surface-mounted LED wall sconce developed for outdoor applications, with a compact design that complements modern architecture. With a diameter of Ø90mm and height options of 90mm and 160mm, it provides aesthetic compatibility with different facades and architectural details. Its unidirectional light distribution creates homogeneous lighting around facades, entrances, columns, walkways, and building perimeters. COB LED technology ensures high light quality, while its die-cast aluminum housing provides a long-lasting and durable structure. With an IP65 protection rating, it is resistant to rain, humidity, and dust. Available in black, white, and anthracite colors to match various architectural concepts. Its minimal dimensions and simple design make it an ideal outdoor lighting solution for residential, hotel, commercial building, and landscape projects.

Beam T is a surface-mounted LED wall sconce developed for outdoor applications, with a compact design that complements modern architecture. With a diameter of Ø90mm and height options of 90mm and 160mm, it provides aesthetic compatibility with different facades and architectural details. Its unidirectional light distribution creates homogeneous lighting around facades, entrances, columns, walkways, and building perimeters. COB LED technology ensures high light quality, while its die-cast aluminum housing provides a long-lasting and durable structure.

With an IP65 protection rating, it is resistant to rain, humidity, and dust. Available in black, white, and anthracite colors to match various architectural concepts. Its minimal dimensions and simple design make it an ideal outdoor lighting solution for residential, hotel, commercial building, and landscape projects.

Min-Max Watt:
12 [W]
Lumen:
820 [lm]
Lumen / Watt:
70 [lm/W]
Technical Documents
General Information
Housing
Aluminum and Injection
Optics
Polished Reflector
Glass
Tempered, Clear Glass
Paint
Electrostatic Powder Coated
Insulation Class
Class I
Product Dimensions [mm]
Ø90x138(H)
Mounting Type
Surface
Electrical Info
Power
8-12W
Power Factor
>0.95
Light Source
COB LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-25°C/+50°C
LED Lifetime L70
>50.000 Hour

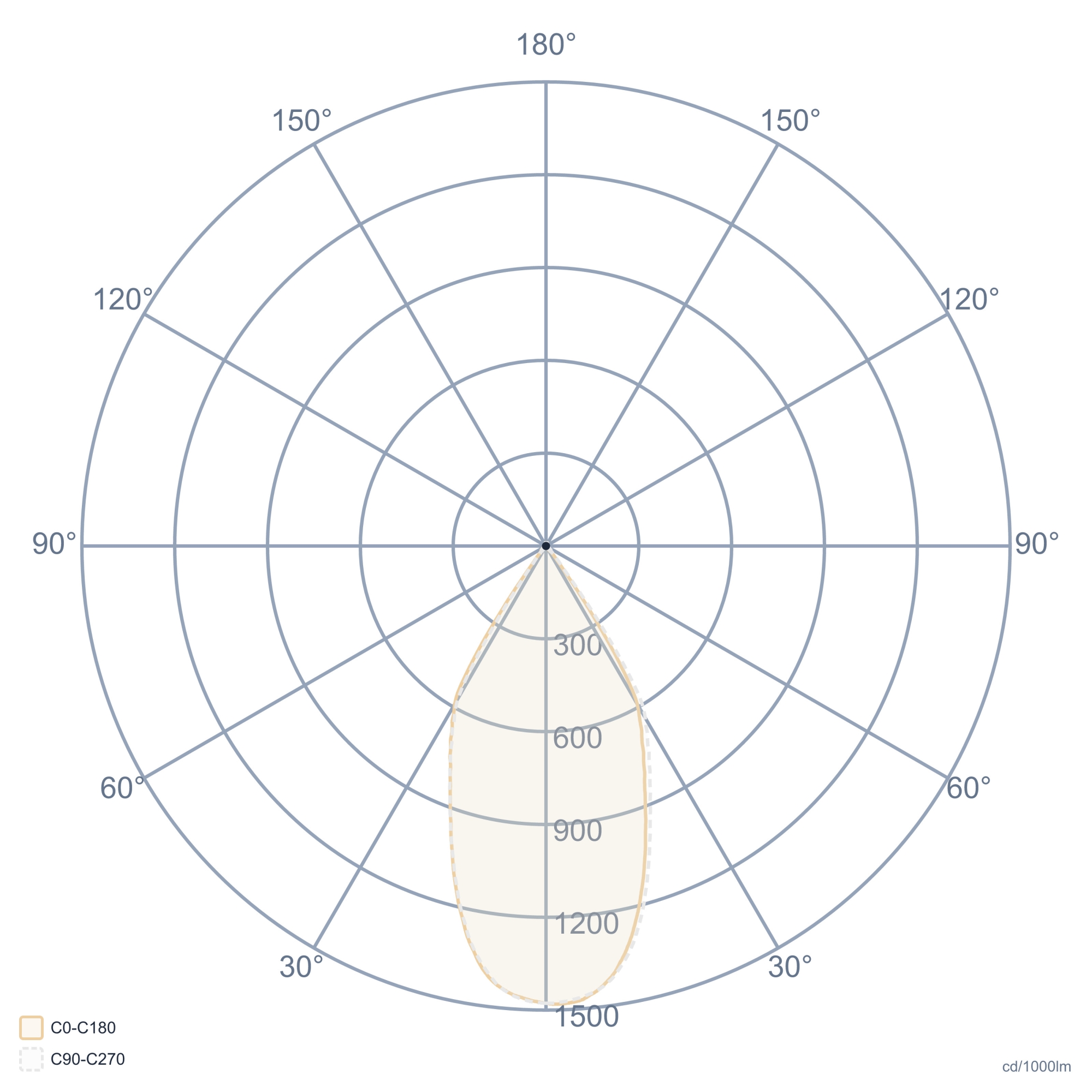

Lighting Technology
Light Output Angle
43°
UGR Value
UGR ≤ 25
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White

Order CodeWLmCCTØD x H (mm)KgTechnical PagePhotometric File
