BEAM-D
06602
Double-Sided Outdoor Wall Sconce

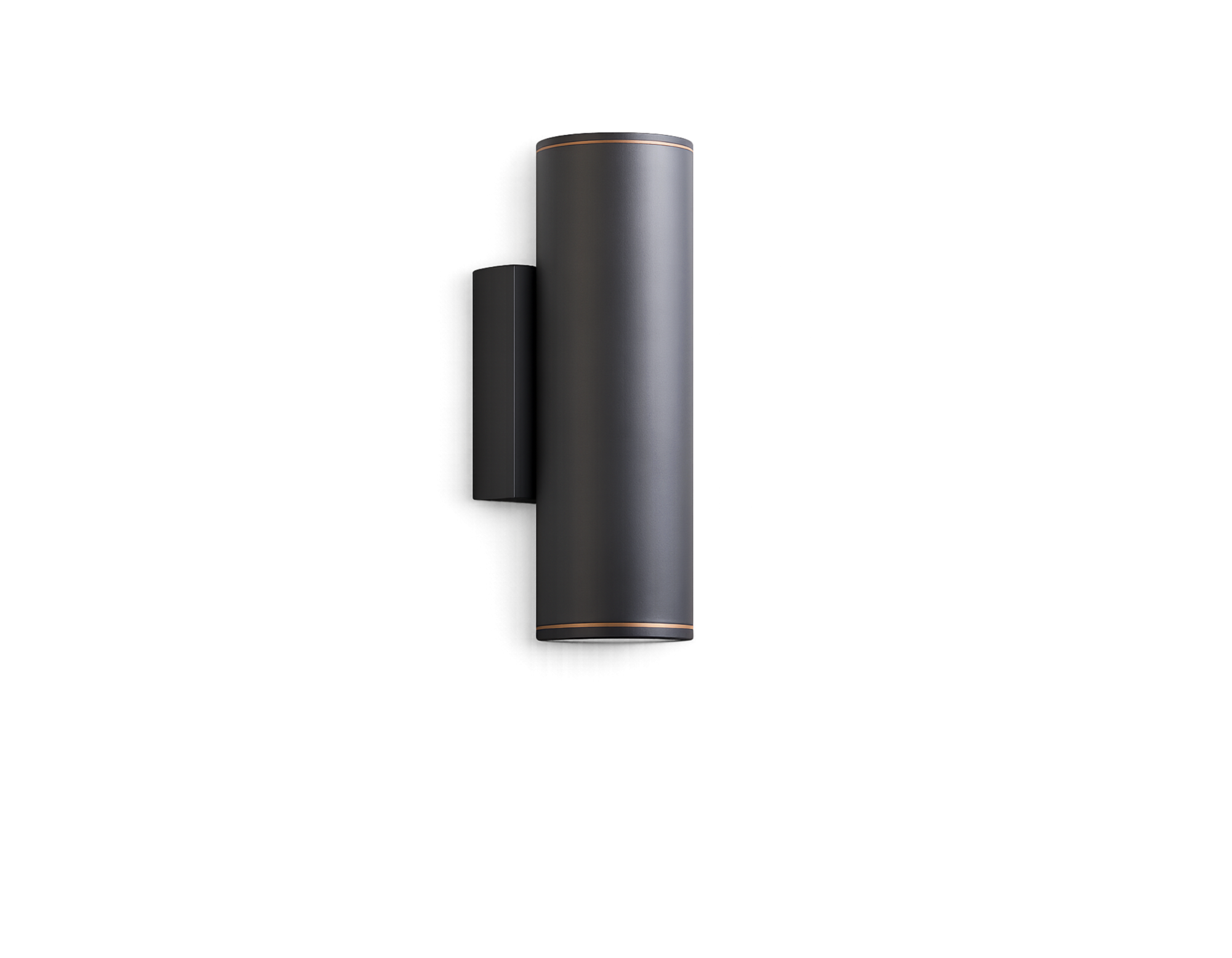

Beam-T is an outdoor wall sconce that provides aesthetic lighting to facades with its symmetrical upward and downward light distribution. Its cylindrical form and minimalist design integrate seamlessly with architectural structures. It offers decorative and functional lighting on building facades. Its compact design and dual-directional COB LED structure create balanced light patterns on wall surfaces. It provides a stylish solution that highlights architectural details in entrances, hotels, residential projects, commercial buildings, and landscape applications.

Its aluminum housing and IP65 protection class ensure resistance to harsh outdoor conditions. Available in black, white, and anthracite, it adapts to various architectural styles. Its aesthetic appearance, long lifespan, and dual-directional light effect make it an ideal choice for outdoor lighting.

Min-Max Watt:
16-24 [W]
Lumen:
600-970 [lm]
Lumen / Watt:
80 [lm/W]
Technical Documents
General Information
Meterial
Cast Aluminum
Optics
Polished Reflector
Glass
Tempered, Clear Glass
Paint
Electrostatic Powder Coating
Insulation Class
Class I

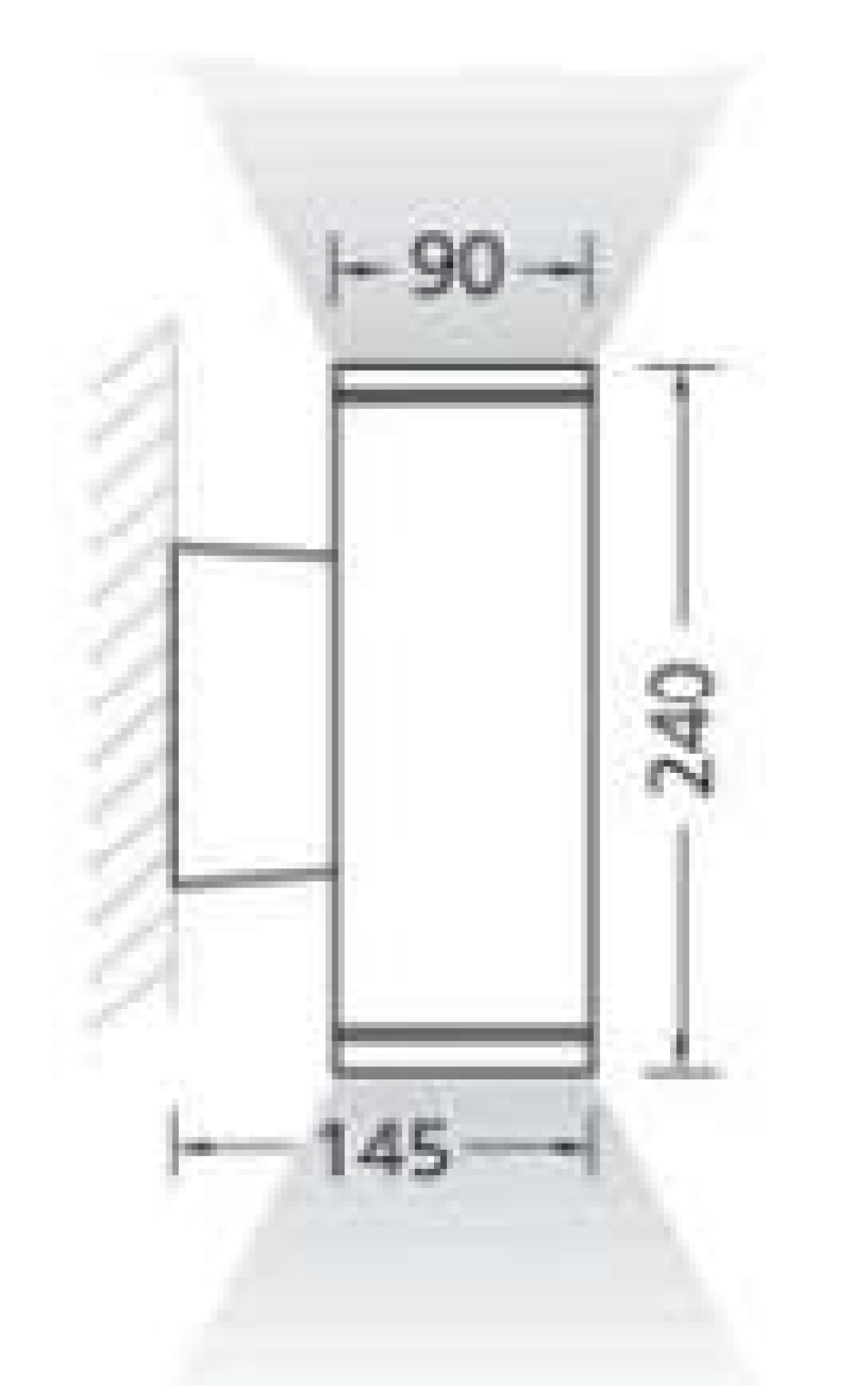

Product Dimensions [mm]
Ø90x225(H)x135(L)
Mounting Type
Surface
Electrical Info
Power
2x13W
Power Factor
>0.95
Light Source
COB LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-25°C / +50°C
LED Lifetime L70
>50.000 Hour

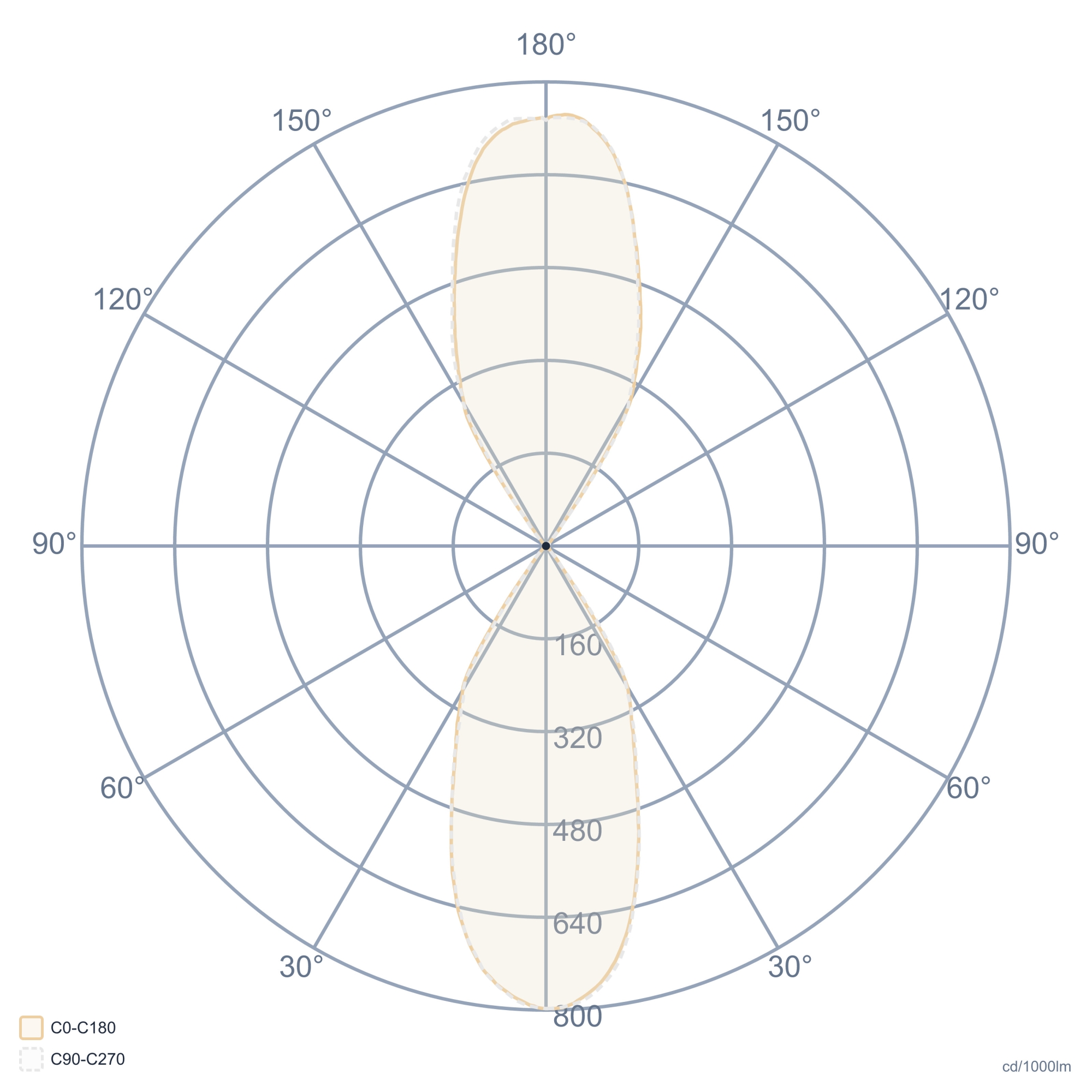

Lighting Technology
Light Output Angle
43°
UGR Value
UGR ≤ 25
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White

Order CodeWLmCCTØxHxL (mm)KgTechnical PagePhotometric File
