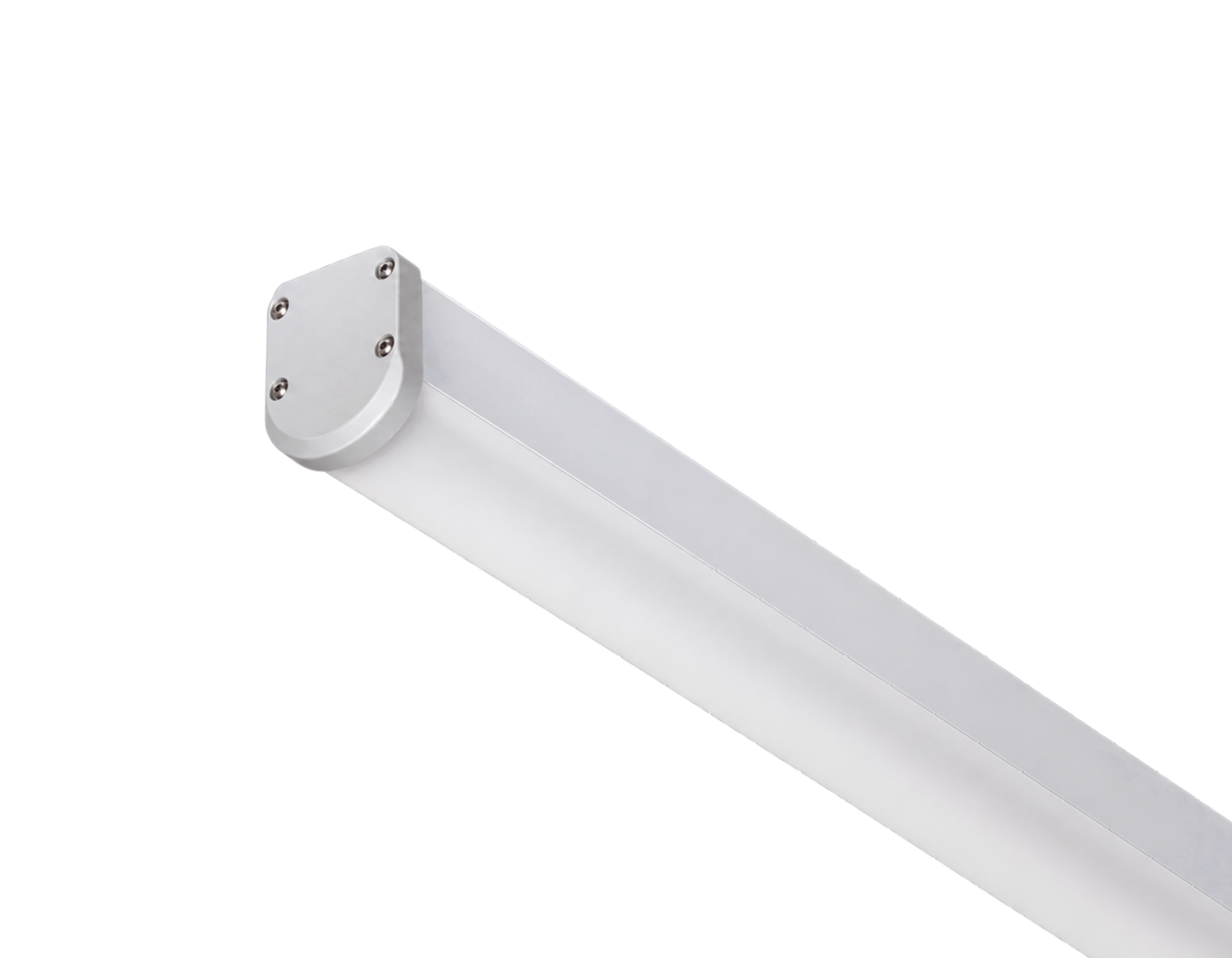

DRAW IP65
07105
Lightweight and Durable Waterproof Lighting

Draw IP65 combines aesthetic appeal with a high level of protection thanks to its slim and compact design. Its CO-EX extruded PC housing offers a lightweight, durable, and corrosion-resistant structure.

The product features an aluminum inner profile where the LED modules and driver are mounted. This structure provides heat management, increasing LED lifespan and supporting mechanical strength. Maintenance and servicing are easily performed thanks to the screw-on side cover system.

It is reliable and long-lasting for corridors, technical areas, parking lots, production areas, warehouses, and humid environments. Its IP65 protection level provides high resistance to dust and moisture.

Min-Max Watt:
17-51 [W]
Lumen:
2100-6800 [lm]
Lumen / Watt:
134 [lm/W]
Technical Documents
General Information
Housing
CO-EX PC Extrusion
Side Cover
PC Injection
Inner plate
Aluminum Extrusion (LED Assembly)
Gasket
Transparent Silicone (inside the side cover)
Insulation Class
Class I
Product Dimensions [mm]
56(W) x 68(H)
Mounting Type
Surface and Pendant
Mounting Part
Stainless Spring Steel
Electrical Info
Power
17-51W
Power Factor
>0.95
Light Source
Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology
Light Output Angle
120°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTL (mm)Technical PagePhotometric File
