MODUS-T
05648

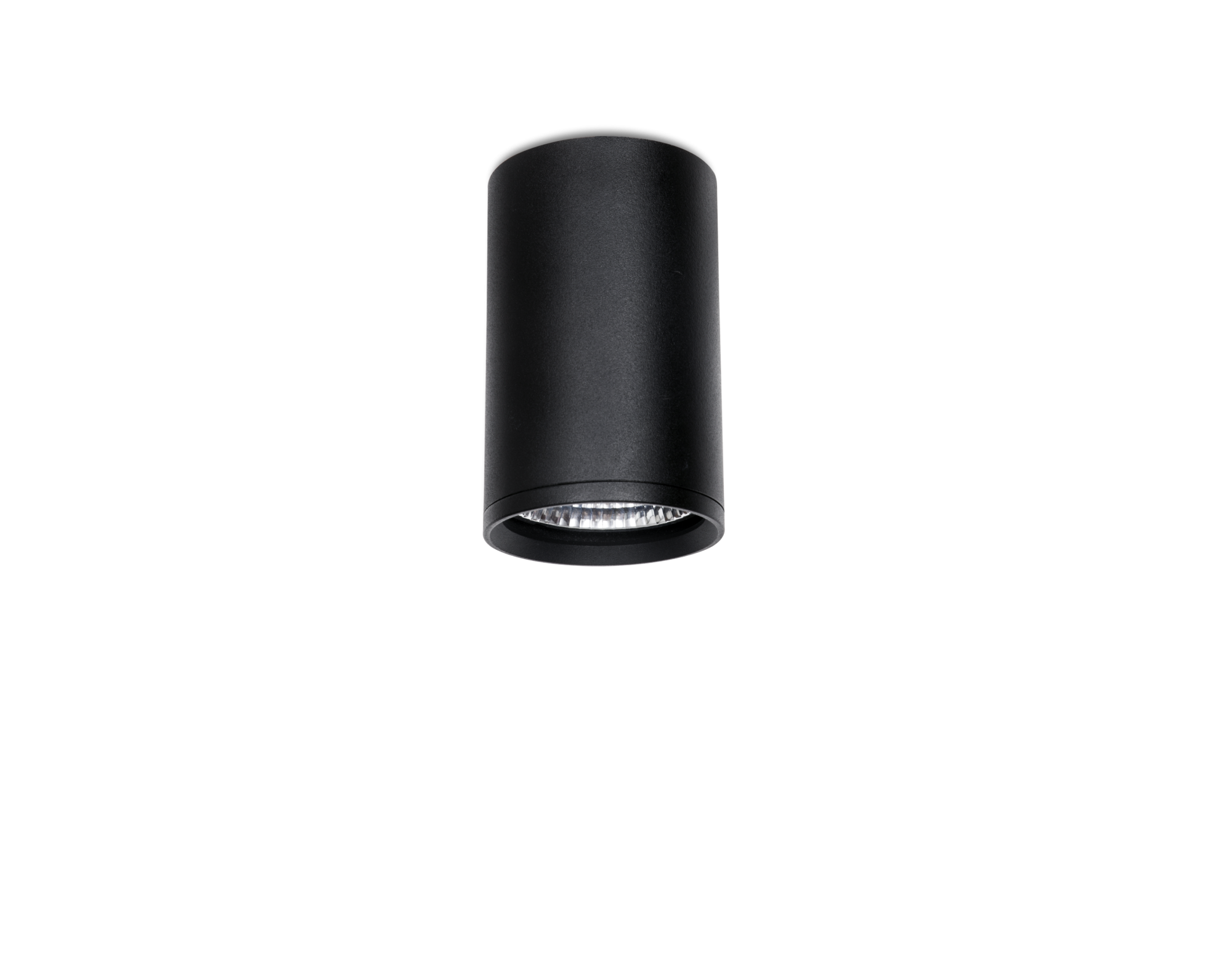

Minimal lighting in a cylindrical form

Modus-T is a simple and elegant spotlight solution developed for modern architectural projects, featuring a cylindrical body and surface mounting design. Its extruded aluminum body and metallized reflector optics provide controlled light distribution, while its UGR≤19 value enhances visual comfort.

With a 36° beam angle, high-efficiency optical system, and compact design, it can be used in general and accent lighting applications. Available in white, gray, and black, Modus-T adapts to various interior design concepts, combining modern aesthetics with high-performance lighting in offices, shops, hotels, restaurants, and social spaces.

Min-Max Watt:
14-20 [W]
Lumen:
1810-2700 [lm]
Lumen / Watt:
135 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded
Frame
Aluminum Injection
Optics
Polished Reflector
Paint
Electrostatic Powder Coating
Insulation Class
Class I

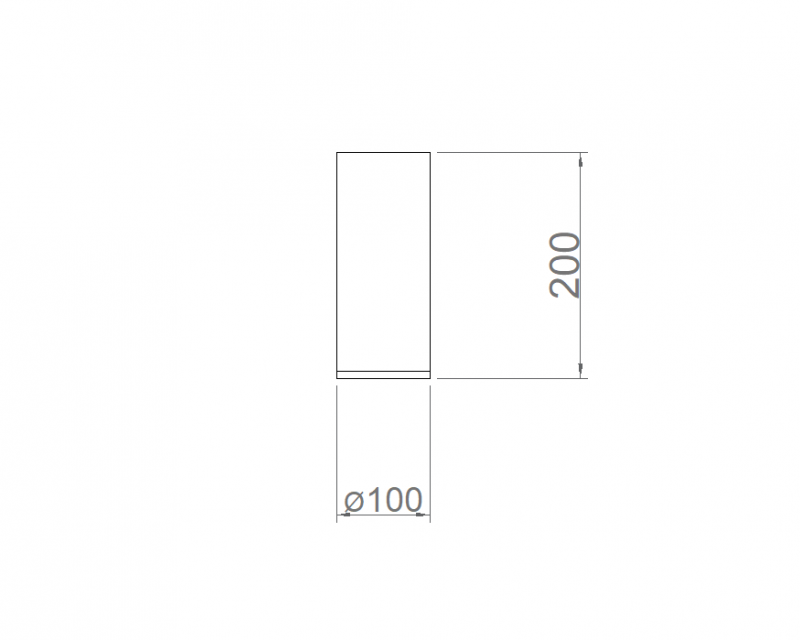

Product Dimensions [mm]
Ø100 x 200(H)
Mounting Type
Surface
Mounting Part
Screw Dowel Set
Electrical Info
Power
14-20W
Power Factor
>0.95
Light Source
COB LED
Cabling
Halojen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

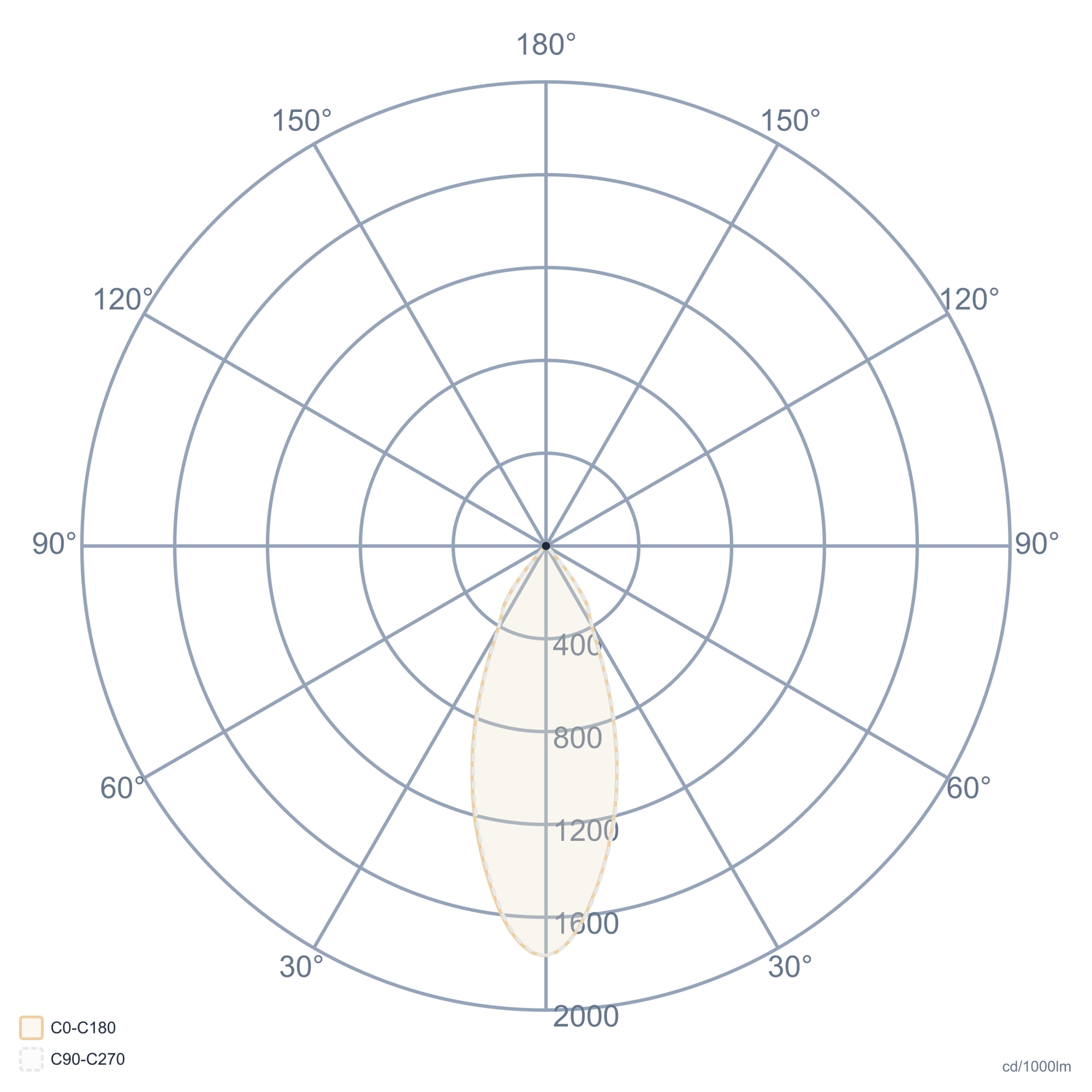

Light Output Angle
36°
UGR Value
UGR ≤ 19
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Kit

Order CodeWLmAngleCCTØD x H (mm)KgTechnical PagePhotometric File
