PERA
02182

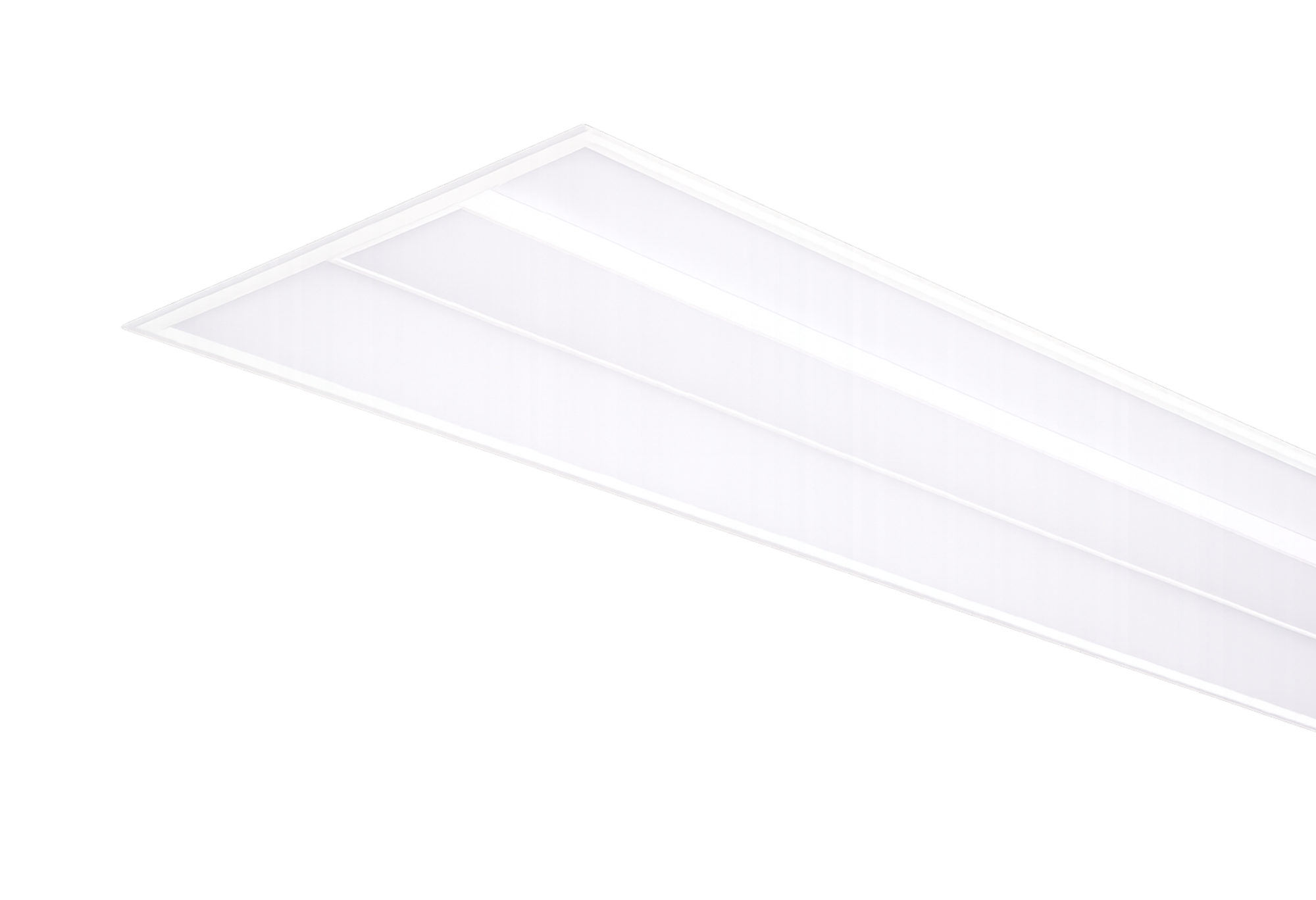

Pera is an architectural lighting solution that combines direct and indirect lighting in a single unit. While providing effective general lighting with its central diffuser structure, it creates a more balanced, comfortable, and spacious lighting effect thanks to the indirect light reflected from the side surfaces onto the ceiling.

Available in 30x60 cm and 30x120 cm sizes to adapt to different spatial needs, Pera offers a modern lighting approach, especially in offices, educational buildings, corporate spaces, and commercial projects. The combined use of direct and indirect light contributes to balancing illumination levels on both horizontal and vertical surfaces.

Min-Max Watt:
21-42 [W]
Lumen:
2200-4600 [lm]
Lumen / Watt:
110 [lm/W]
Technical Documents
General Information
Body & Frame
DKP Metal Sheet
Optics
Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class I

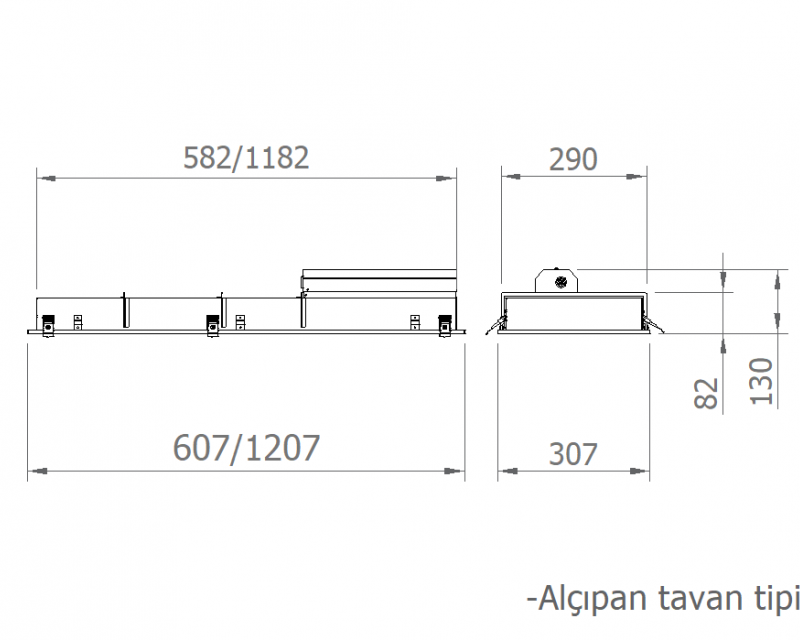

Product Dimensions [mm]
307(W) x 607/1207(L) x 130(H)
Mounting Type
Recessed
Mounting Part
Metal Bracket
Electrical Info
Power
21W-42W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

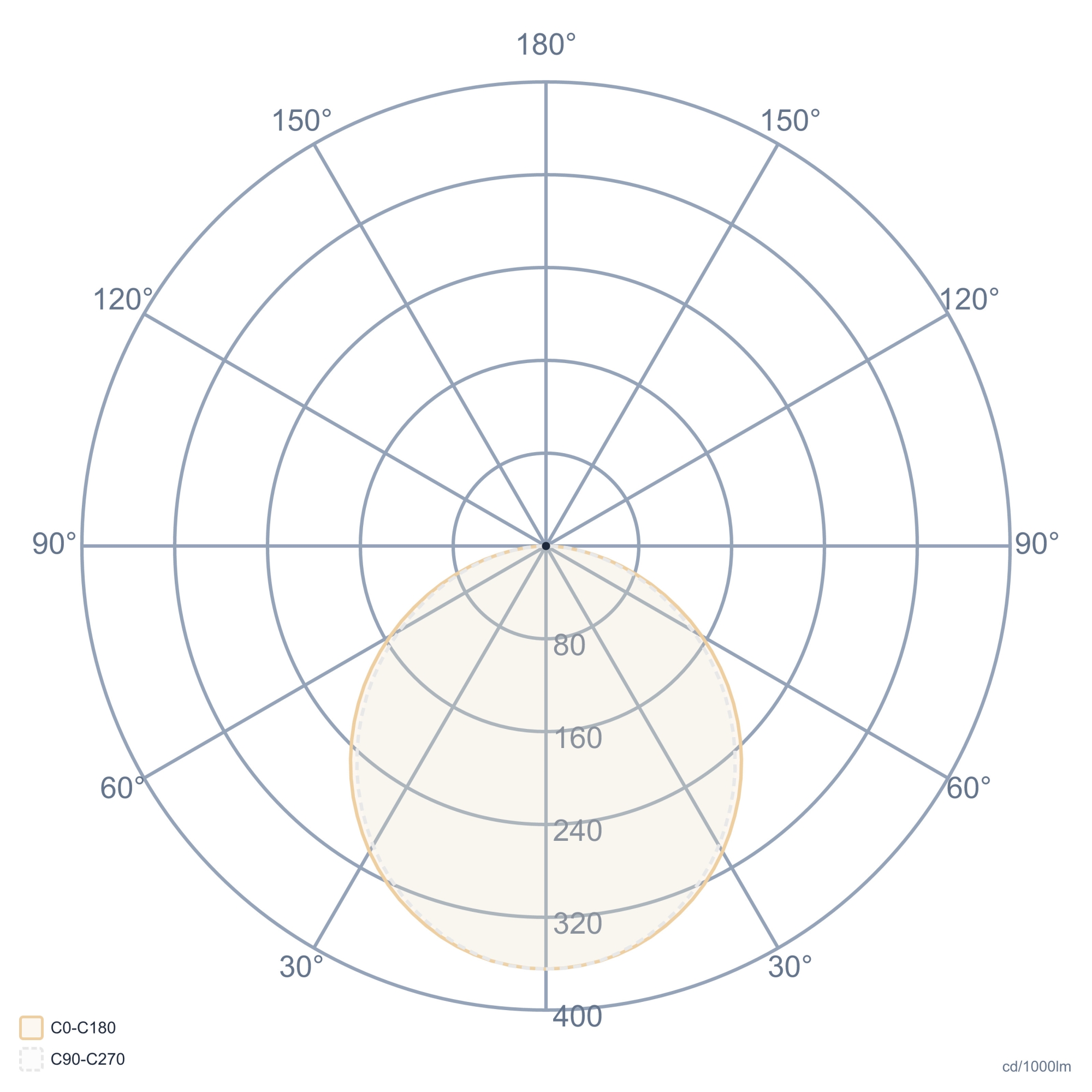

Light Output Angle
120°
UGR Value
UGR ≤ 19
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
Emergency Lighting Unit
CRI>90 , 2700K~6500K , Tunable White

Order CodeWLmCCTL (mm)Cut-out dimensions (mm)Technical PagePhotometric File
