STYLE-P 1230
03137

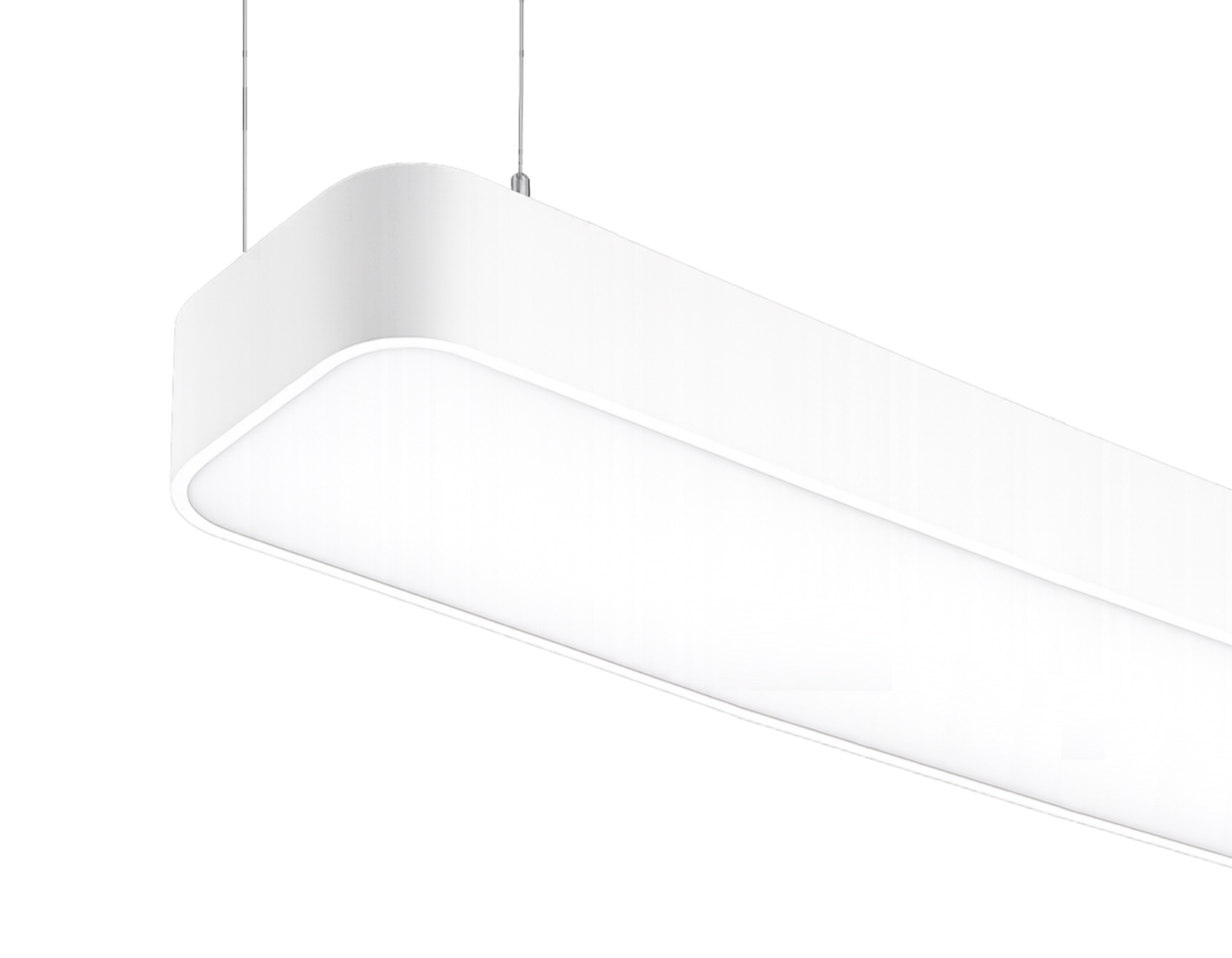

Modern Lighting with a Curved Form

Style P 1230 Series offers a strong and contemporary design language with its wider body structure and smooth radius edge transitions. The soft surface transitions replace sharp lines, creating a clean and premium appearance while providing uniform and comfortable illumination through its large lighting surface.

With its aluminum body structure and integrated design details, Style P 1230 adds a distinctive character to architectural projects. Thanks to its suspended mounting structure, it stands out as a striking design element in offices, commercial and social spaces.

Offering different color temperature and control options, the Style P 1230 Series adapts to project-specific lighting scenarios while combining functional and aesthetic lighting solutions.

Min-Max Watt:
28 [W]
Lumen:
3200 [lm]
Lumen / Watt:
114 [lm/W]
Technical Documents
General Information
Meterial
Aluminum Extruded
Optics
Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class I

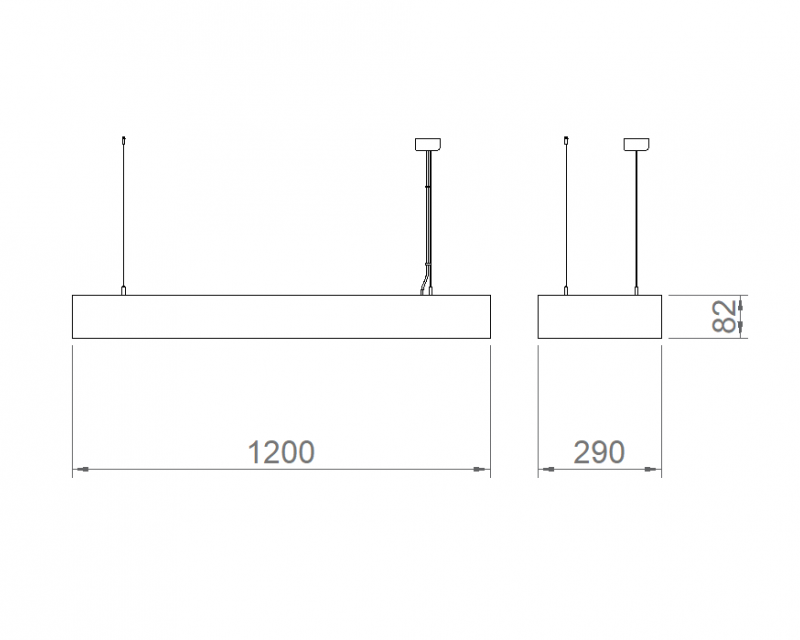

Product Dimensions [mm]
290(W) x 82(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
28W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour

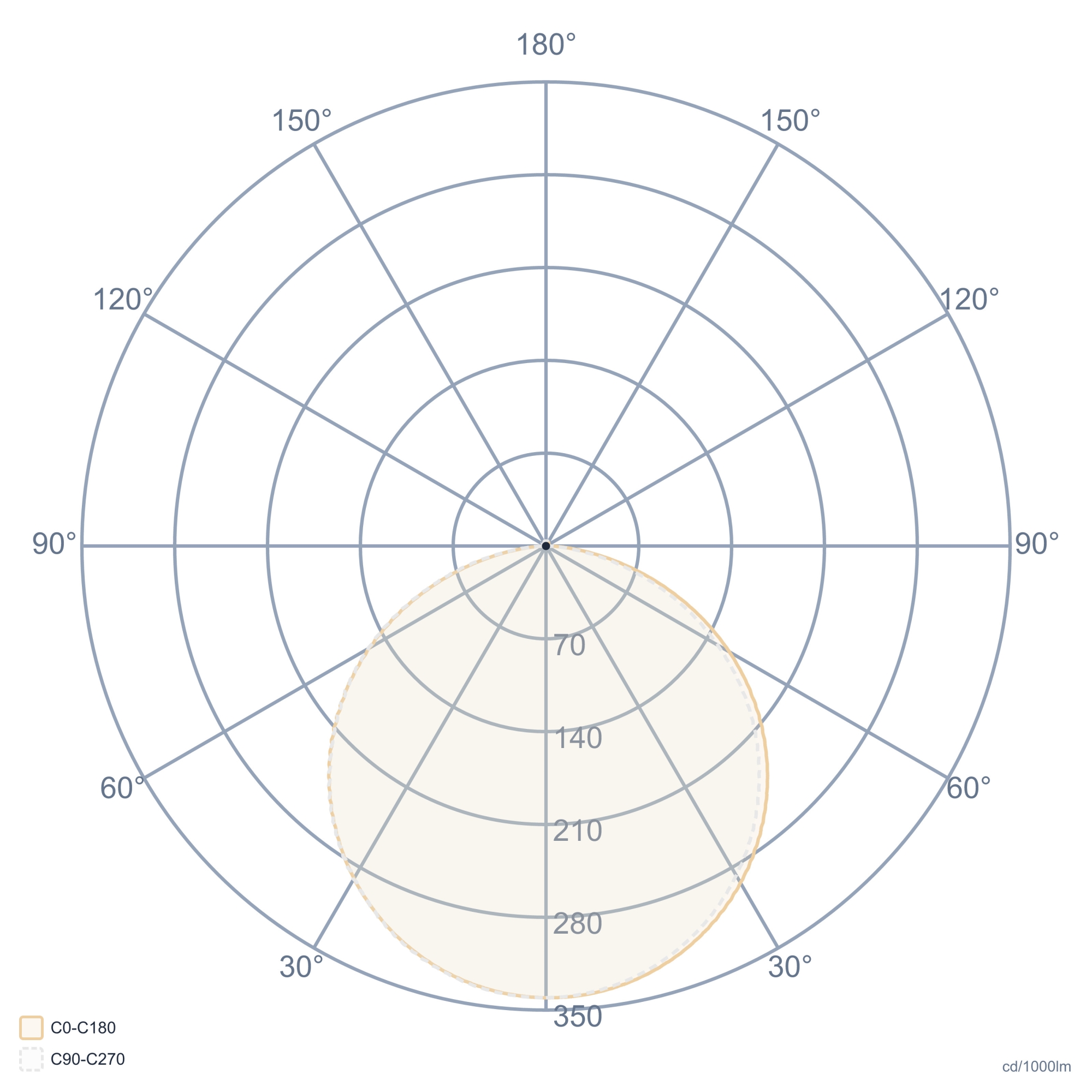

Lighting Technology
Light Output Angle
120°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTL (mm)KgTechnical PagePhotometric File
