DUET-P
01181
Pendant Lighting Luminaire

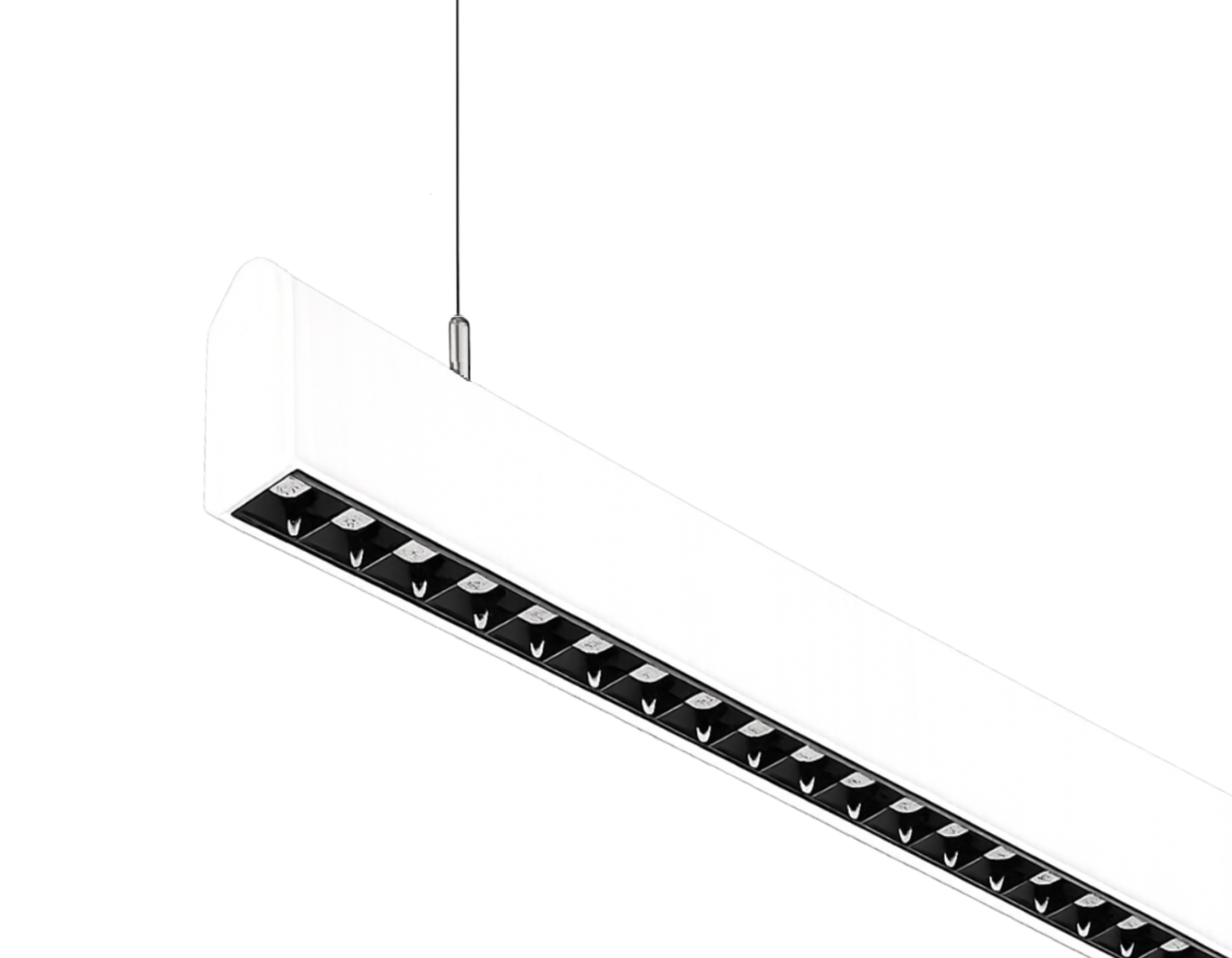

The DUET Series stands out with its U-shaped body structure and unique cover finish, deviating from standard rectangular forms. Thanks to its 37mm wide aluminum body and screwless design, it offers a simple and premium look. Its dark optics provide low UGR≤17 glare control and various light output angle options.

It is compatible with various projects with pendant and surface mounting options.


Min-Max Watt:
28-34 [W]
Lumen:
3000-3880 [lm]
Lumen / Watt:
110 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded
Side Cover
Aluminum Injection
Optics
PMMA Lens + Reflector
Paint
Electrostatic Powder Painted
Insulation Class
Class I

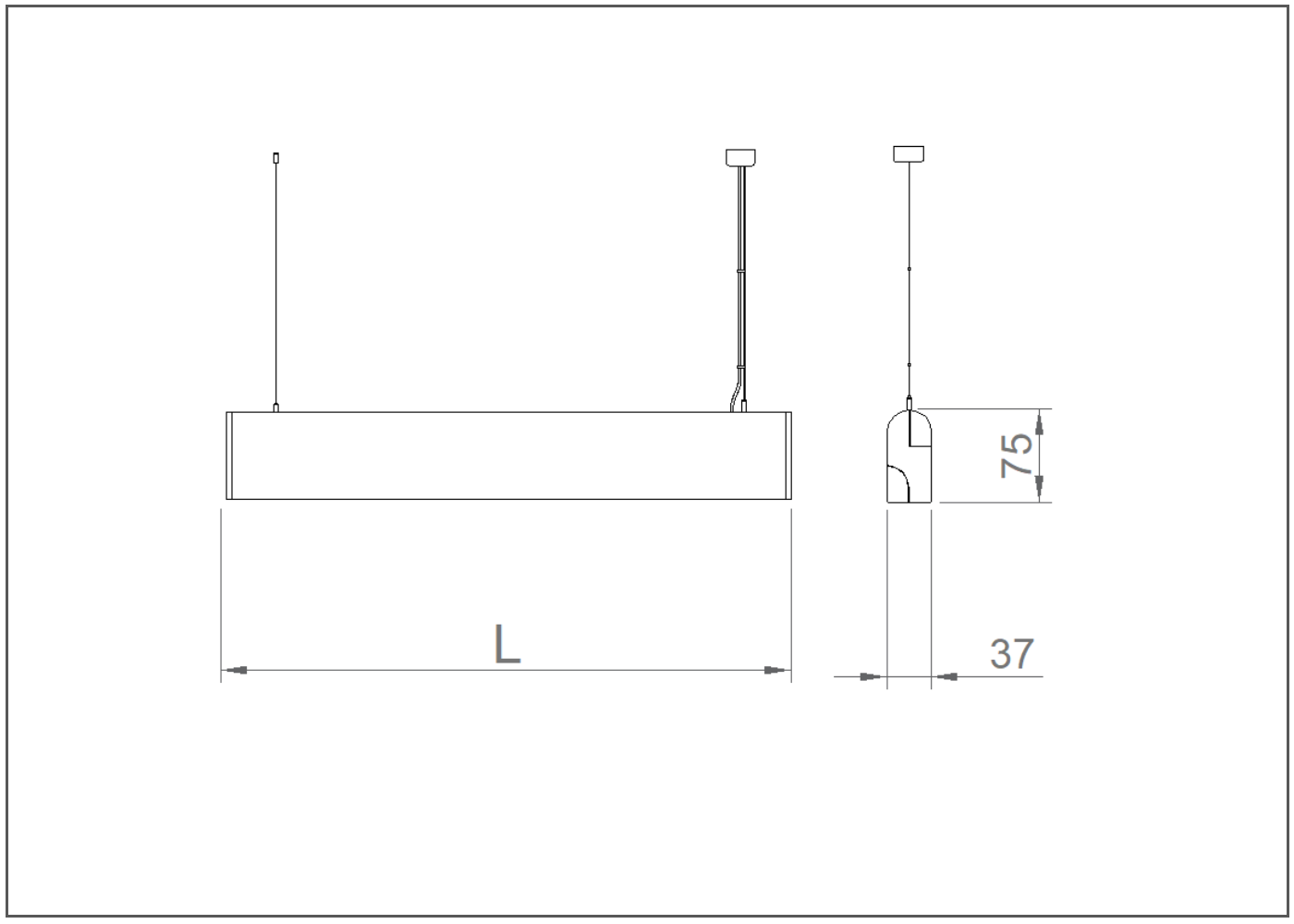

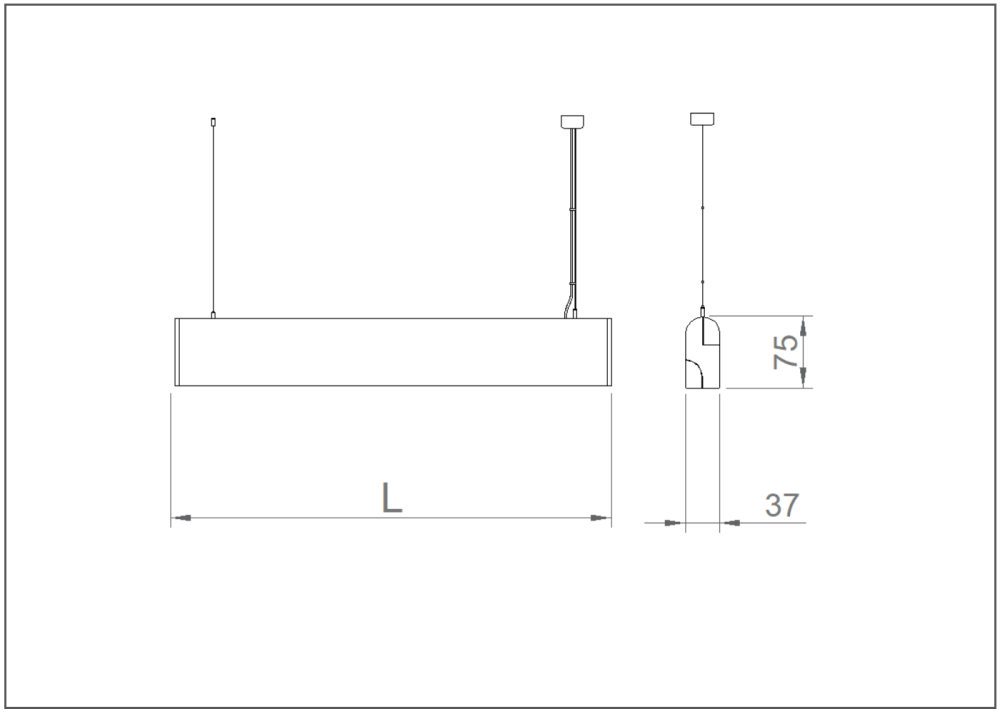

Product Dimensions [mm]
37(W) x 75(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
22-34W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology
Light Output Angle
36°
UGR Value
UGR ≤ 17
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTWxH (mm)L (mm)KgTechnical PagePhotometric File
