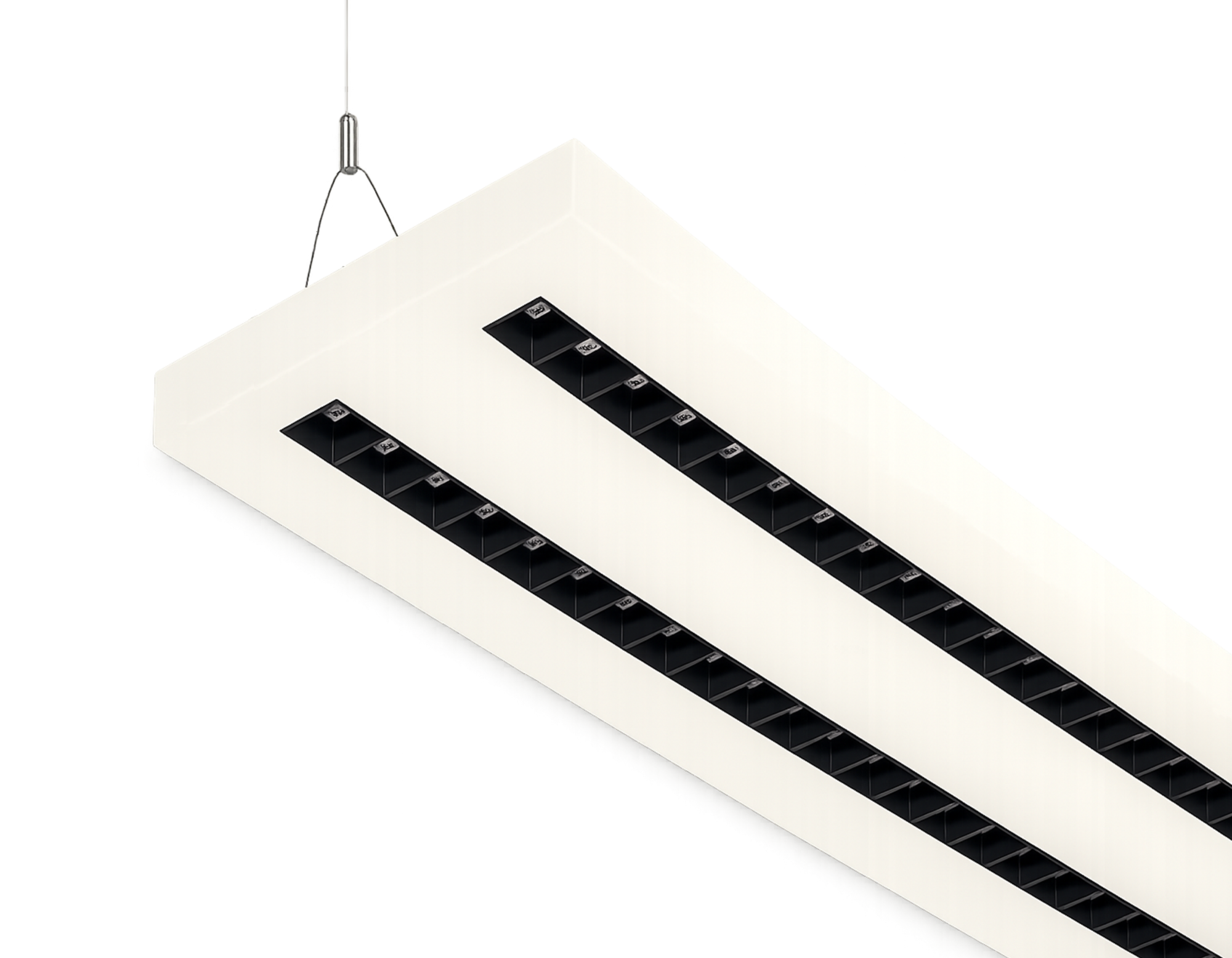

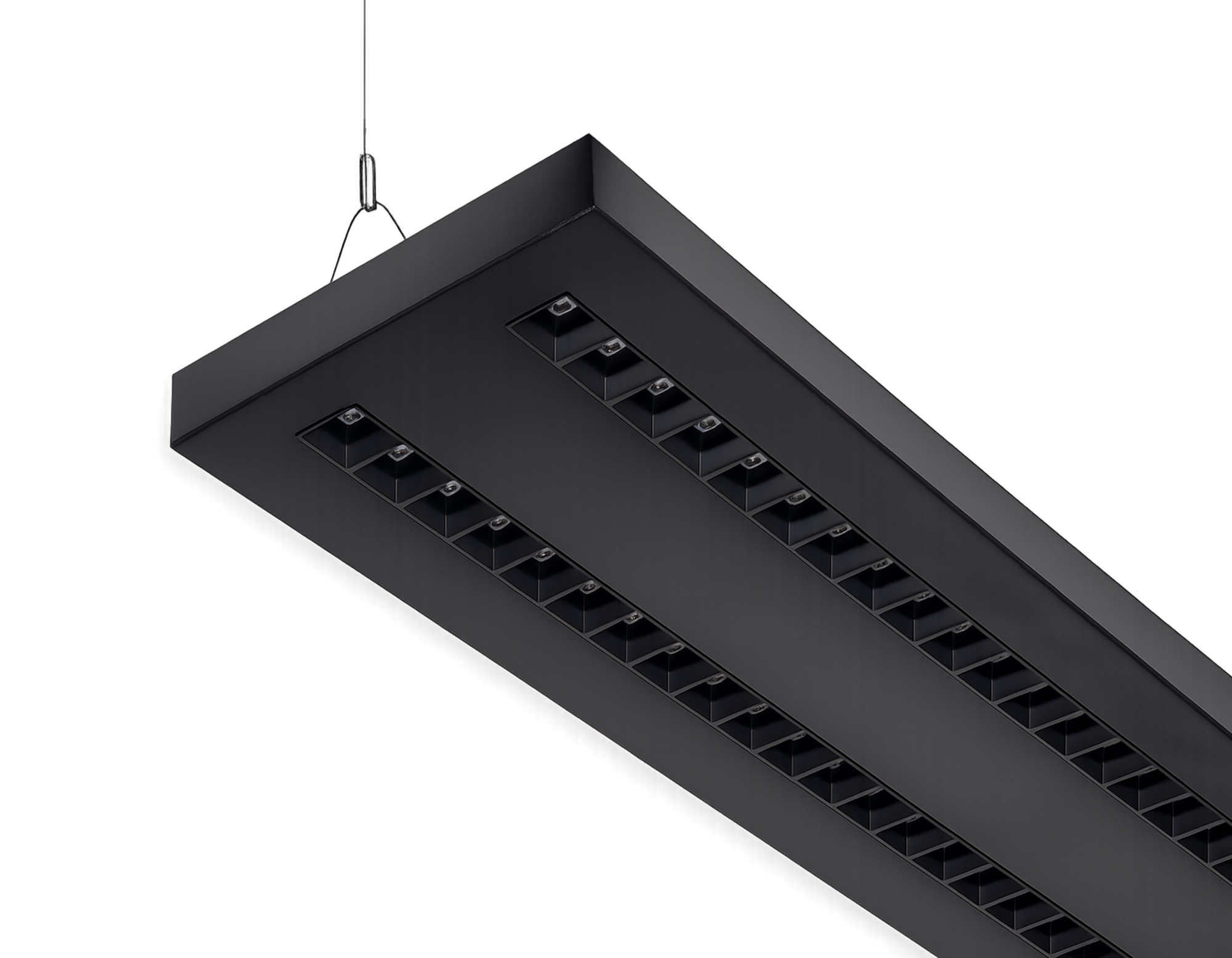

DARKLINE 1200
02173
Slim Pendant Lighting Luminaire-Dark Optics

The Darkline Series offers high visual comfort for modern workspaces with its slim body structure and reflector optical system that provides low glare. Thanks to its reflector structure, it provides controlled light distribution, creating a comfortable lighting experience with low UGR values.

With its metal sheet body structure and minimalist design language, it offers a simple and powerful look, and stands out with its slim profile height. Through our cutting and welding applications in our production facility, we can offer project-specific solutions in different lengths and dimensions.

Positioned in office, commercial, and architectural spaces, Darkline offers functional and flexible lighting in one package.

Min-Max Watt:
31 [W]
Lumen:
4000 [lm]
Lumen / Watt:
130 [lm/W]
Technical Documents
General Information
Housing
DKP Metal Sheet
Optics
Multi Matte Black
Paint
Electrostatic Powder Paint
Insulation Class
Class I

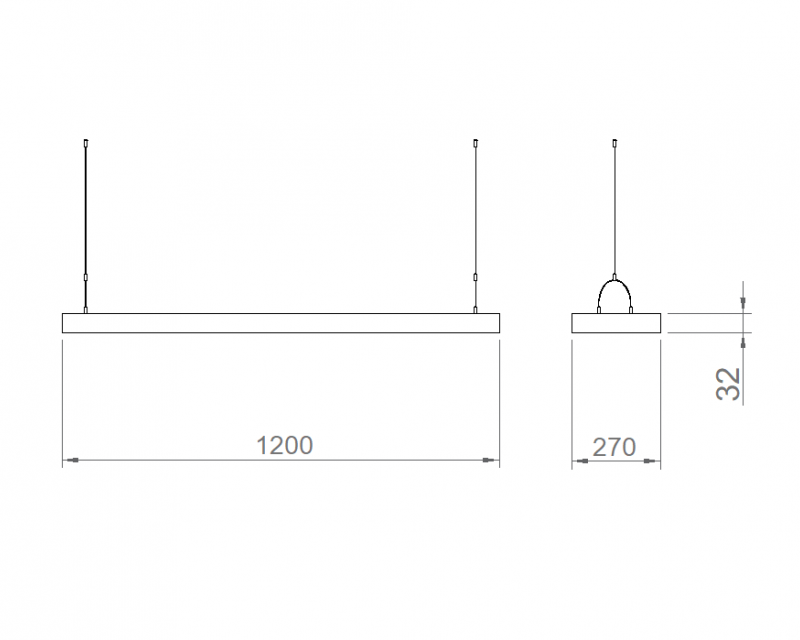

Product Dimensions [mm]
270(W)x32(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
31W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

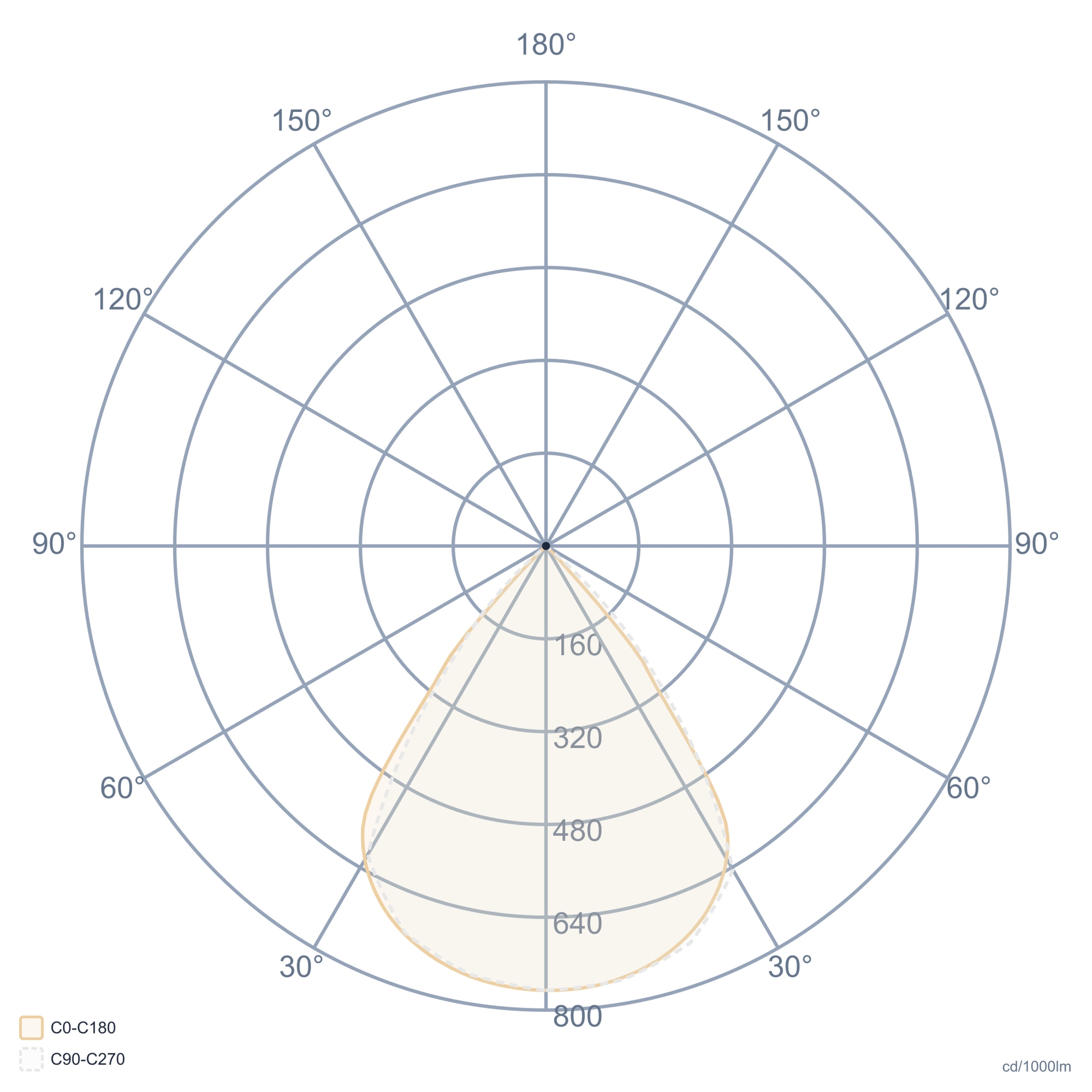

Light Output Angle
80°
UGR Value
UGR ≤ 17
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmAngleCCTL (mm)KgTechnical PagePhotometric File
