WIDE

06144

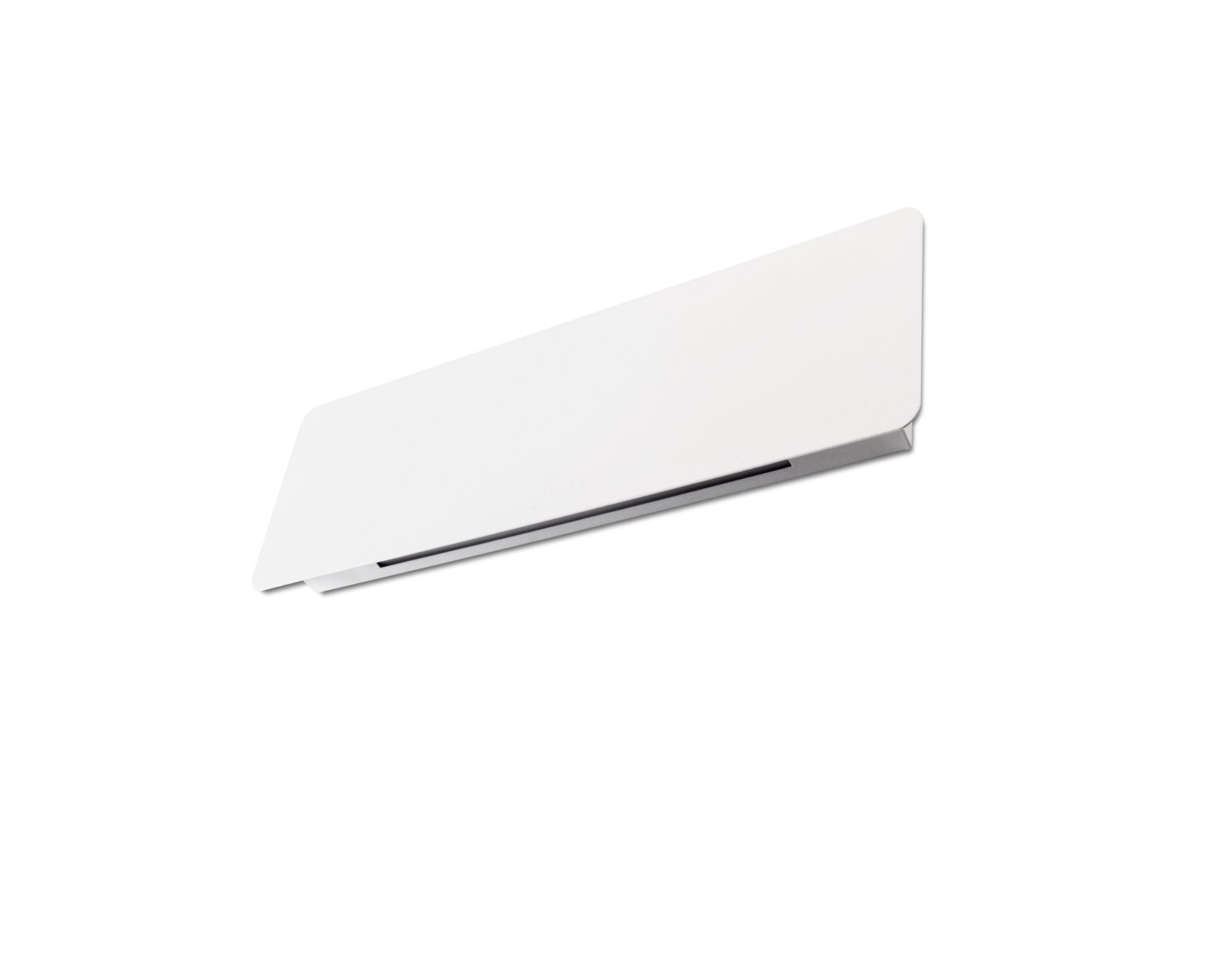

Decorative Wall Sconce with Hidden Lighting Effect

Min-Max Watt:

13-26 [W]

Lumen:

1300-2700 [lm]

Lumen / Watt:

104 [lm/W]

Technical Documents

Technical Page

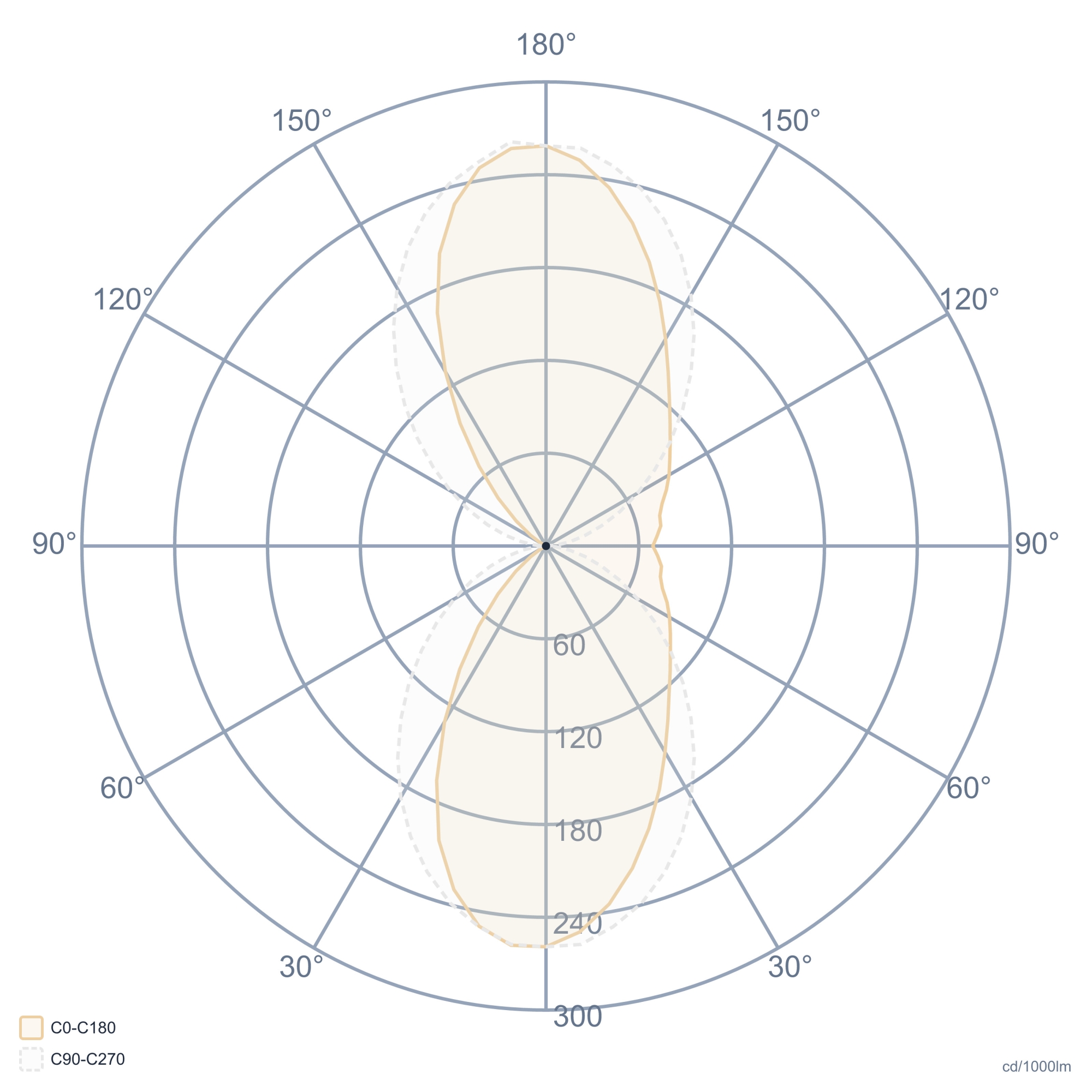

Photometric File

General Information

Meterial

DKP Metal Sheet

Optics

Opal Diffuser

Paint

Electrostatic Powder Paint

Insulation Class

Class I

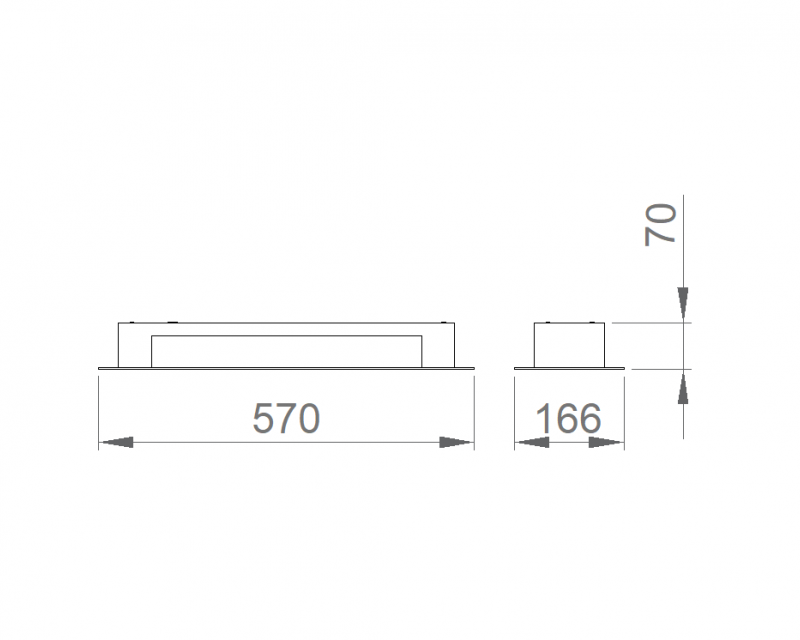

Product Dimensions [mm]

166(W) x 570(L) x 70(H)

Mounting Type

Surface

Mounting Part

Screw Dowel Set

Electrical Info

Power

13-26W

Power Factor

>0.95

Light Source

SMD Mid Power LED

Cabling

Halogen-Free

Input Voltage

220-240V AC / 50-60 Hz

LED Driver

Constant Current

Ambient Temperature

-20°C / +50°C

LED Lifetime L70

>50.000 Hour

Lighting Technology

Light Output Angle

120°

UGR Value

UGR ≤ 22

CRI [Ra]

CRI ≥ 80

Color Bin Value

Mc Adams ≤ 3

Optional

DALI / 1-10V

CRI>90 , 2700K~6500K , Tunable White

Emergency Lighting Unit

Order Code	W	Lm	CCT	WxLxH (mm)	Kg	Reflector Color	Technical Page	Photometric File
