EDGE
06159

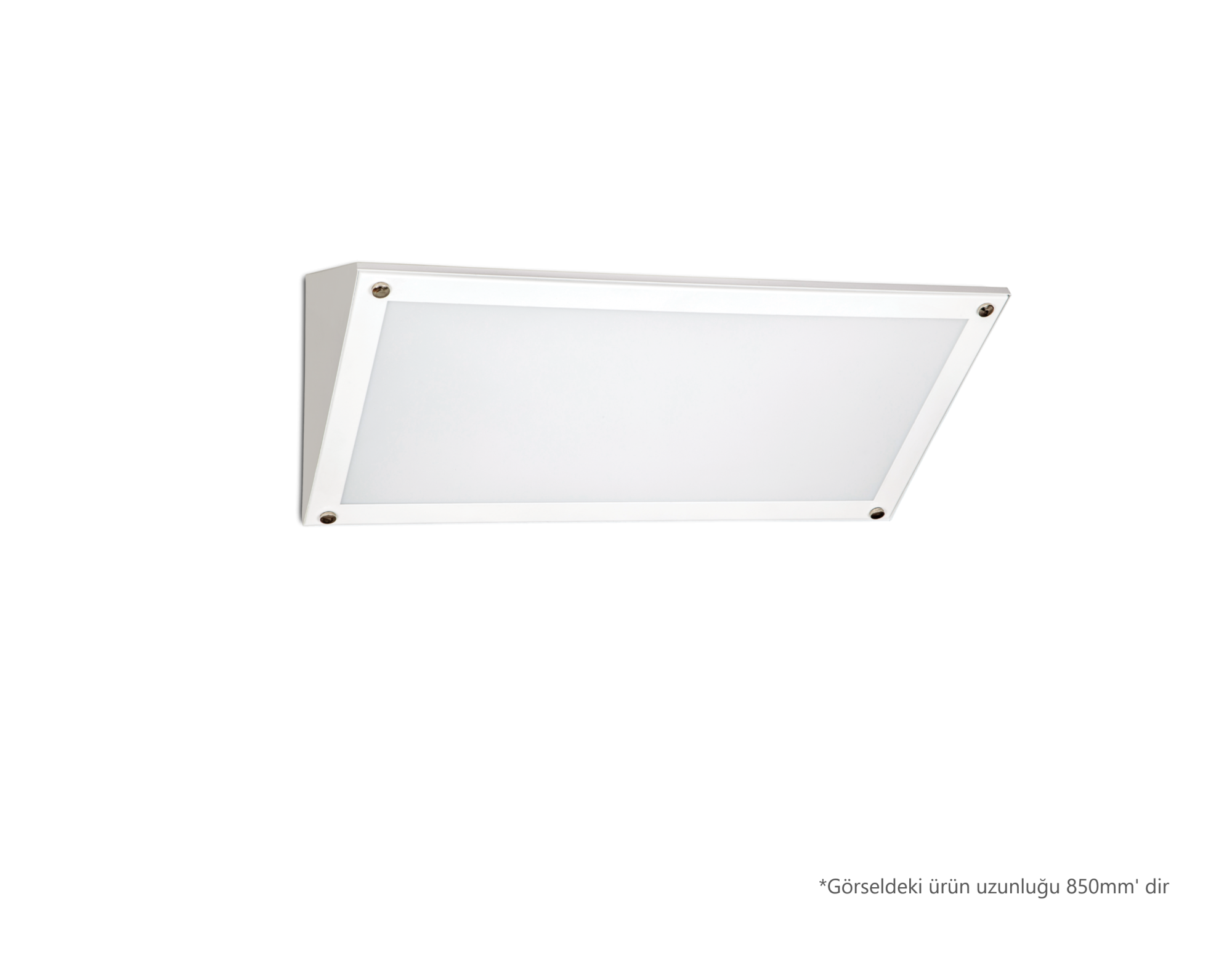

IP54 Surface Mounted Wall Sconce

Edge is a modern wall sconce solution for architectural surfaces with its sloping geometric form and surface mounting. Thanks to its opal diffuser, it distributes light homogeneously, creating comfortable and balanced lighting. With its DKP sheet metal body and IP54 protection class, it offers resistance to dust and moisture, making it suitable for both indoor and protected outdoor applications.

Preferred in corridors, entrance areas, stairwells, hotels, residential projects, and social spaces, Edge adds an aesthetic touch to architectural lighting projects with its simple design, ease of surface mounting, and modern appearance.

Min-Max Watt:
20-60 [W]
Lumen:
1700-6380 [lm]
Lumen / Watt:
106 [lm/W]
Technical Documents
General Information
Meterial
DKP Metal Sheet
Optics
Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class II

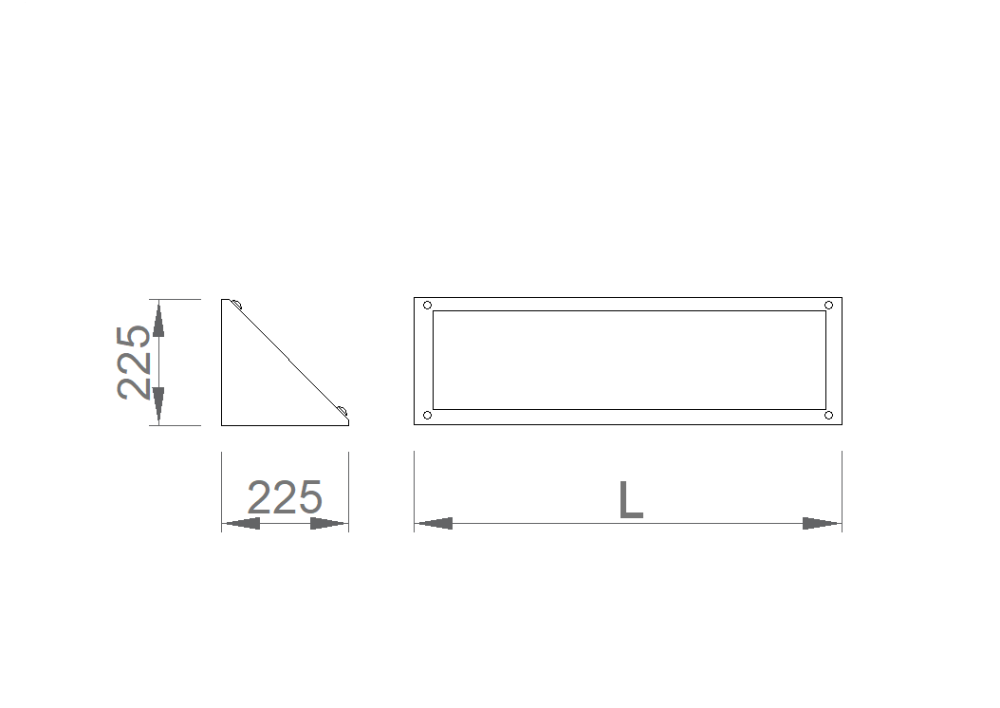

Product Dimensions [mm]
225[W] x 220-430[L] x 225[H]
Mounting Type
Surface
Mounting Part
Screw Dowel Set
Electrical Info
Power
20-60W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology
Light Output Angle
115°
UGR Value
UGR ≤ 19
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTWxLxH (mm)Technical PagePhotometric File
