SKATE-DM
01183
Homogeneous General Lighting, Acoustic Comfort

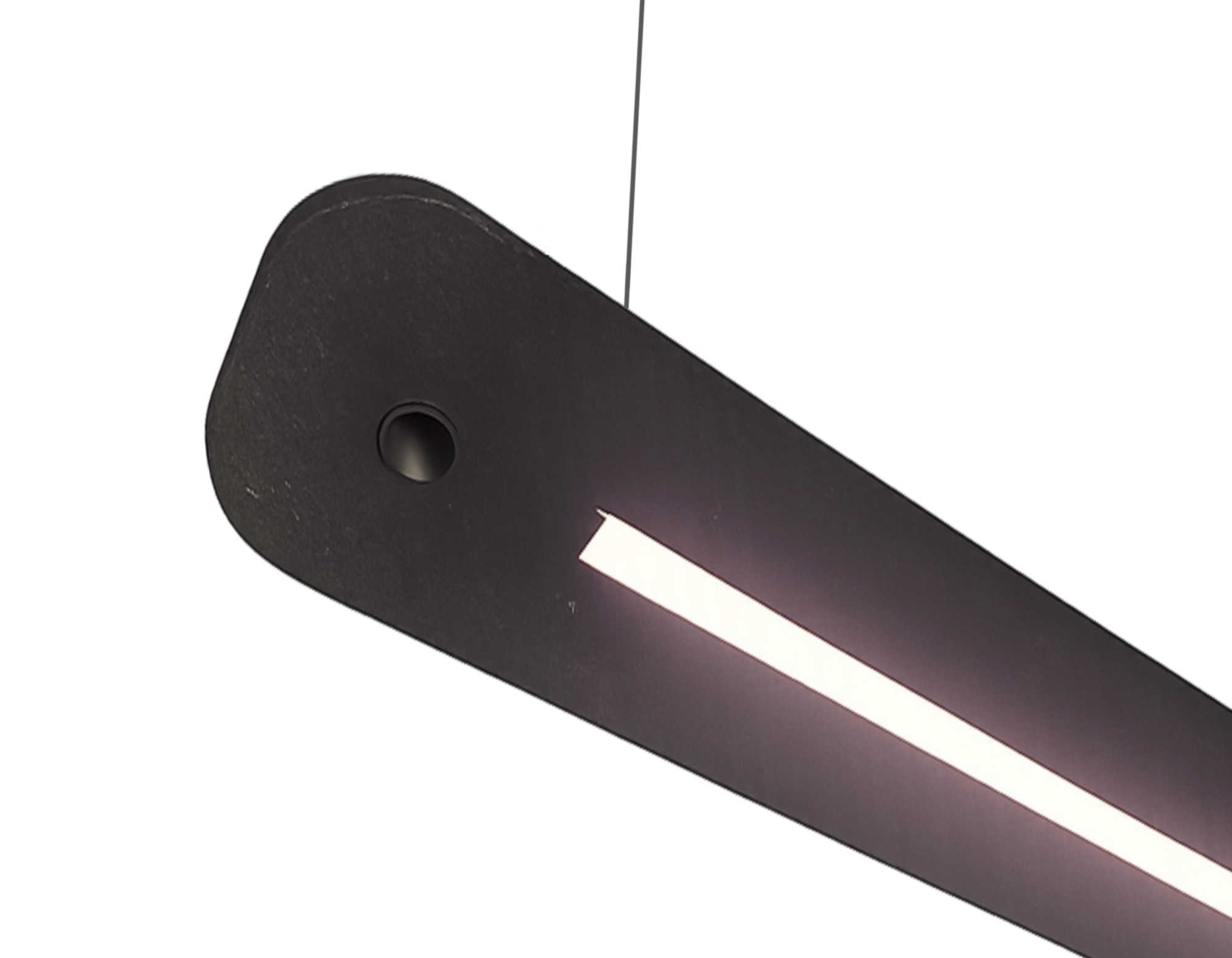

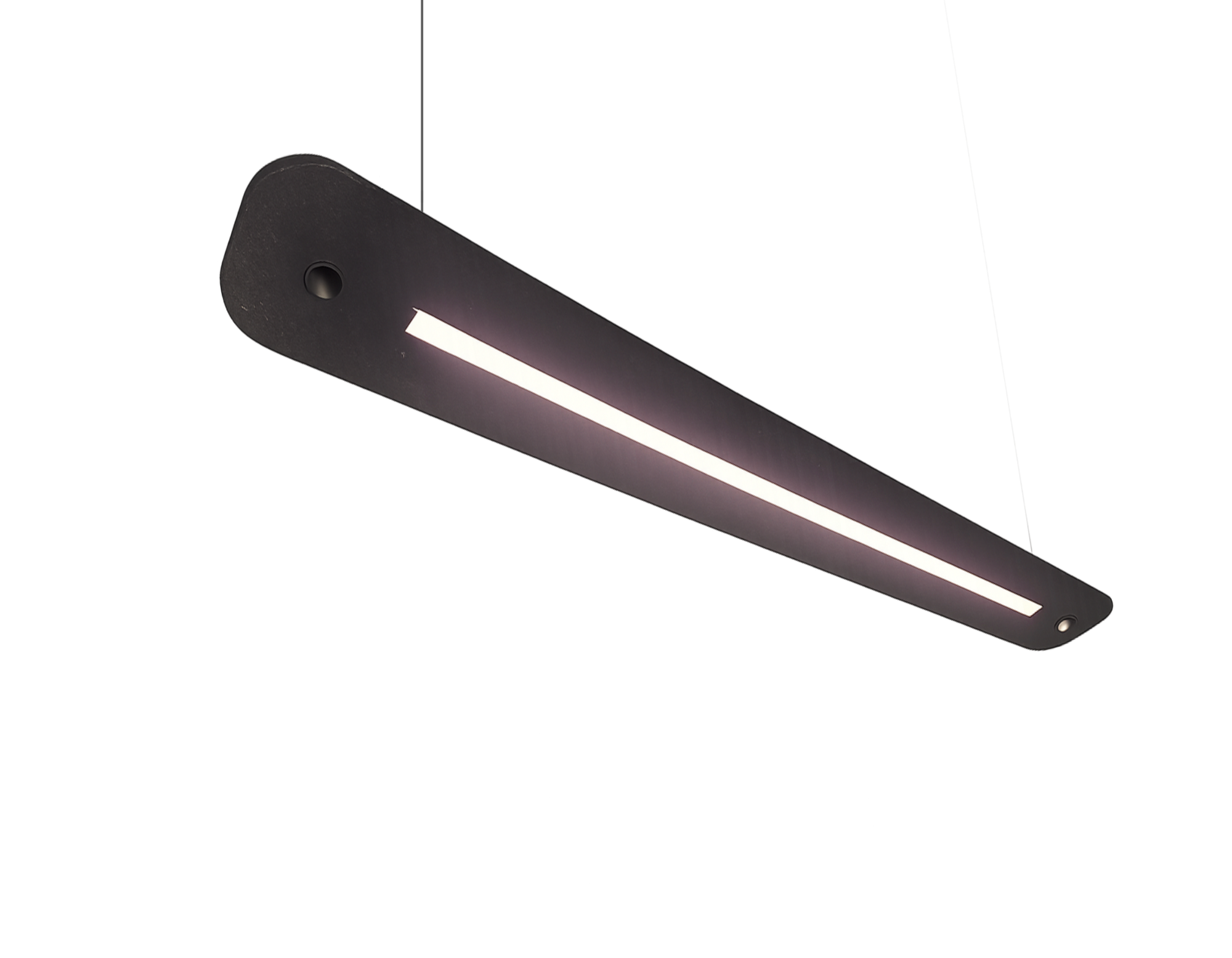

Skate-DM is a hybrid solution that combines sound-absorbing acoustic felt panels with linear lighting featuring an opal diffuser in a single product. The opal diffuser, providing wide light distribution, creates homogeneous and comfortable general lighting in the space, while two integrated spotlights offer accent lighting where needed.

The acoustic felt panel improves sound quality in working environments by reducing echo, and adapts to architecture thanks to different felt colors and customizable panel sizes. It combines acoustic treatment, general lighting, and accent lighting in a single product for offices, meeting rooms, training areas, and social living spaces.

Min-Max Watt:
42+12 [W]
Lumen:
4900 [lm]
Lumen / Watt:
92 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded
Housing
Aluminum Injection (Spot)
Panel
Acoustic Felt
Optics
Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class I

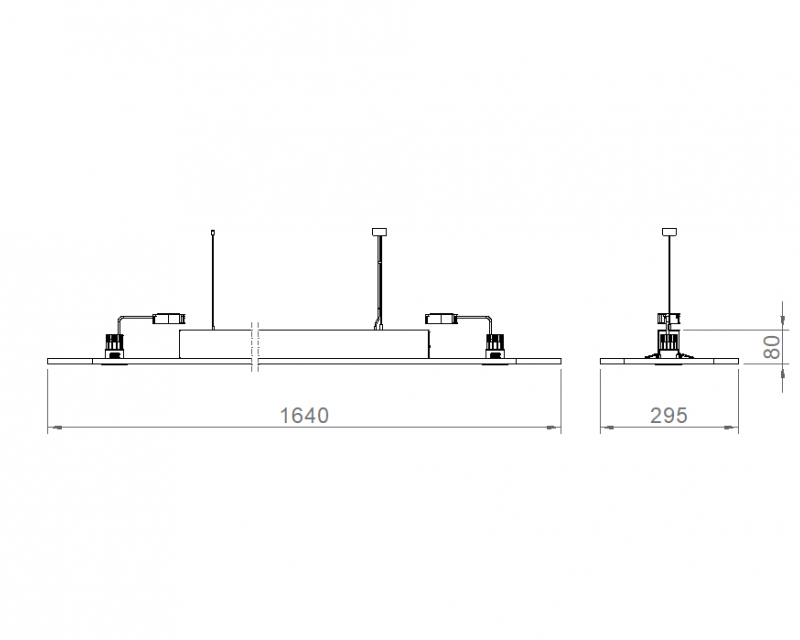

Product Dimensions [mm]
295(W)x1640(L)x80(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
42W+12W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour

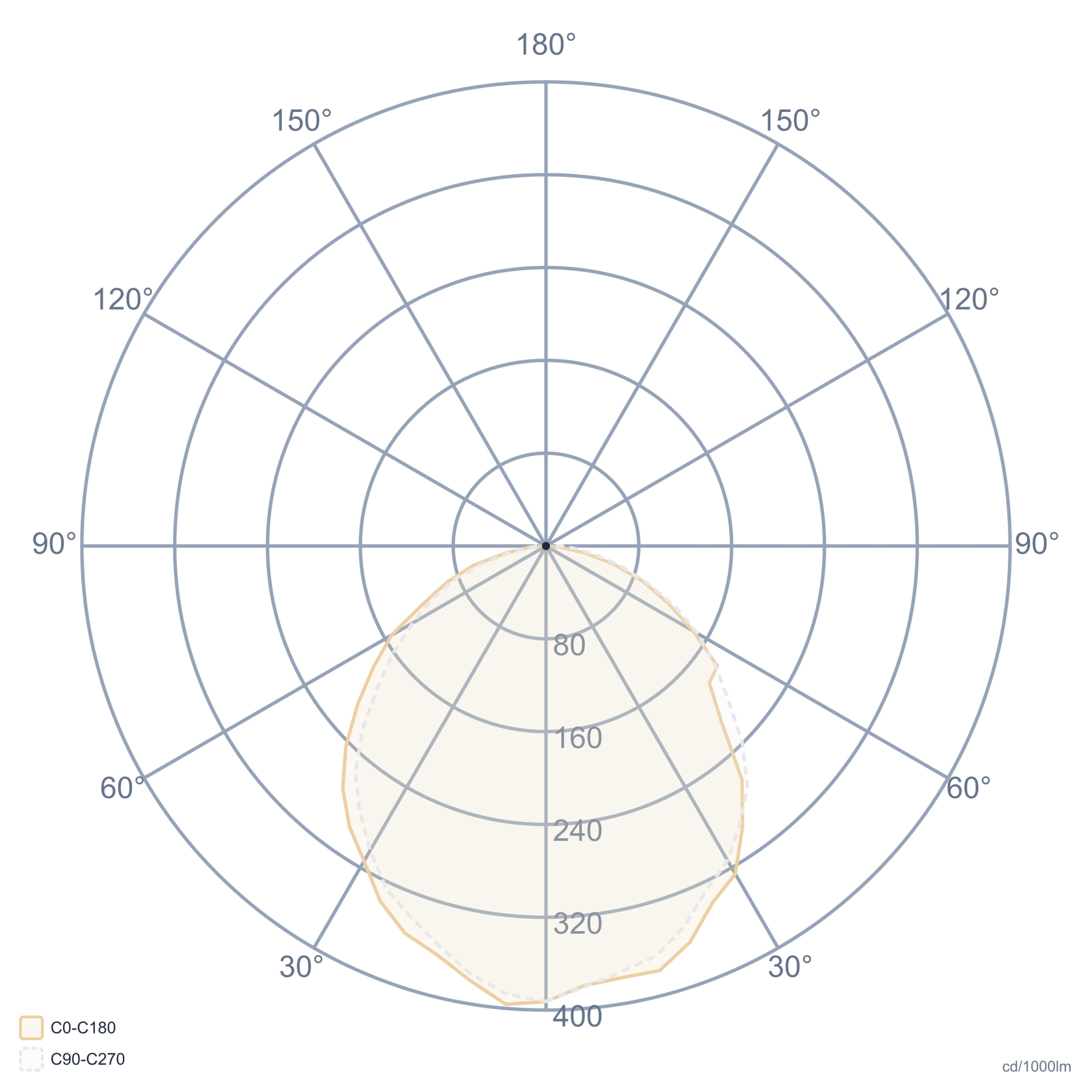

Lighting Technology
Light Output Angle
120°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Thousand Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTWxLxH (mm)KgTechnical PagePhotometric File
