SKATE-D
01183
Homogeneous Light, Acoustic Comfort

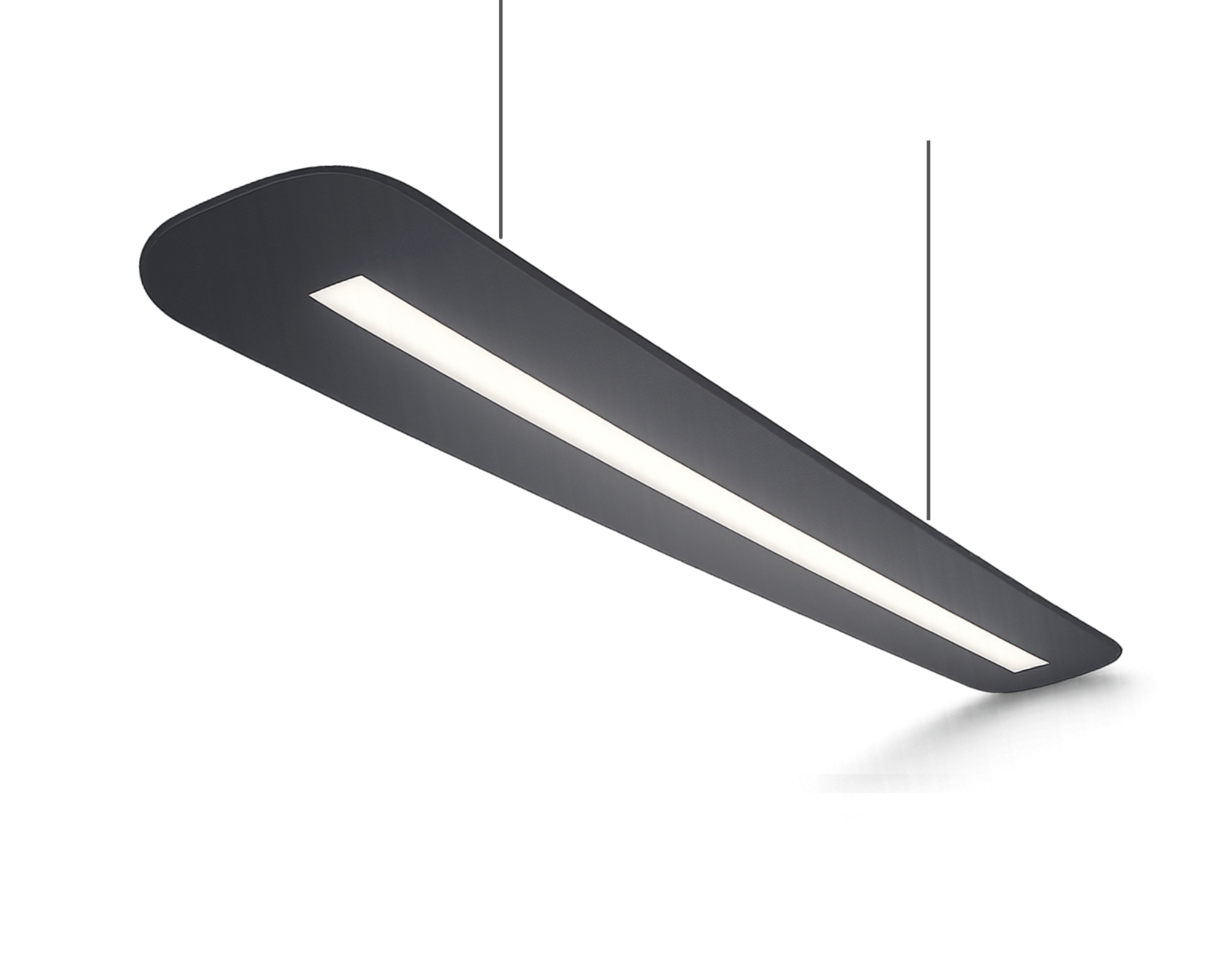

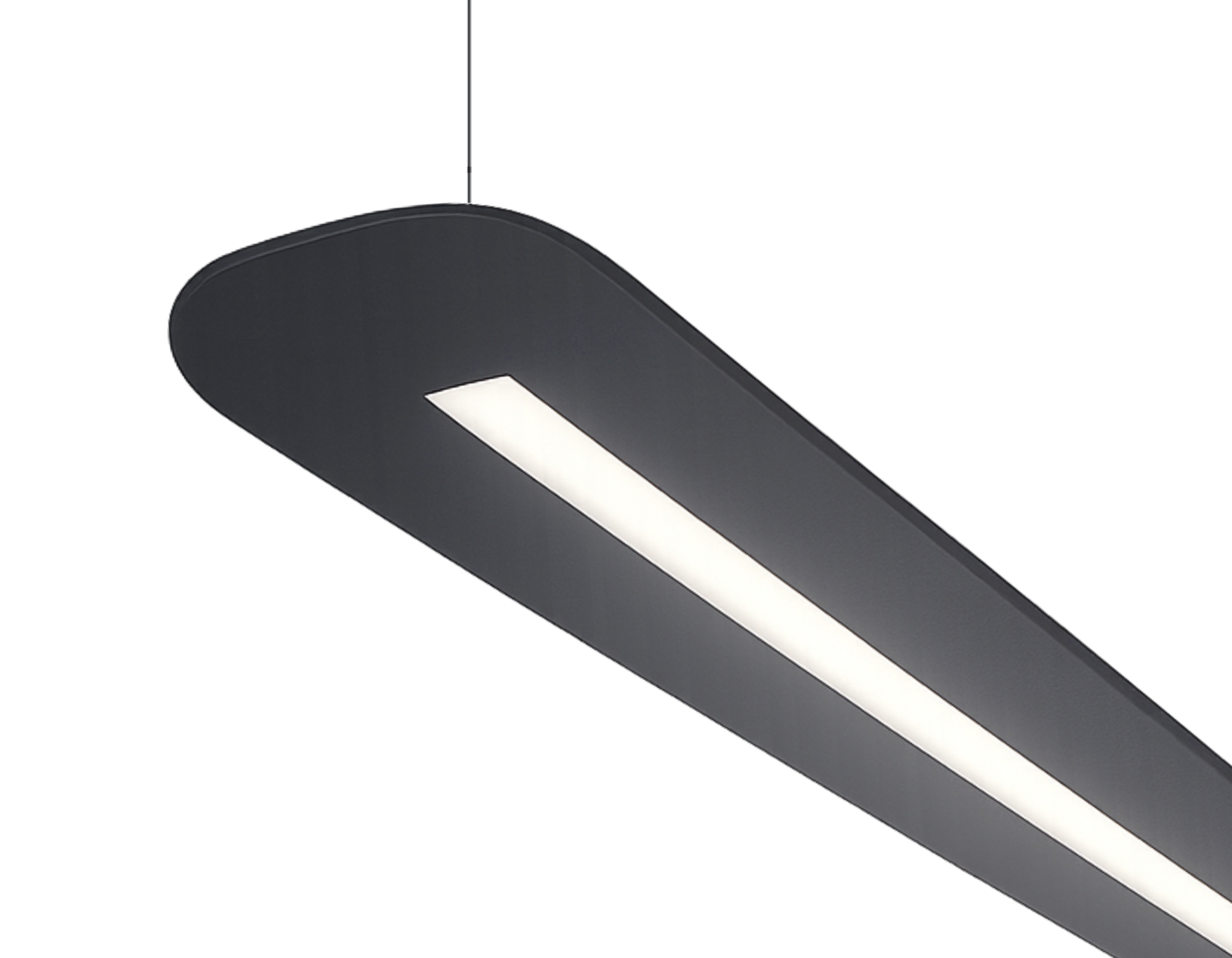

Skate-D combines a high-transmittance opal diffuser with an acoustic felt panel in a single product, offering a homogeneous and uninterrupted lighting experience. Thanks to its wide light distribution, it creates soft and balanced lighting in the space, while the acoustic felt panel reduces echo, increasing sound comfort in working environments.

It adapts to architecture thanks to different felt colors and customizable panel sizes. It provides both acoustic regulation and aesthetically pleasing and comfortable lighting solutions in a single product for open offices, meeting rooms, training areas, and social living spaces.

Min-Max Watt:
42 [W]
Lumen:
3900 [lm]
Lumen / Watt:
95 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded
Panel
Acoustic Felt
Optics
Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class I

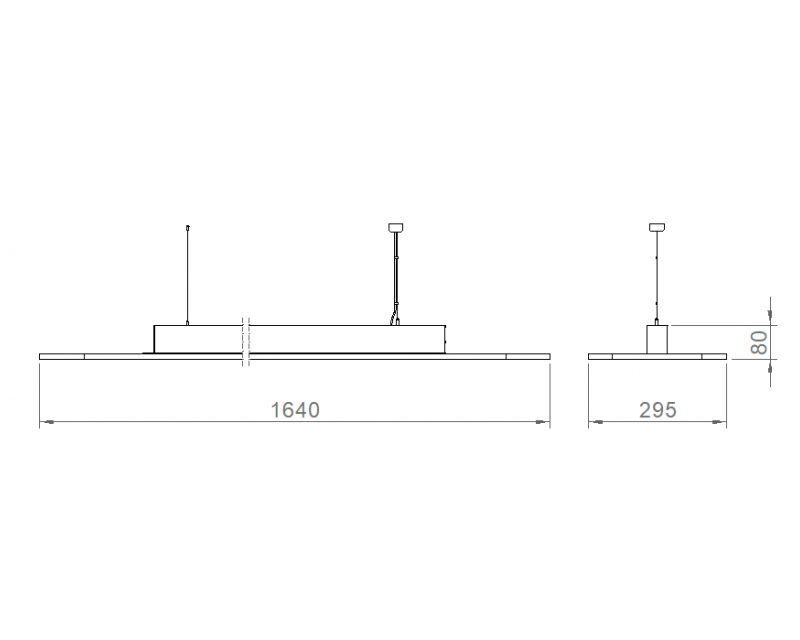

Product Dimensions [mm]
295(W)x1640(L)x80(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
42W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halojen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology
Light Output Angle

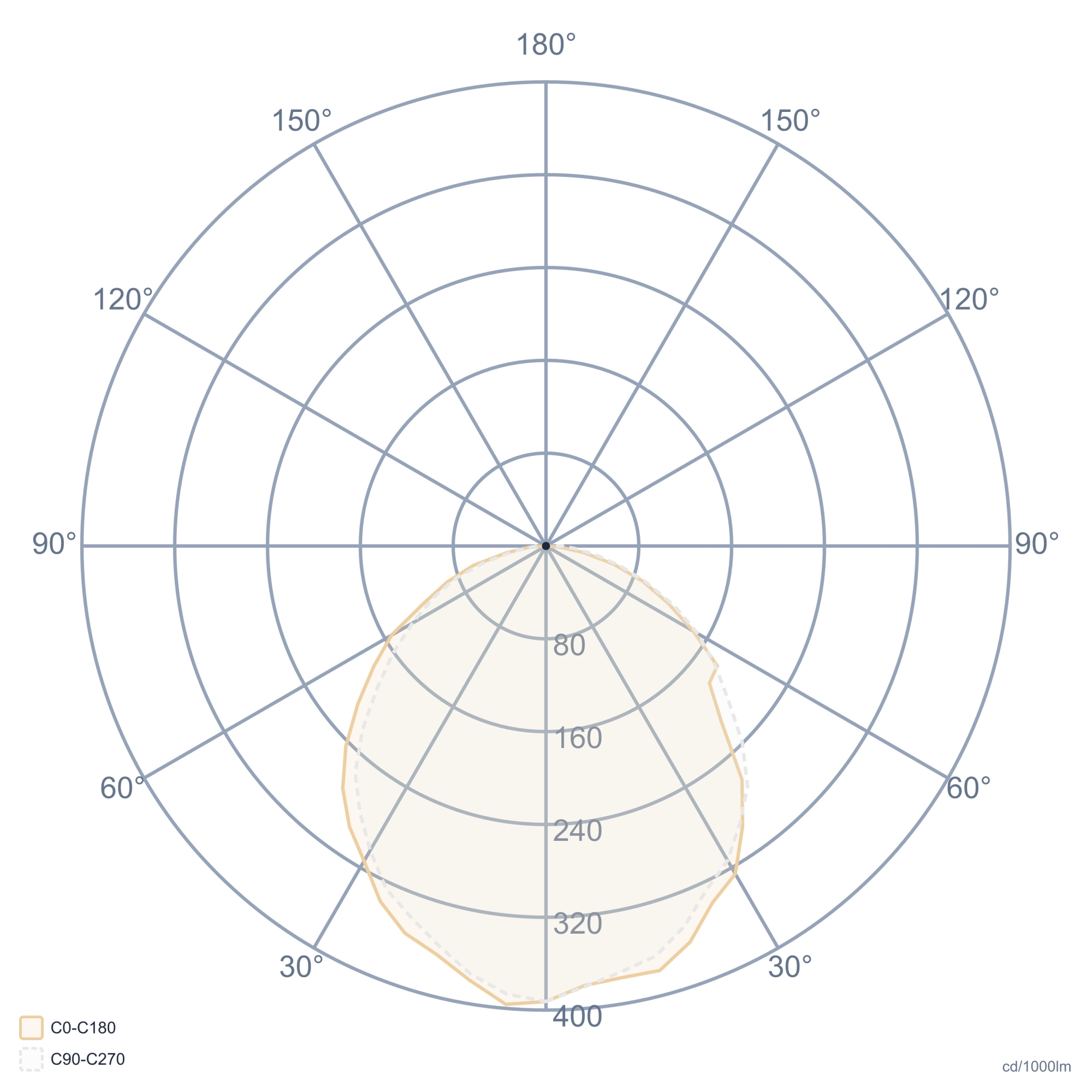

120°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTWxHxL (mm)KgTechnical PagePhotometric File
