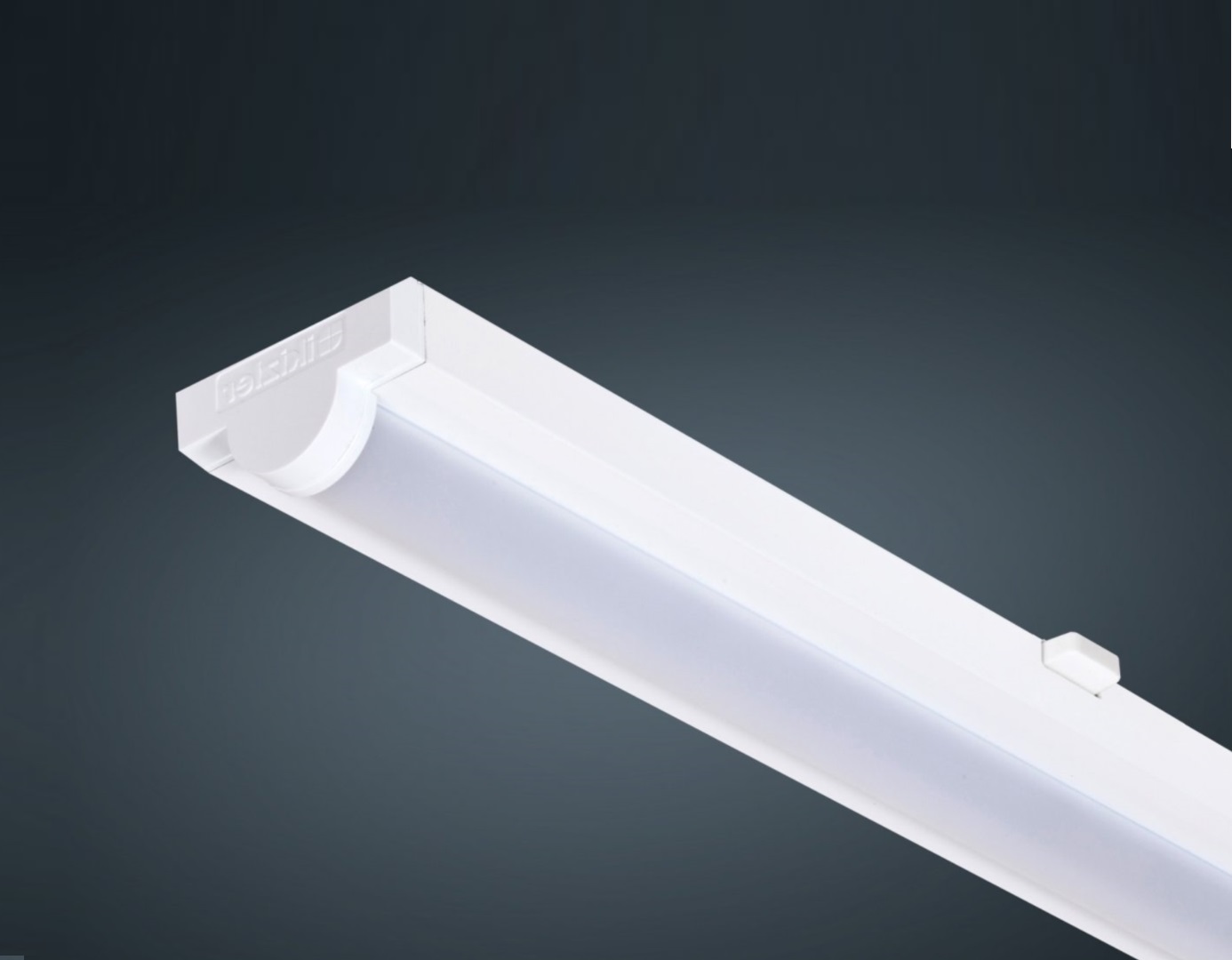

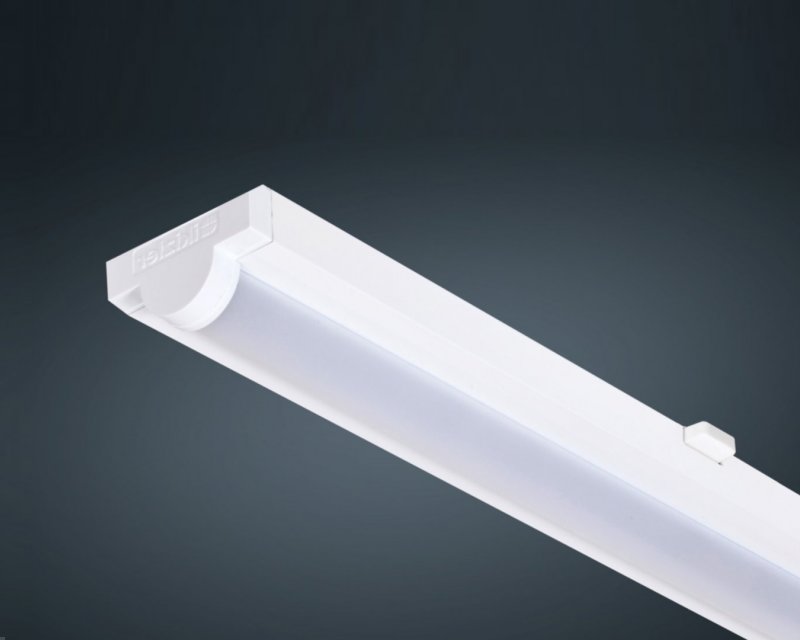

Trunking Lighting Systems / Lighting UnitsRunnel-Lighting Unit
BACK
| Housing | Electrostatic Powder Coated Aluminum Profile |
| Optics | High Light Transmittance Opal Polycarbonate (PC) Diffuser |
| Optics | Symmetrical |
| Light Output Angle | 120° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Order Code | W | Lm | CCT | CRI | L (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|
| 07200.11.40.045 | 35 | 4500 | 4000 | Ra>80 | 1133 | 1,13 | Technical Page | |
| 07200.14.40.056 | 44 | 5600 | 4000 | Ra>80 | 1413 | 1,4 | Technical Page | |
| 07200.16.40.067 | 53 | 6700 | 4000 | Ra>80 | 1693 | 1,65 | Technical Page |
| IP Rating | IP40 |
| IK Rating | IK08 |
Shopping Mall
Supermarket
