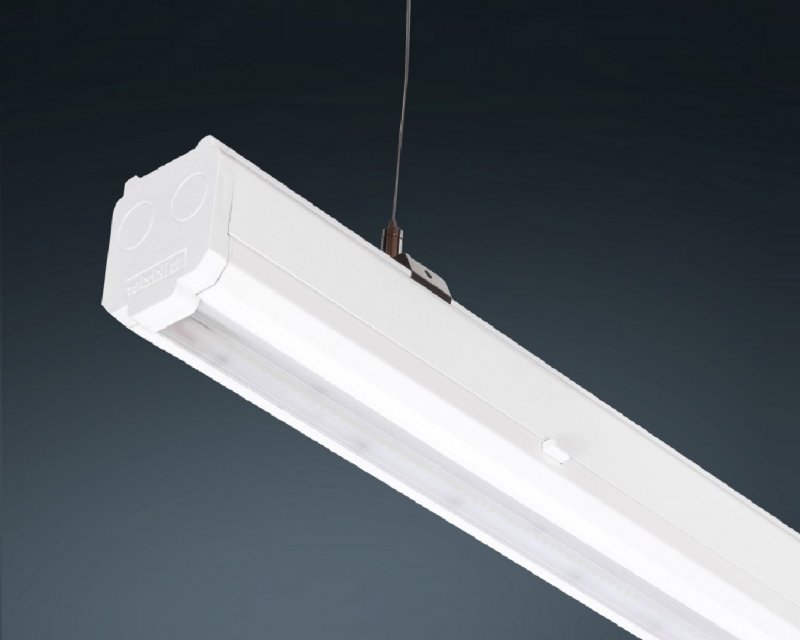

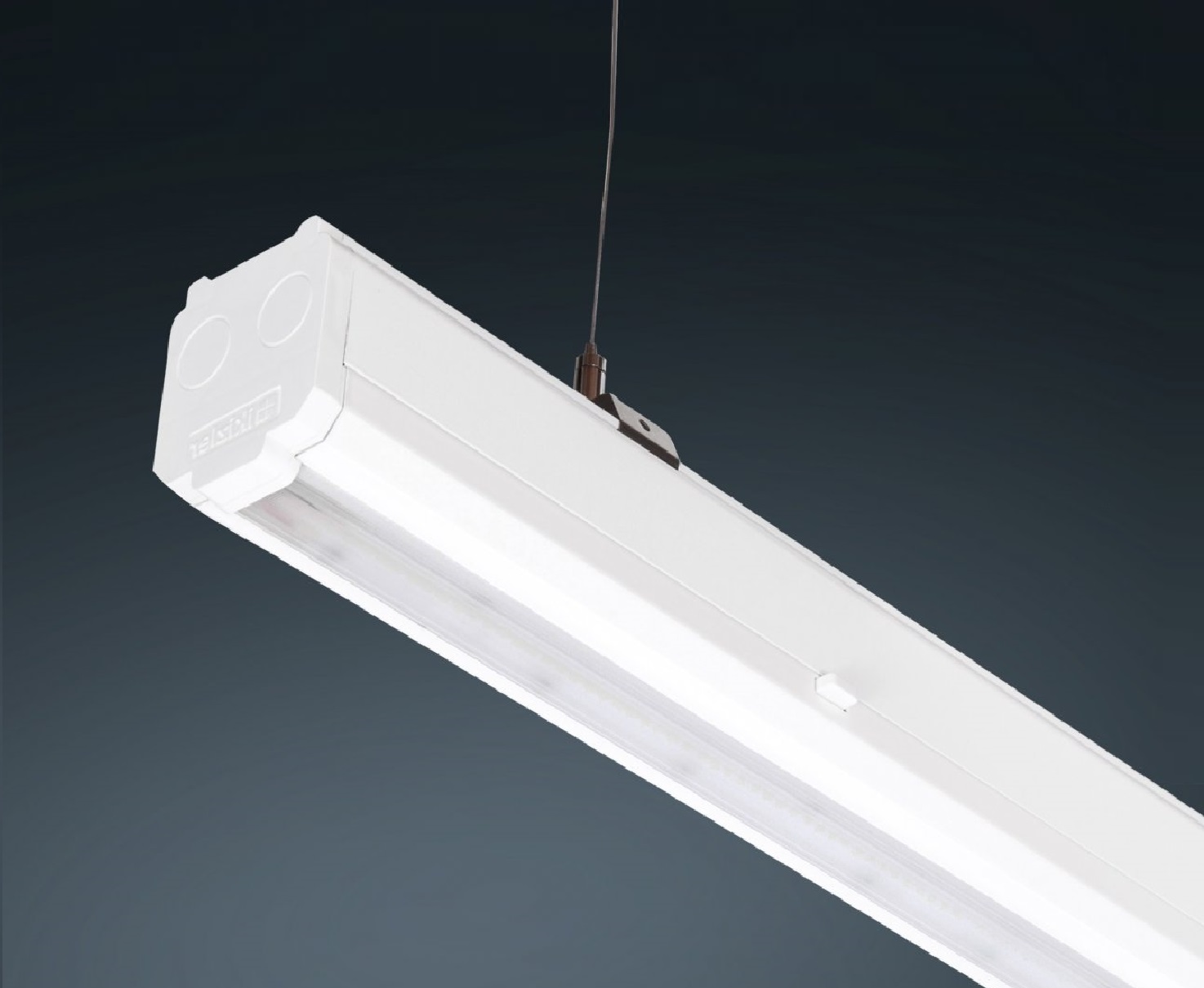

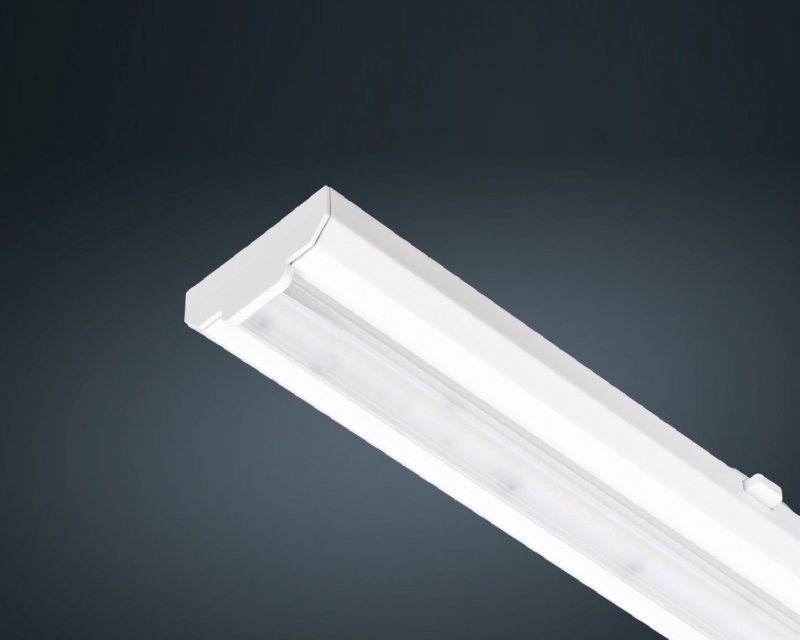

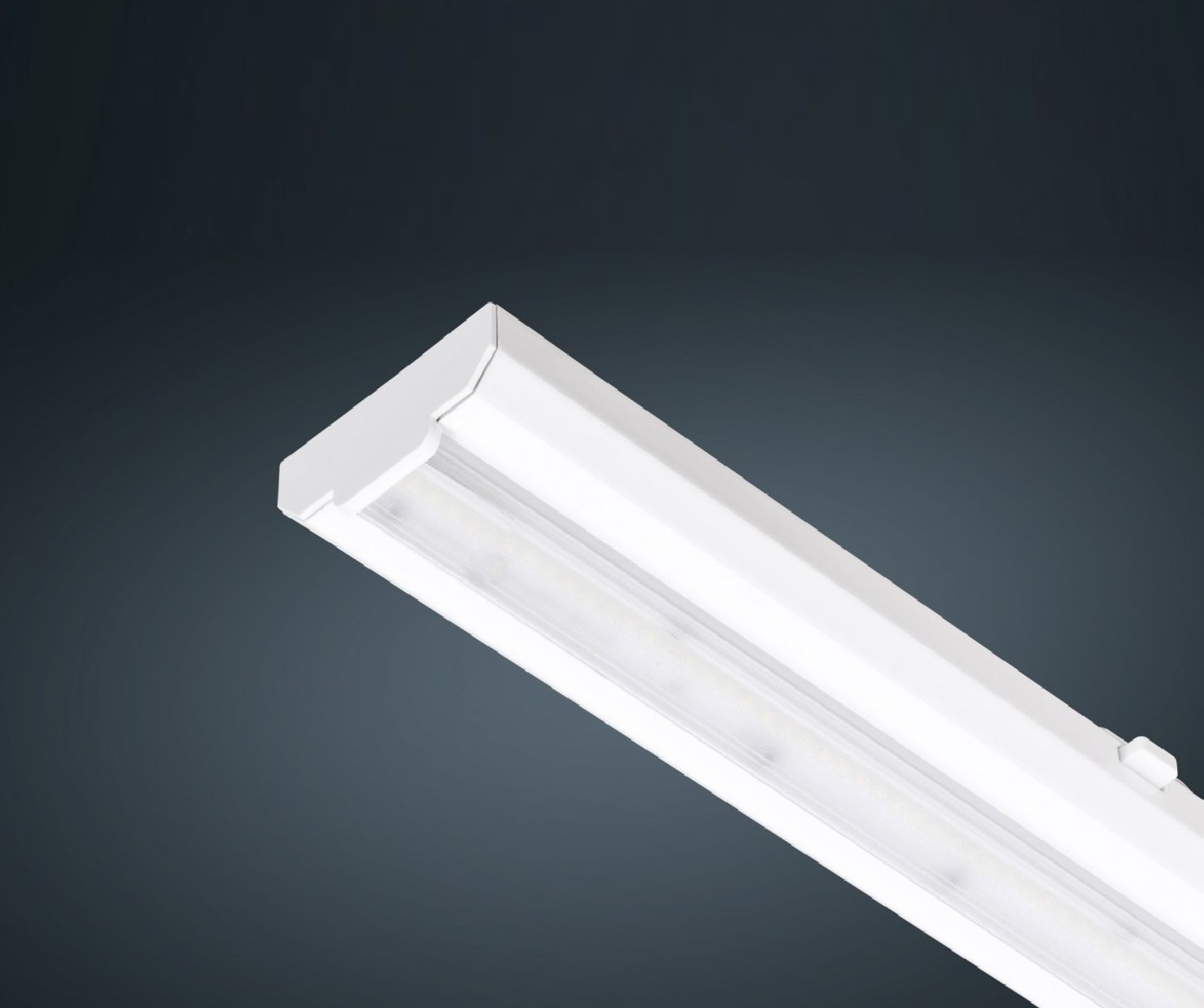

Trunking Lighting Systems / Lighting UnitsContin-Lighting Units
BACK
| Housing | Electrostatic Powder Coated Aluminum Profile |
| Optics | High Light Transmittance Optical Lens |
| Dimensions(mm) | 65x27MM |
| Light Distribution | Symmetrical / Asymmetrical |
| Light Output Angle | 60°Sym / 90°Sym / 40°x100°Sym / 2x25°Asym |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
  |
| Order Code | W | Lm | CCT | Angle | L (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|
| 07200.11.40.075/90 | 48 | 7500 | 4000 | 90° | 1133 | 1,13 | Technical Page | Ldt |
| 07200.14.40.093/90 | 60 | 9300 | 4000 | 90° | 1413 | 1,4 | Technical Page | Ldt |
| 07200.16.40.112/90 | 72 | 11200 | 4000 | 90° | 1693 | 1,65 | Technical Page | Ldt |
| 07200.11.40.075/AS | 48 | 7500 | 4000 | 25° Asym | 1133 | 1,13 | Technical Page | Ldt |
| 07200.14.40.093/AS | 60 | 9300 | 4000 | 25° Asym | 1413 | 1,4 | Technical Page | Ldt |
| 07200.16.40.112/AS | 72 | 11200 | 4000 | 25° Asym | 1693 | 1,65 | Technical Page | Ldt |
| IP Rating | IP40 |
| IK Rating | IK08 |
