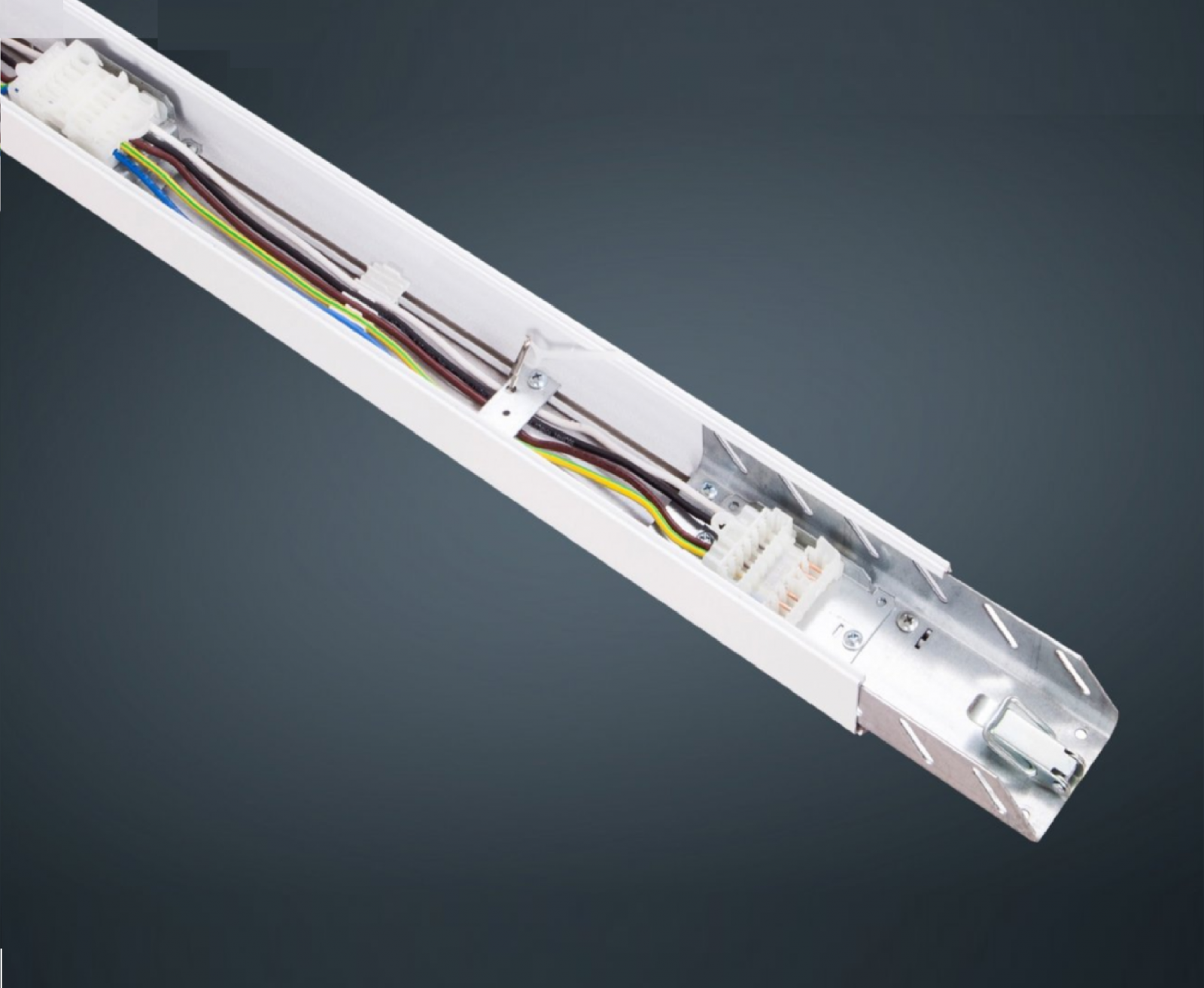

Trunking Lighting Systems / Energy UnitEnergy Units
BACK
| Housing | |
| Connector | |
| Cable |
| Order Code | Number of Conductors | L1(mm) | L2(mm) | Cable Connections | Description | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|
| 07200.000.005.002 | 5 | 1413 | 1493 | L1-L2-L3-N-S | Açık-Kapalı | 1,65 | Technical Page | |
| 07200.000.005.004 | 5 | 2826 | 2906 | L1-L2-L3-N-S | Açık-Kapalı | 3,30 | Technical Page | |
| 07200.000.007.002 | 7 | 1413 | 1493 | L1-L2-L3-N-S-(D1-D2) / (EL-EN) | DALI veya KİT | 1,75 | Technical Page | |
| 07200.000.007.004 | 7 | 2826 | 2906 | L1-L2-L3-N-S-(D1-D2) / (EL-EN) | DALI veya KİT | 3,50 | Technical Page | |
| 07200.000.009.002 | 9 | 1413 | 1493 | L1-L2-L3-N-S-D1-D2-EL-EN | DALI ve KİT | 1,85 | Technical Page | |
| 07200.000.009.004 | 9 | 2826 | 2906 | L1-L2-L3-N-S-D1-D2-EL-EN | DALI ve KİT | 3,70 | Technical Page |
