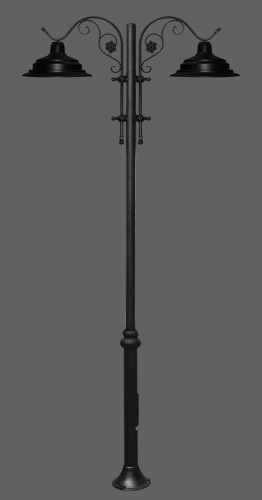

Outdoor Lighting / Urban LightingViyola
BACK
| Housing | Corrosion Resistant Aluminum Injection Body |
| Pole | Corrosion Resistant Galvanized Steel Body |
| Optics | PMMA Lens + Glass |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical 60° / Asymmetrical 150° |
| Light Output Angle | Symmetrical 60° / Asymmetrical 150° |
| UGR Value | UGR ≤ 25 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |
| Order Code | W | Lm | CCT | WxL (mm) | Productivity | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|
| 09593.13.30.106 | 2x41 | 10130 | 3000 | 1400x3000 | 130 Lm/W | Technical Page | |
| 09593.13.40.106 | 2x41 | 10660 | 4000 | 1400x3000 | 130 Lm/W | Technical Page | |
| 09593.13.30.148 | 2x57 | 14080 | 3000 | 1400x4000 | 130 Lm/W | Technical Page | |
| 09593.13.40.148 | 2x57 | 14820 | 4000 | 1400x4000 | 130 Lm/W | Technical Page | |
| 09593.13.30.221 | 2x85 | 21000 | 3000 | 1400x4500 | 130 Lm/W | Technical Page | |
| 09593.13.40.221 | 2x85 | 22100 | 4000 | 1400x4500 | 130 Lm/W | Technical Page | |
| 09593.13.30.291 | 2x112 | 28500 | 3000 | 1400x6000 | 130 Lm/W | Technical Page | |
| 09593.13.40.291 | 2x112 | 29200 | 4000 | 1400x6000 | 130 Lm/W | Technical Page |
| IP Rating | IP65 |
| IK Rating | IK08 |
Shopping Mall
Parking lot
Park and Garden
