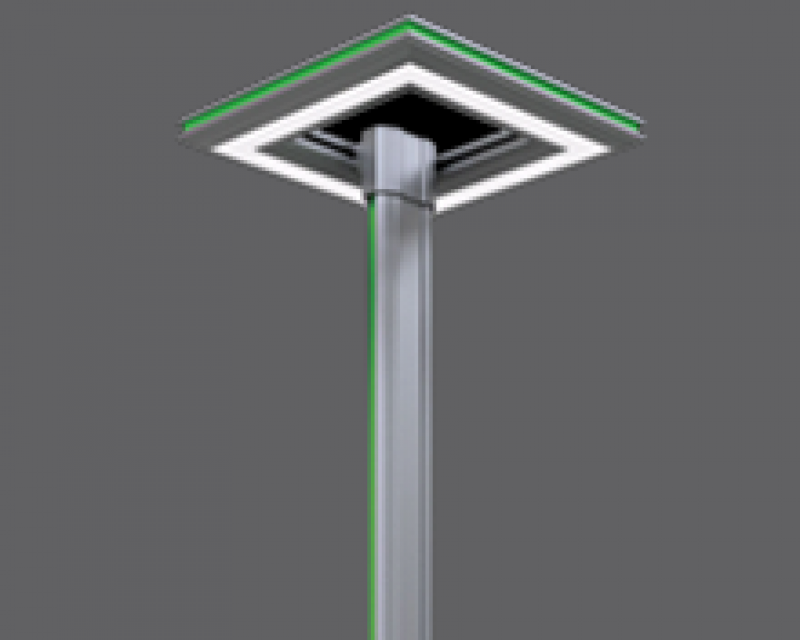

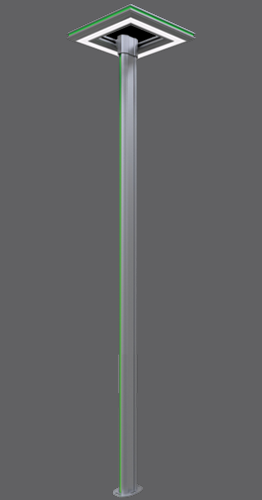

Outdoor Lighting / Urban LightingAlfot-K
BACK
| Housing | Corrosion Resistant Aluminum Extrusion Body |
| Pole | Corrosion Resistant Galvanized Steel Body |
| Optics | PMMA Lens + Glass |
| Paint / Color | Electrostatic Powder Paint |
| Optics | Symmetrical 60° / Asymmetrical 150° |
| Light Output Angle | Symmetrical 60° / Asymmetrical 150° |
| UGR Value | UGR ≤ 25 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |
| Order Code | W | Lm | CCT | WxH (mm) | Productivity | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|
| 09595.44.30.052 | 40 | 5100 | 3000 | 400x4000 | 130 Lm/W | Technical Page | |
| 09595.44.40.052 | 40 | 5200 | 4000 | 400x4000 | 130 Lm/W | Technical Page | |
| 09595.44.30.078 | 60 | 7600 | 3000 | 400x4000 | 130 Lm/W | Technical Page | |
| 09595.44.40.078 | 60 | 7800 | 4000 | 400x4000 | 130 Lm/W | Technical Page | |
| 09595.44.30.117 | 90 | 11500 | 3000 | 400x4000 | 130 Lm/W | Technical Page | |
| 09595.44.40.117 | 90 | 11700 | 4000 | 400x4000 | 130 Lm/W | Technical Page | |
| 09595.44.30.156 | 120 | 15500 | 3000 | 400x4000 | 130 Lm/W | Technical Page | |
| 09595.44.40.156 | 120 | 15600 | 4000 | 400x4000 | 130 Lm/W | Technical Page |
| IP Rating | IP65 |
| IK Rating | IK08 |
Parking lot
Park and Garden
