Outdoor Lighting / Outdoor LightingVektor
BACK
| Housing | Aluminum Injection Body |
| Optics | Acrylic Optical Lens |
| Glass | Tempered, Clear Glass Diffuser |
| Paint | Electrostatic Powder Paint |
| Optics | Asymmetrical |
| Light Output Angle | 8°,18°,40° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 70 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |

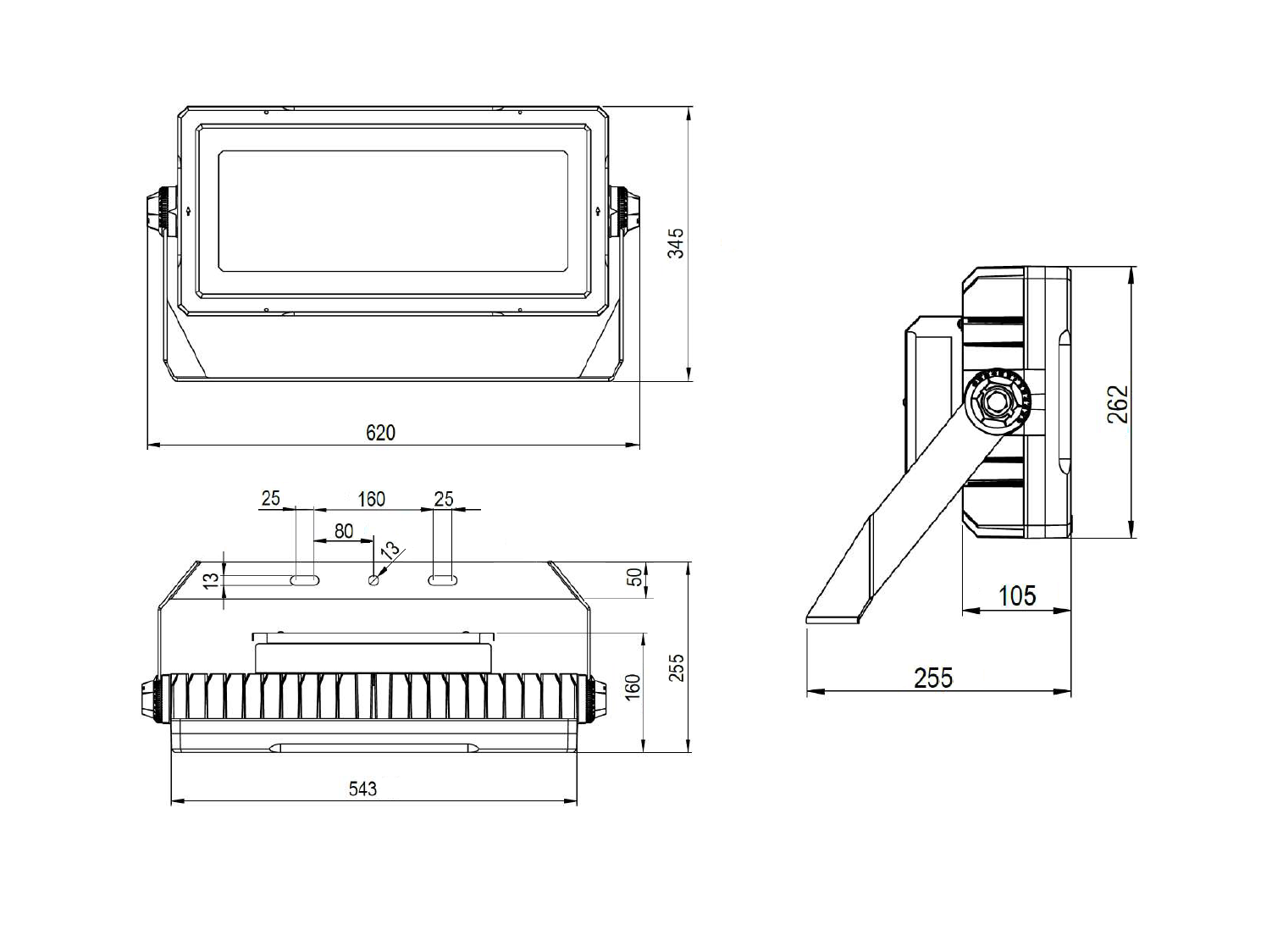

| Order Code | W | Lm | Productivity | CCT | CRI | Angle | WxLxH (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|---|
| 09372.12.30.052 | 400 | 52000 | +190 Lm/W | 3000 | Ra>70 | 8°,18°,40° | 345x621x255 | 12 kg | Technical Page | |
| 09372.12.40.052 | 400 | 52000 | +190 Lm/W | 4000 | Ra>70 | 8°,18°,40° | 345x621x255 | 12 kg | Technical Page | |
| 09372.12.57.052 | 400 | 52000 | +190 Lm/W | 5700 | Ra>70 | 8°,18°,40° | 345x621x255 | 12 kg | Technical Page | |
| 09372.12.65.052 | 400 | 52000 | +190 Lm/W | 6500 | Ra>70 | 8°,18°,40° | 345x621x255 | 12 kg | Technical Page |
| IP Rating | IP66 |
| IK Rating | IK08 |
Humid Environment
Parking lot
Park and Garden
Tunnel
