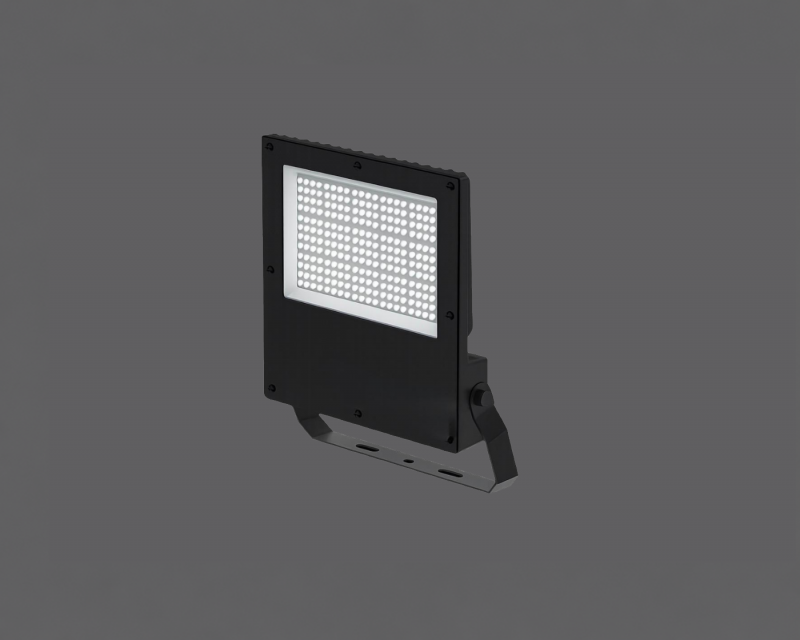

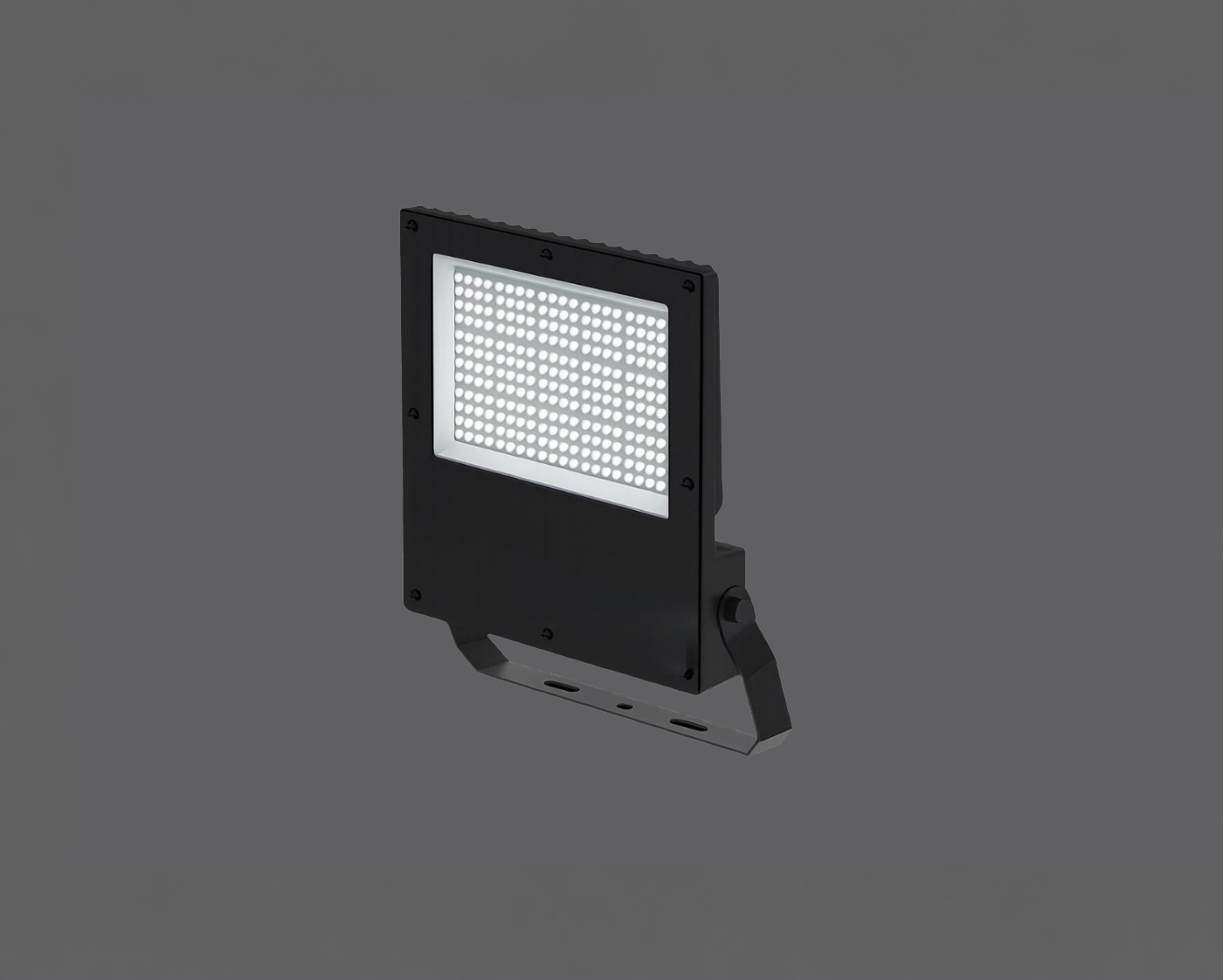

Outdoor Lighting / ProjectorTitan-L
BACK
| Housing | Aluminum Injection |
| Glass | Tempered Clear Glass |
| Optics | PMMA Optical Lens |
| Paint | Electrostatic Powder Paint |

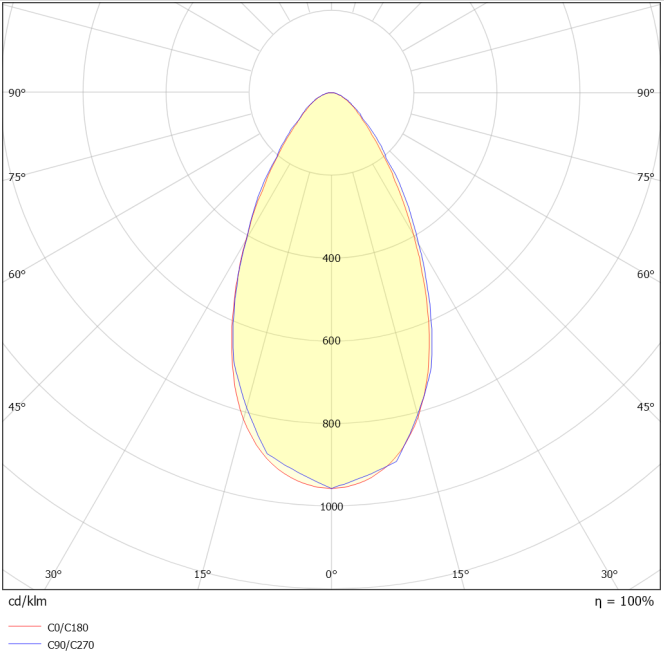

| Light Distribution | Symmetric - Asymmetric |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 70 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |
| Order Code | W | Lm | Productivity | CCT | CRI | WxLxH (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 09246.43.40.280 | 200 | 28000 | 140 lm/W | 4000 | Ra>70 | 386x415x63 | 5,3 | Technical Page | Ldt |
| 09246.43.40.312 | 240 | 31200 | 130 lm/W | 4000 | Ra>70 | 386x415x63 | 5,3 | Technical Page | Ldt |
| IP Rating | IP66 |
| IK Rating | IK07 |
