Outdoor Lighting / ProjectorScope
BACK
| Housing | Die-cast Aluminum Body |
| Optics | Acrylic Optical Lens for Projector/Tunnel Lighting |
| Glass | Tempered, Clear Glass Diffuser |
| Paint | Electrostatic Powder Paint |
| Light Distribution | Symmetrical |
| Light Output Angle | 50°-25° |
| UGR Value | UGR ≤ 25 |
| CRI | CRI ≥ 70 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |

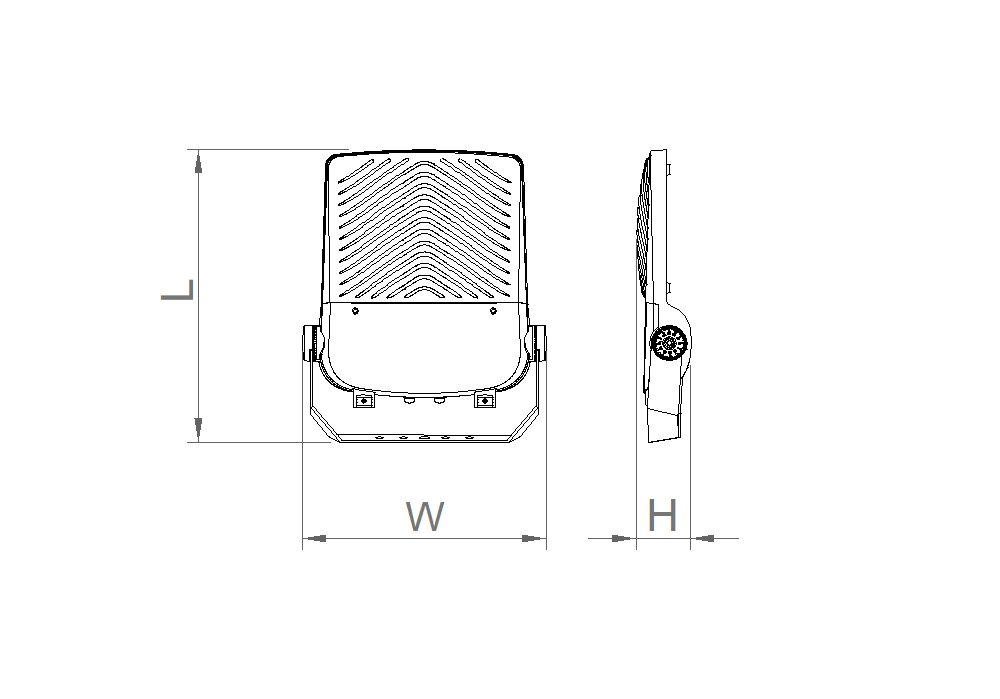

| Order Code | W | Lm | CCT | CRI | WxLxH (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|
| 09394.44.40.084 | 70 | 9650 | 4000 | Ra>70 | 400x490x90 | 8,9 | Technical Page | Ldt |
| 09394.44.40.120 | 100 | 12700 | 4000 | Ra>70 | 400x490x90 | 8,9 | Technical Page | Ldt |
| 09394.44.40.156 | 130 | 15600 | 4000 | Ra>70 | 400x490x90 | 8,9 | Technical Page | Ldt |
| 09394.44.40.198 | 165 | 20830 | 4000 | Ra>70 | 400x490x90 | 8,9 | Technical Page | Ldt |
| 09394.44.40.240 | 200 | 24000 | 4000 | Ra>70 | 490x600x100 | 13,6 | Technical Page | Ldt |
| 09394.44.40.288 | 240 | 28800 | 4000 | Ra>70 | 490x600x100 | 13,6 | Technical Page | Ldt |
| 09394.44.40.312 | 260 | 34830 | 4000 | Ra>70 | 490x600x100 | 13,6 | Technical Page | Ldt |
| IP Rating | IP66 |
| IK Rating | IK08/10 |
Warehouse
Humid Environment
Sports Complex
Park and Garden
Tunnel
