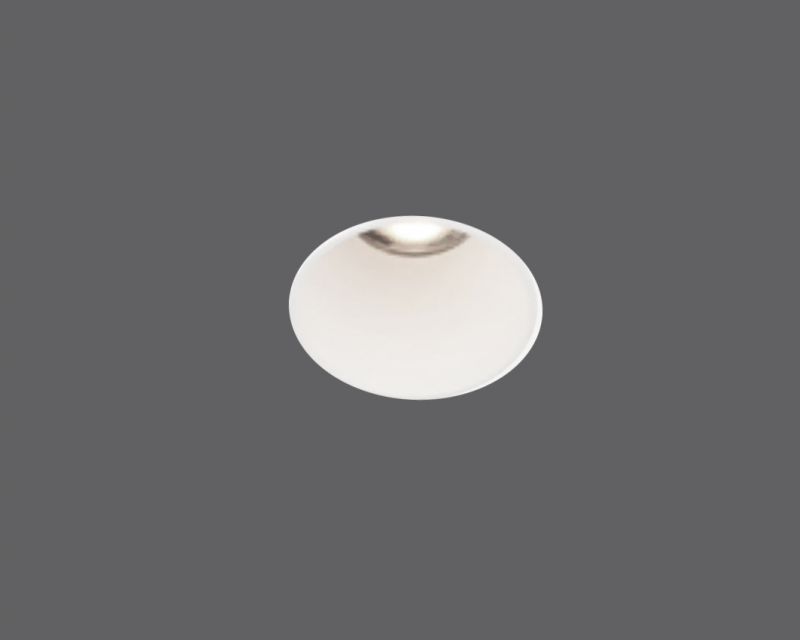

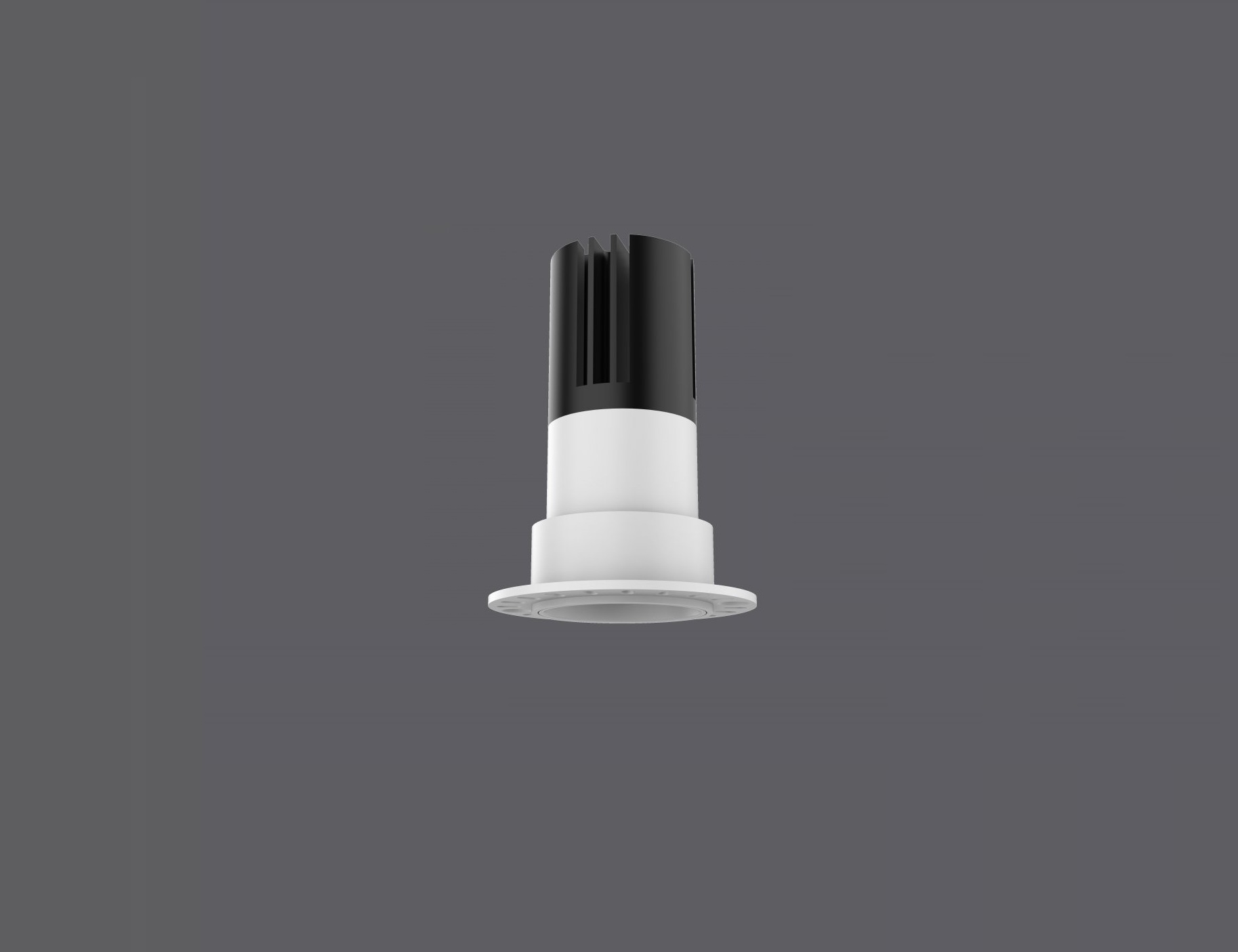

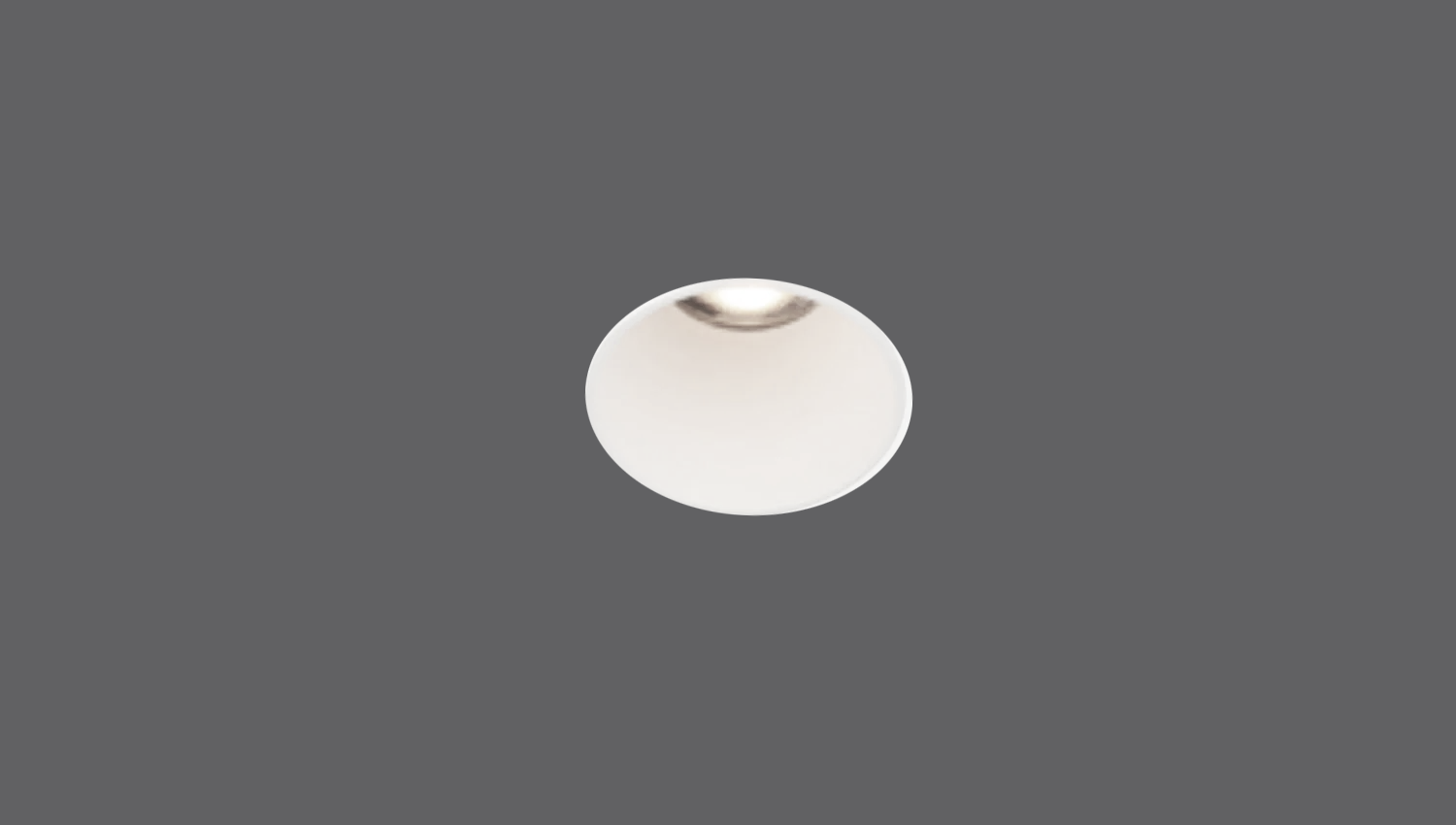

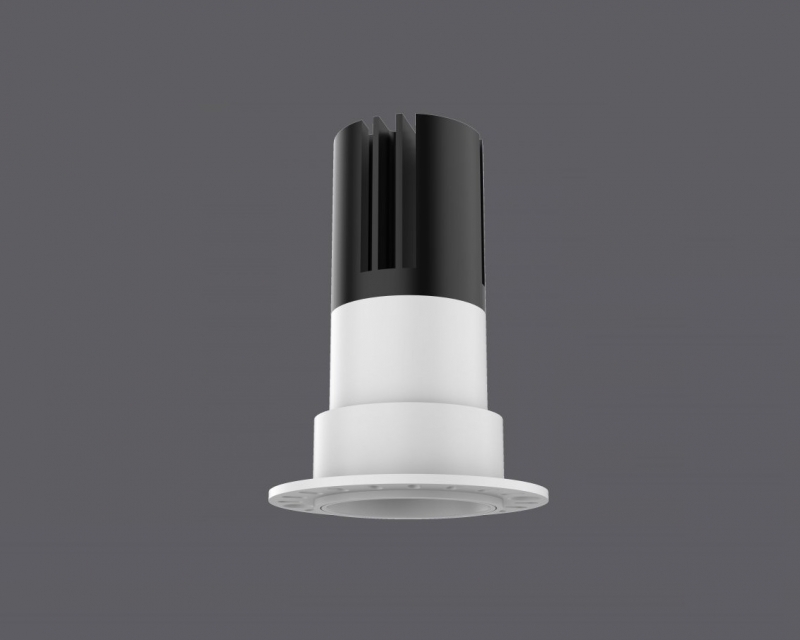

Indoor Lighting / Spot LightingTiny-T
BACK
| Housing | Aluminum Injection |
| Frame | Aluminum Injection-Trimless |
| Reflector | Metal-White Painted |
| Diffuser | Clear Lens |
| Paint | Electrostatic Powder Paint |

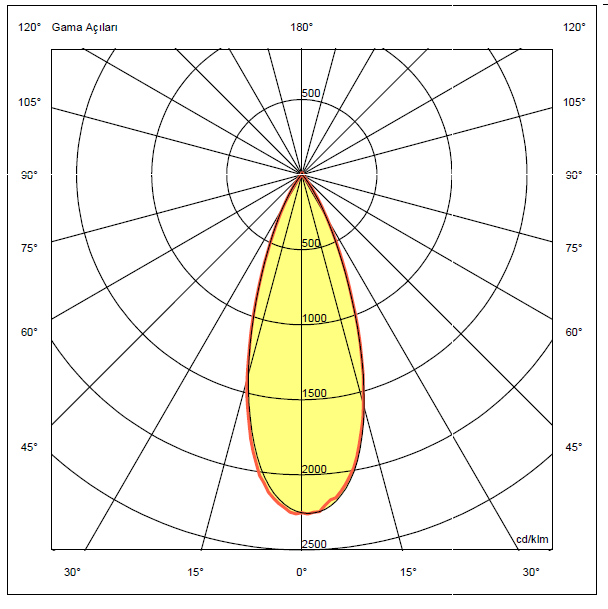

| Optics | Symmetrical |
| Light Output Angle | 37° |
| UGR Value | UGR ≤ 19 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |

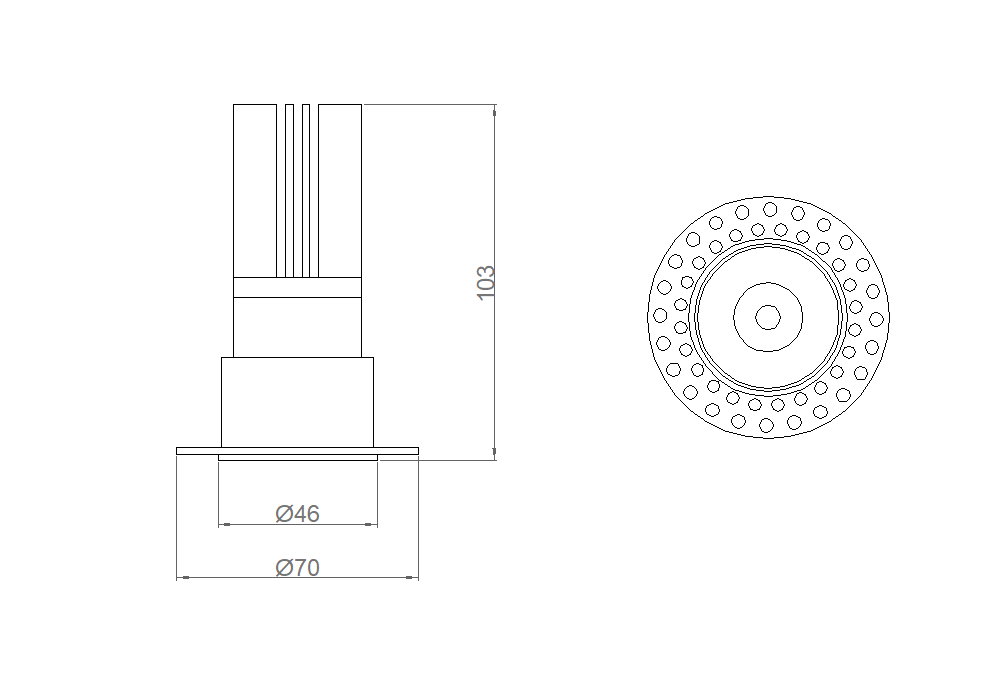

| Order Code | W | Lm | Angle | CCT | ØDx(H) | Cut-out dimensions (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 05212.04.03.007 | 10 | 740 | 37° | 3000 | Ø46x105mm | Ø45mm | 0,185 | Technical Page | Ldt |
| 05212.04.04.007 | 10 | 840 | 37° | 4000 | Ø46x105mm | Ø45mm | 0,185 | Technical Page |
| IP Rating | IP40 |
| IK Rating | IK04 |
Shopping Mall
Cafe
Office
School
Restaurant
