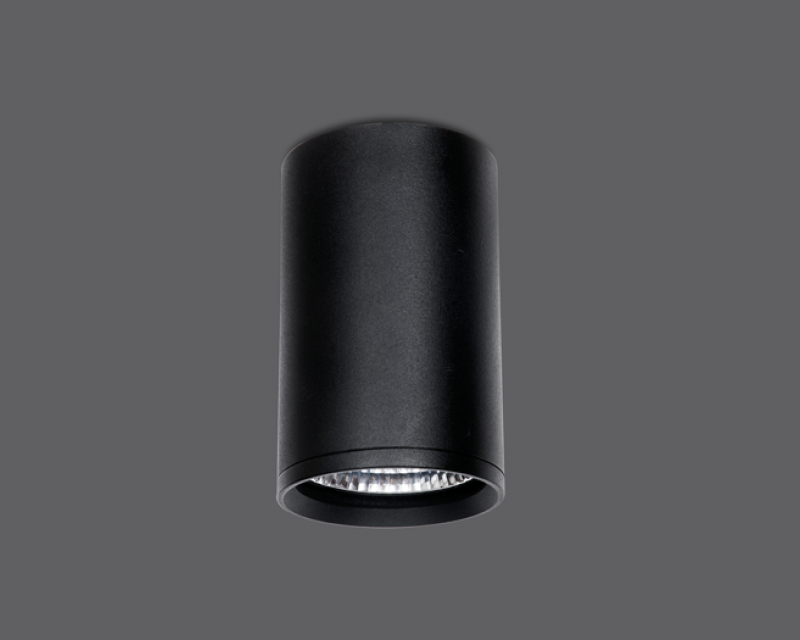

Indoor Lighting / Spot LightingModus-T

BACK
Housing Extruded Aluminum Profile
Frame Aluminum Injection
Reflector Metallized Surface Optics
Paint Electrostatic Powder Coating
Optics Symmetrical
Light Output Angle 36°
UGR Value UGR ≤ 19
CRI CRI ≥ 80
Color Bin Value Mc Adams ≤ 3
Documents
Technical Page Technical Drawing
Colour Options
Technical Info
Order CodeWLmAngleCCTCRIØxH (mm)KgTechnical PagePhotometric File
05648.97.30.01314181036°3000Ra>80100x2000,8 Technical Page Ldt
05648.97.40.01414191036°4000Ra>80100x2000,8 Technical Page Ldt
05648.97.30.01820253036°3000Ra>80100x2000,9 Technical Page Ldt
05648.97.40.01920270036°4000Ra>80100x2000,9 Technical Page Ldt
Photometric Files
Modus-T Photometric File
Working Conditions
IP Rating IP20
IK Rating IK02

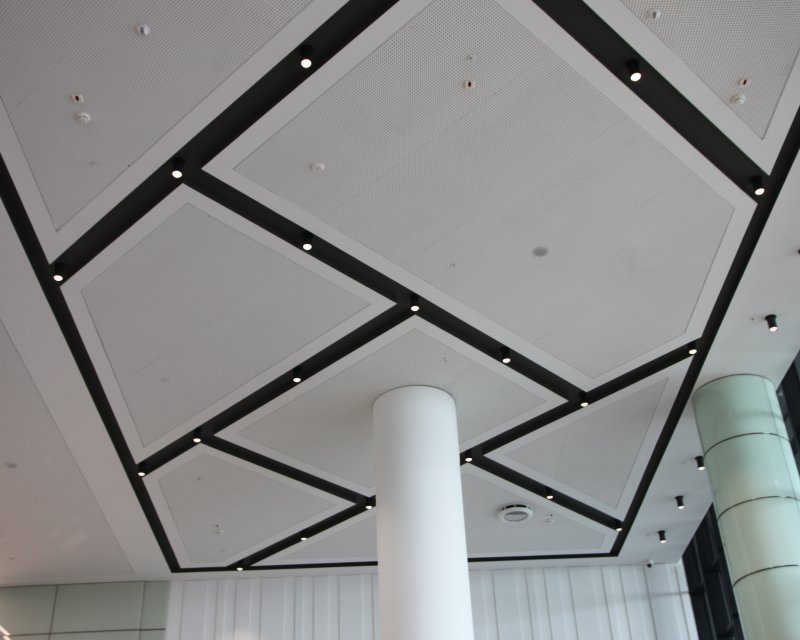

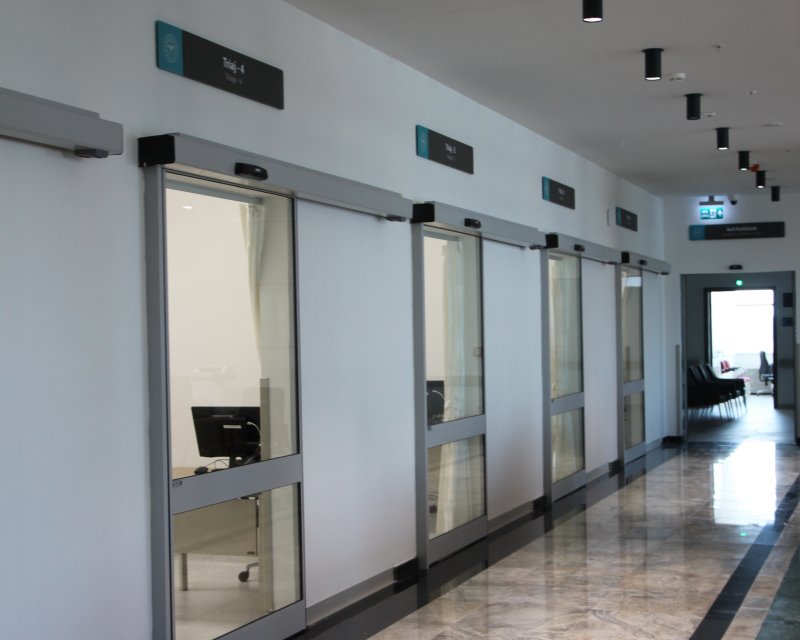

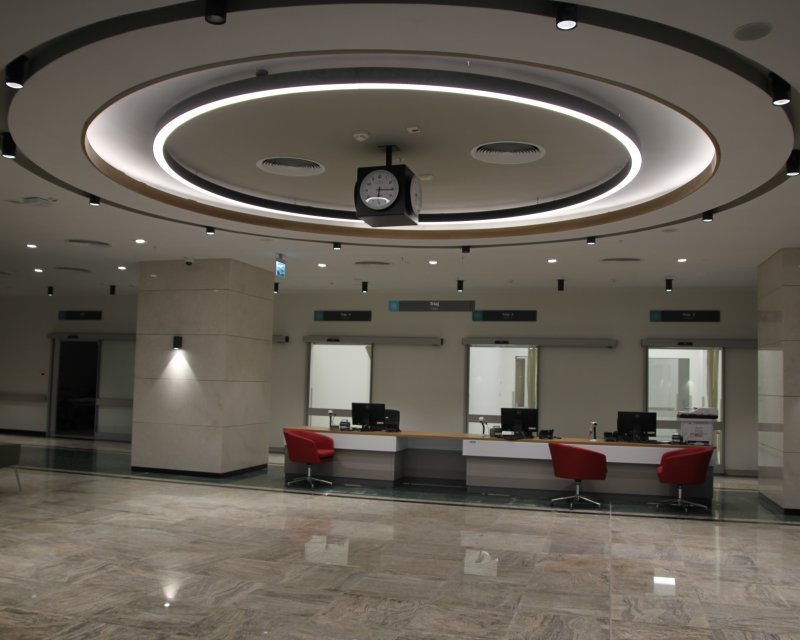

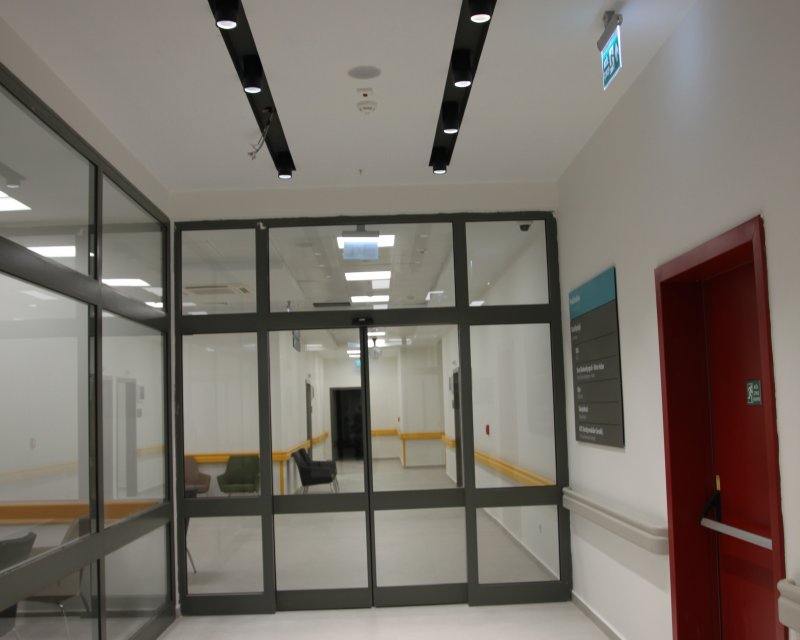

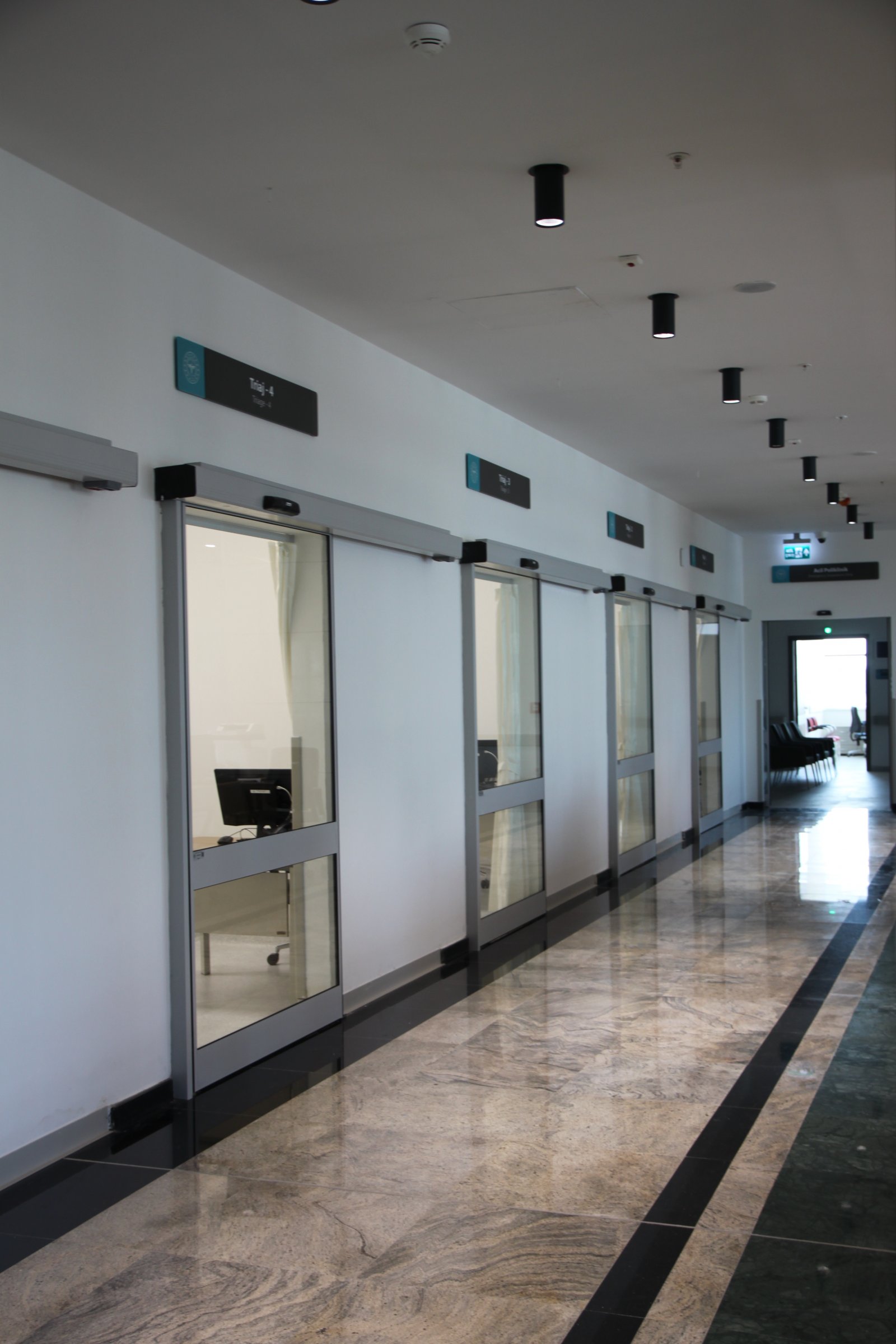

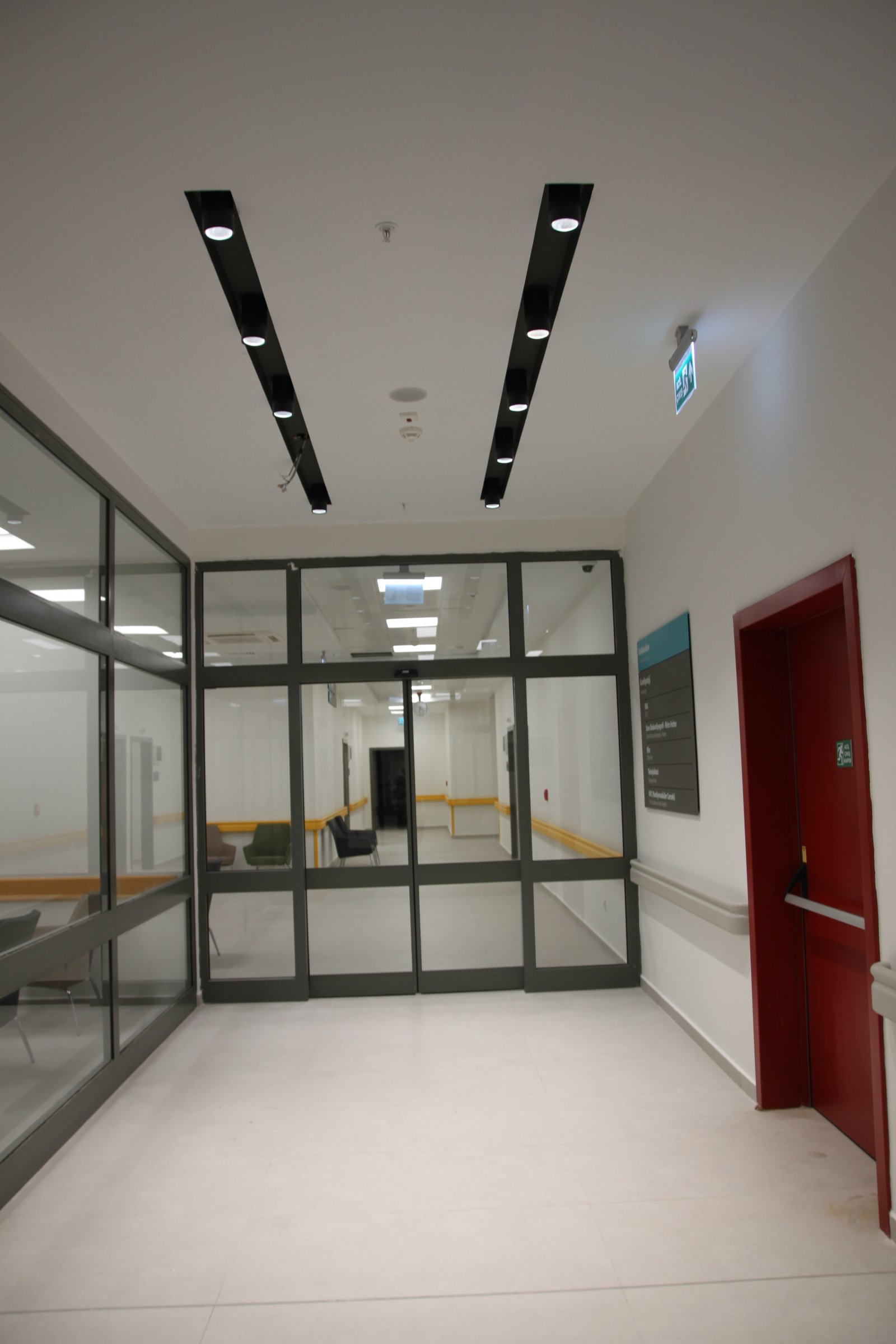

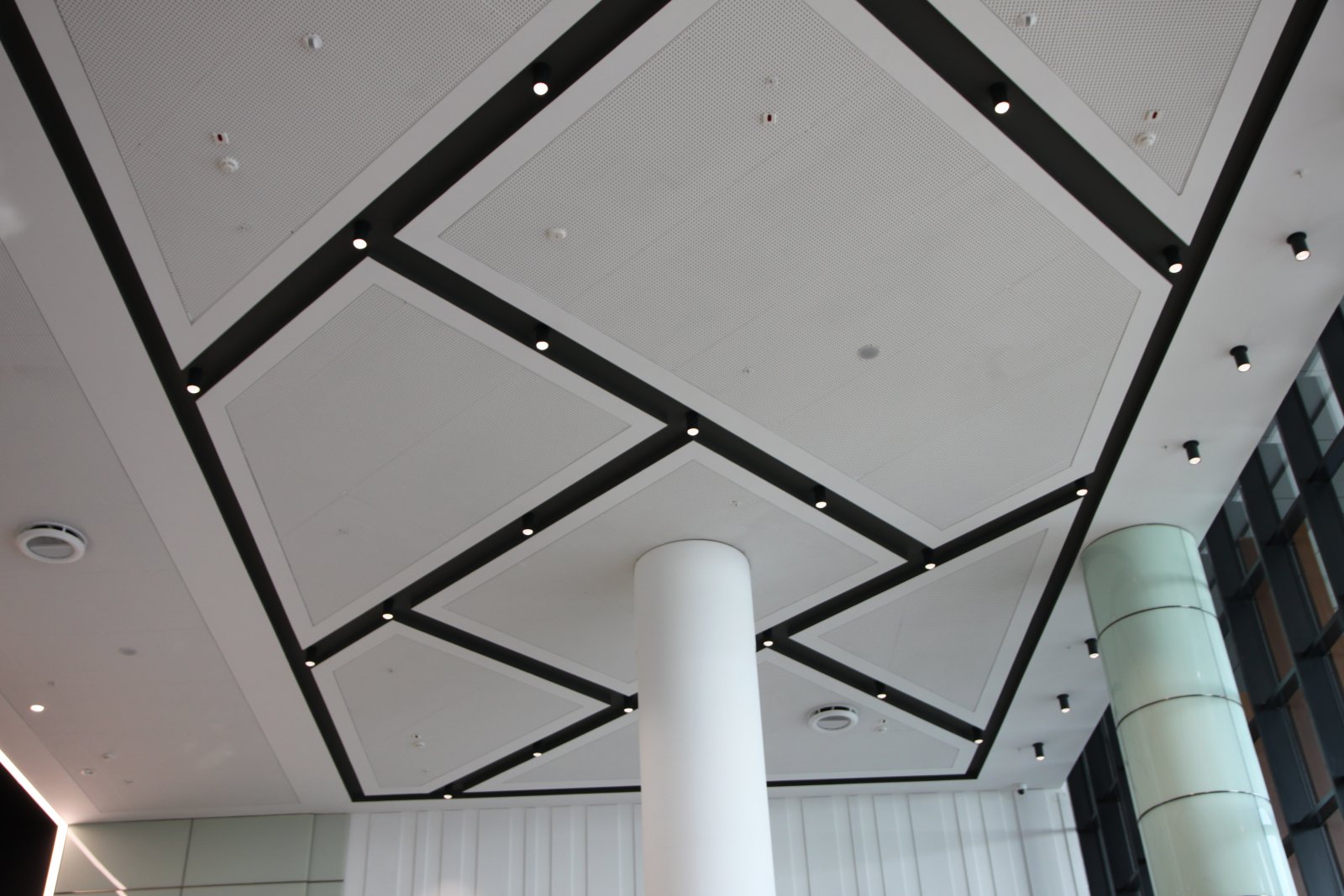

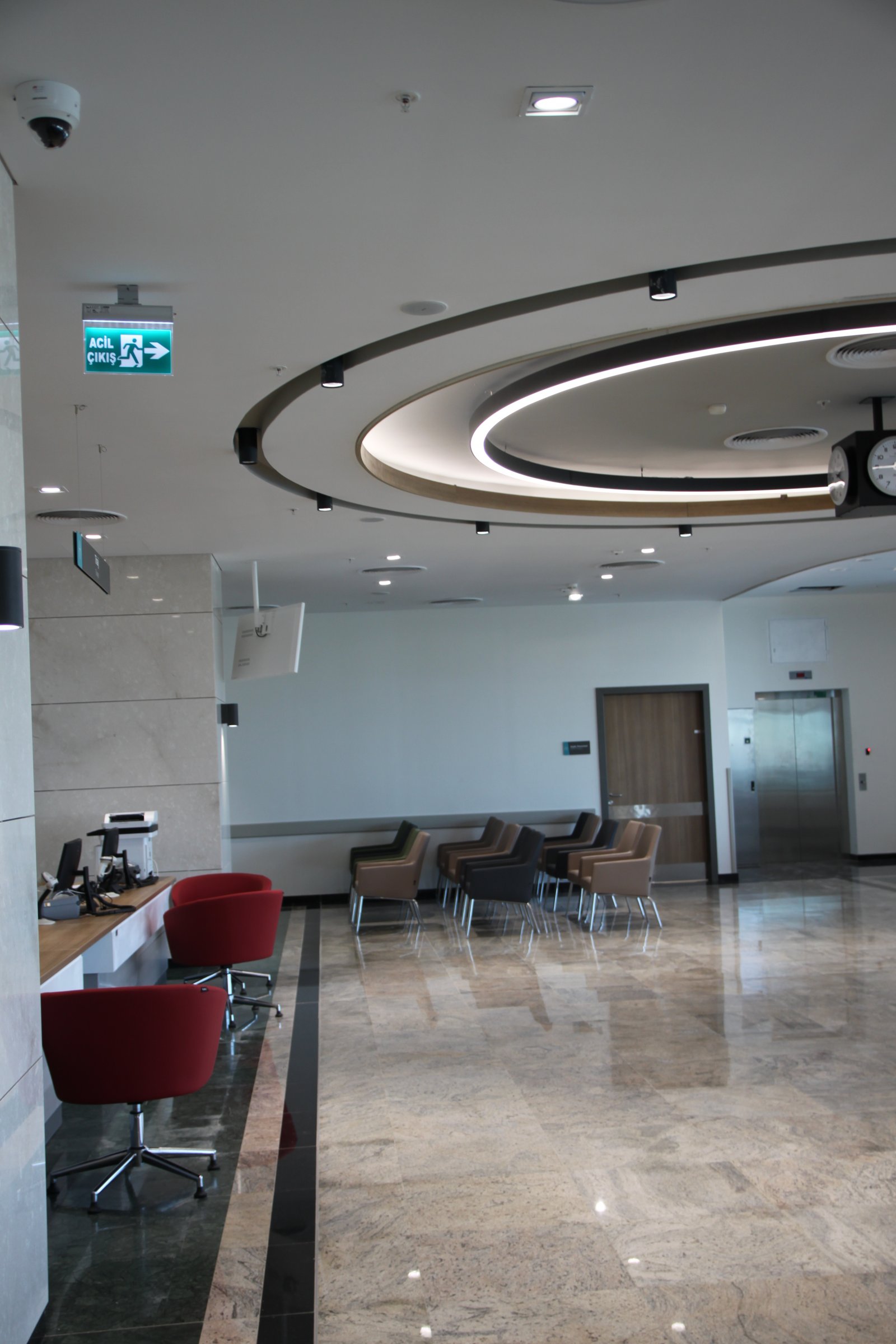

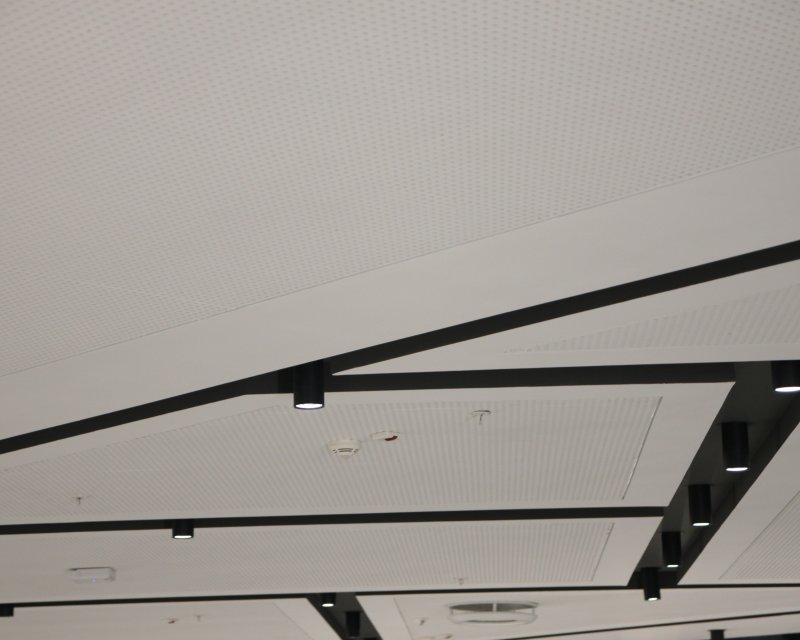

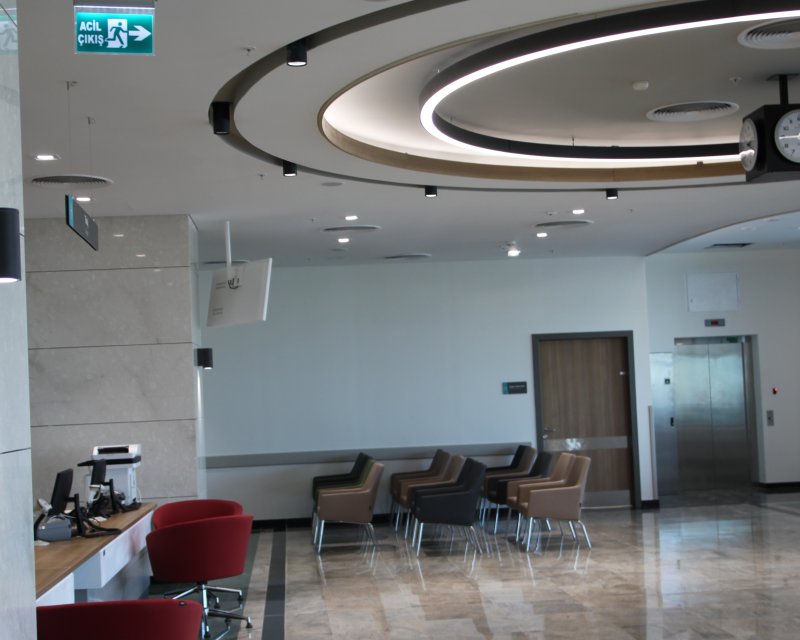

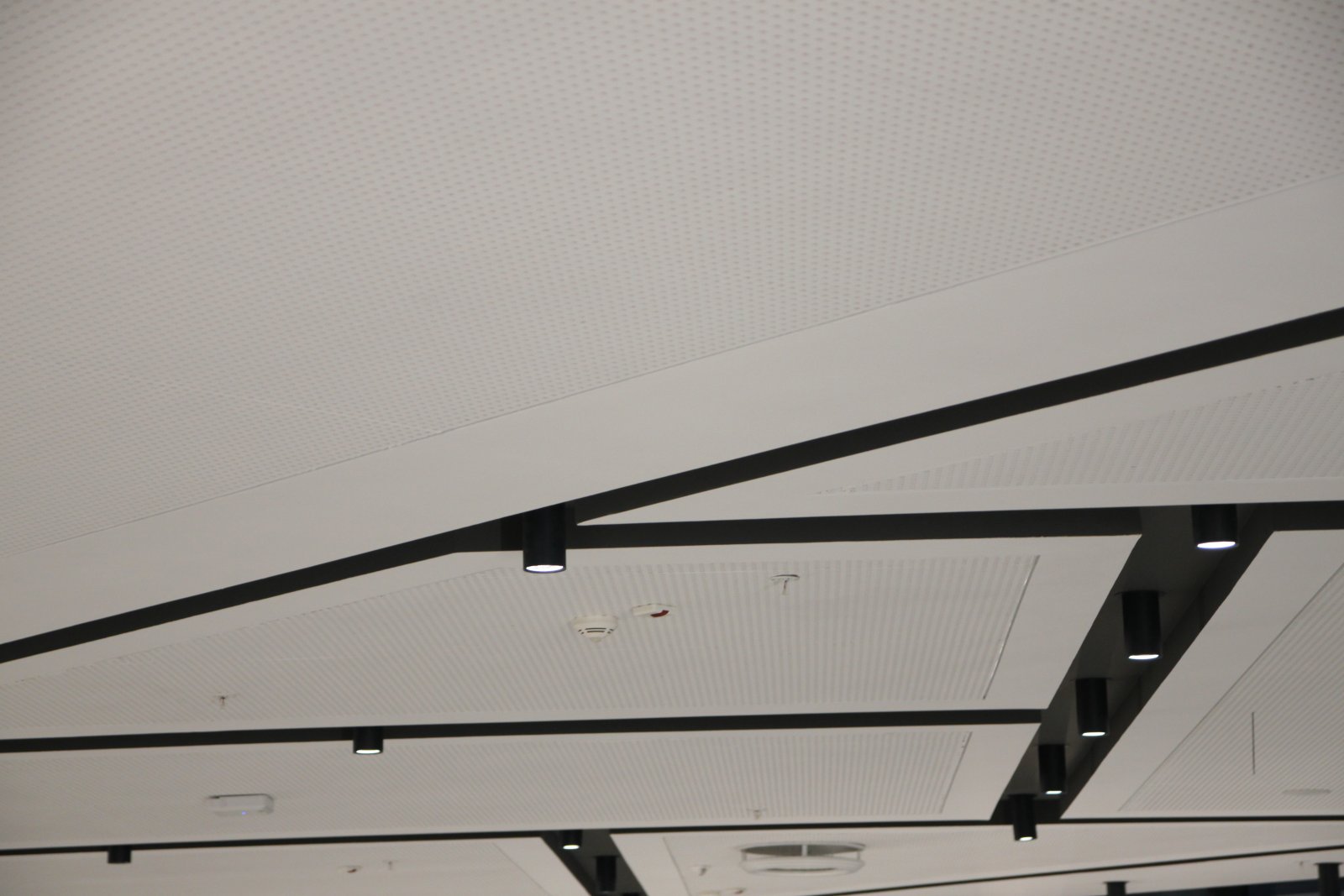

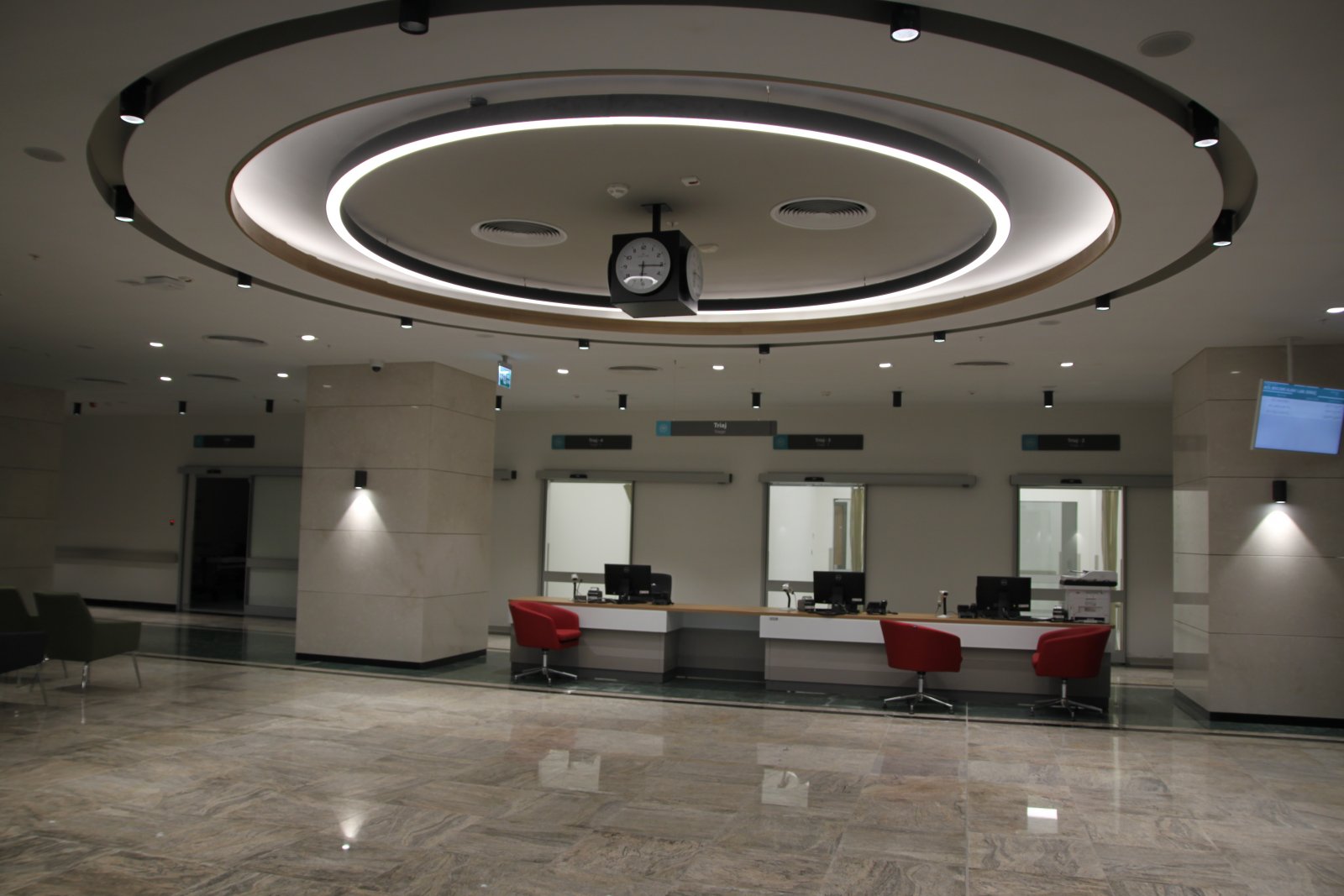

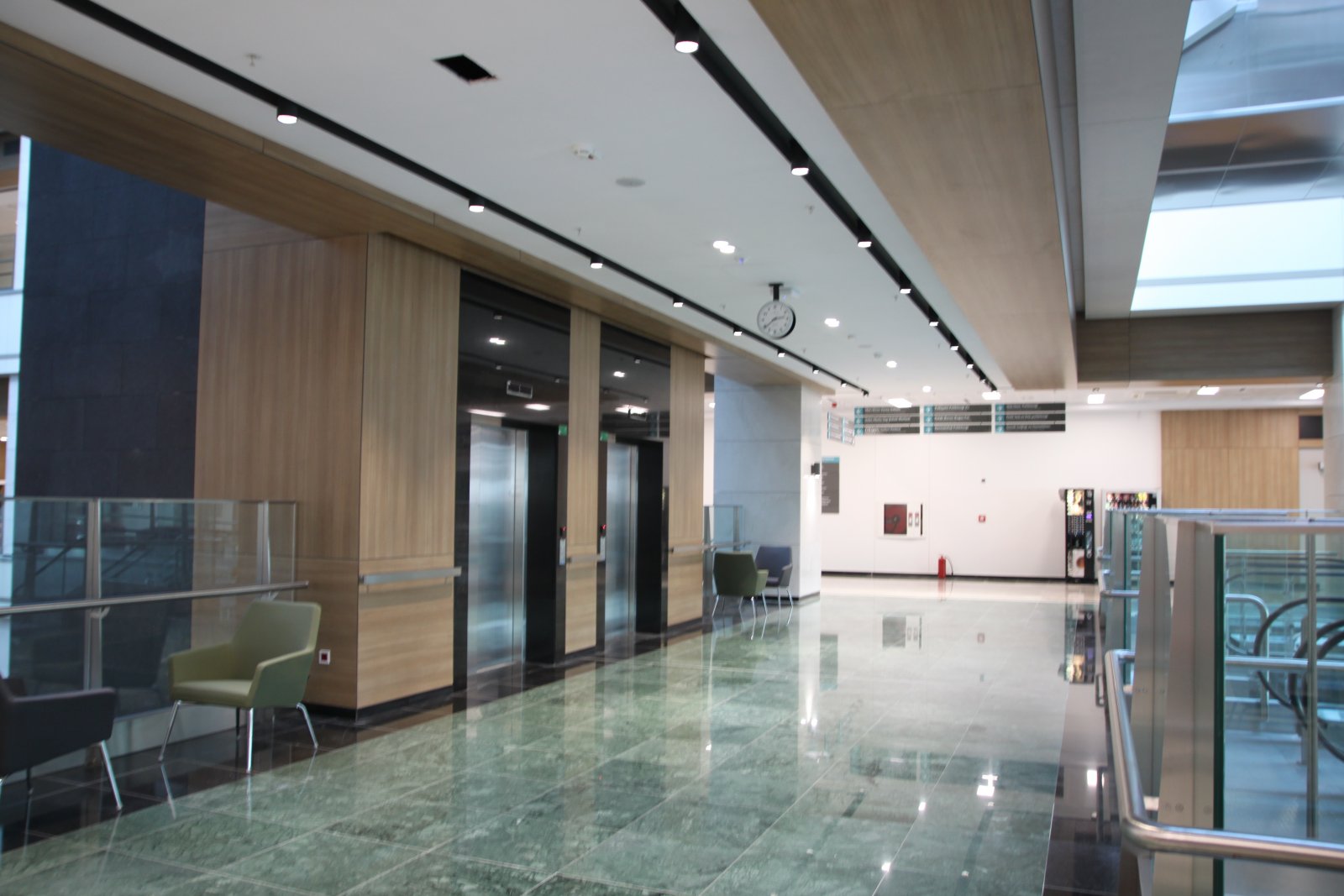

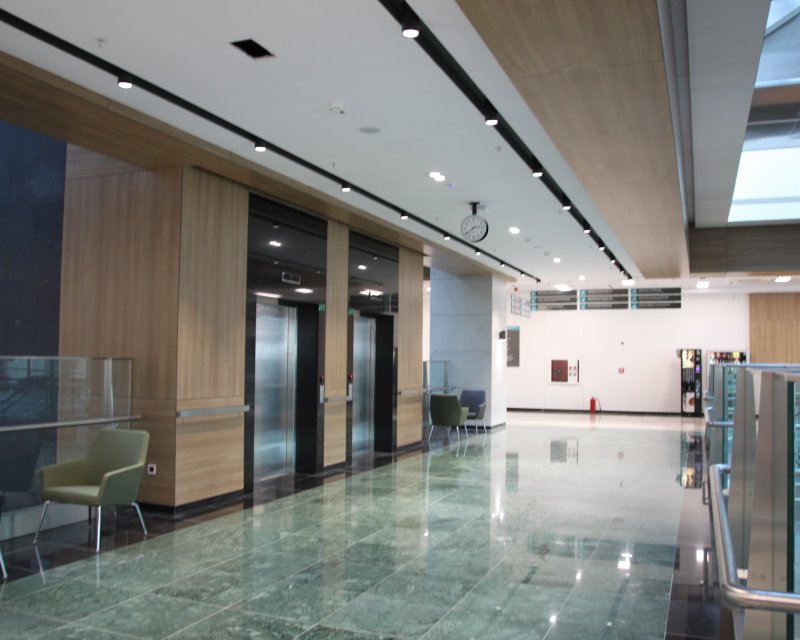

Application
Shopping Mall
Cafe
Business Center
Office
Sports Complex
Restaurant
Movie Theater
Sports Hall
Supermarket
Meeting Room
Showcase
