Indoor Lighting / Spot LightingModus-T
BACK
| Housing | Extruded Aluminum Profile |
| Frame | Aluminum Injection |
| Reflector | Metallized Surface Optics |
| Paint | Electrostatic Powder Coating |
| Optics | Symmetrical |

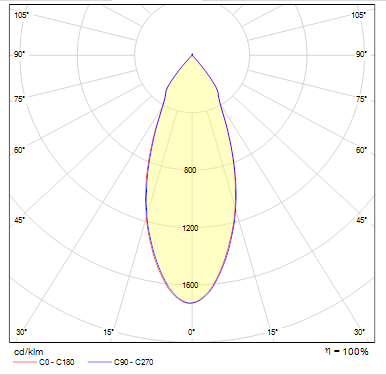

| Light Output Angle | 36° |
| UGR Value | UGR ≤ 19 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
   |

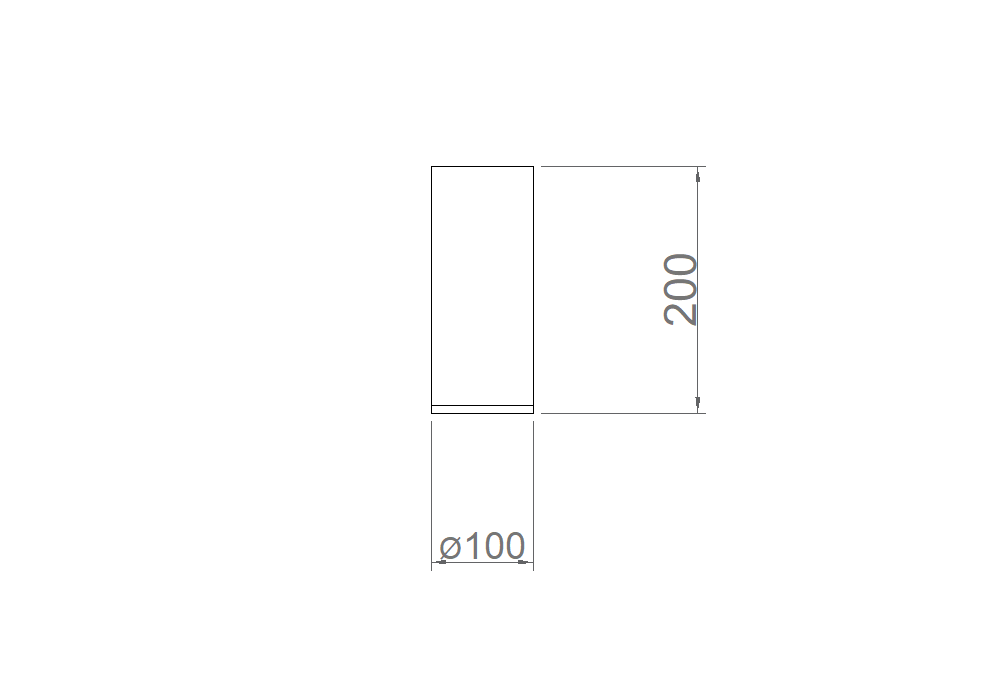

| Order Code | W | Lm | Angle | CCT | CRI | ØxH (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 05648.97.30.013 | 14 | 1810 | 36° | 3000 | Ra>80 | 100x200 | 0,8 | Technical Page | Ldt |
| 05648.97.40.014 | 14 | 1910 | 36° | 4000 | Ra>80 | 100x200 | 0,8 | Technical Page | Ldt |
| 05648.97.30.018 | 20 | 2530 | 36° | 3000 | Ra>80 | 100x200 | 0,9 | Technical Page | Ldt |
| 05648.97.40.019 | 20 | 2700 | 36° | 4000 | Ra>80 | 100x200 | 0,9 | Technical Page | Ldt |
| IP Rating | IP20 |
| IK Rating | IK02 |
