Indoor Lighting / Industrial LightingProof

BACK

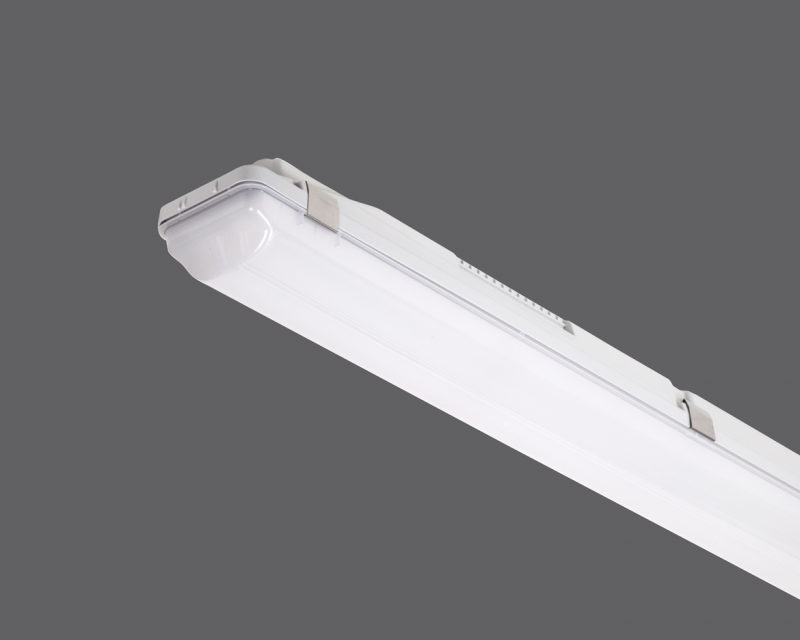

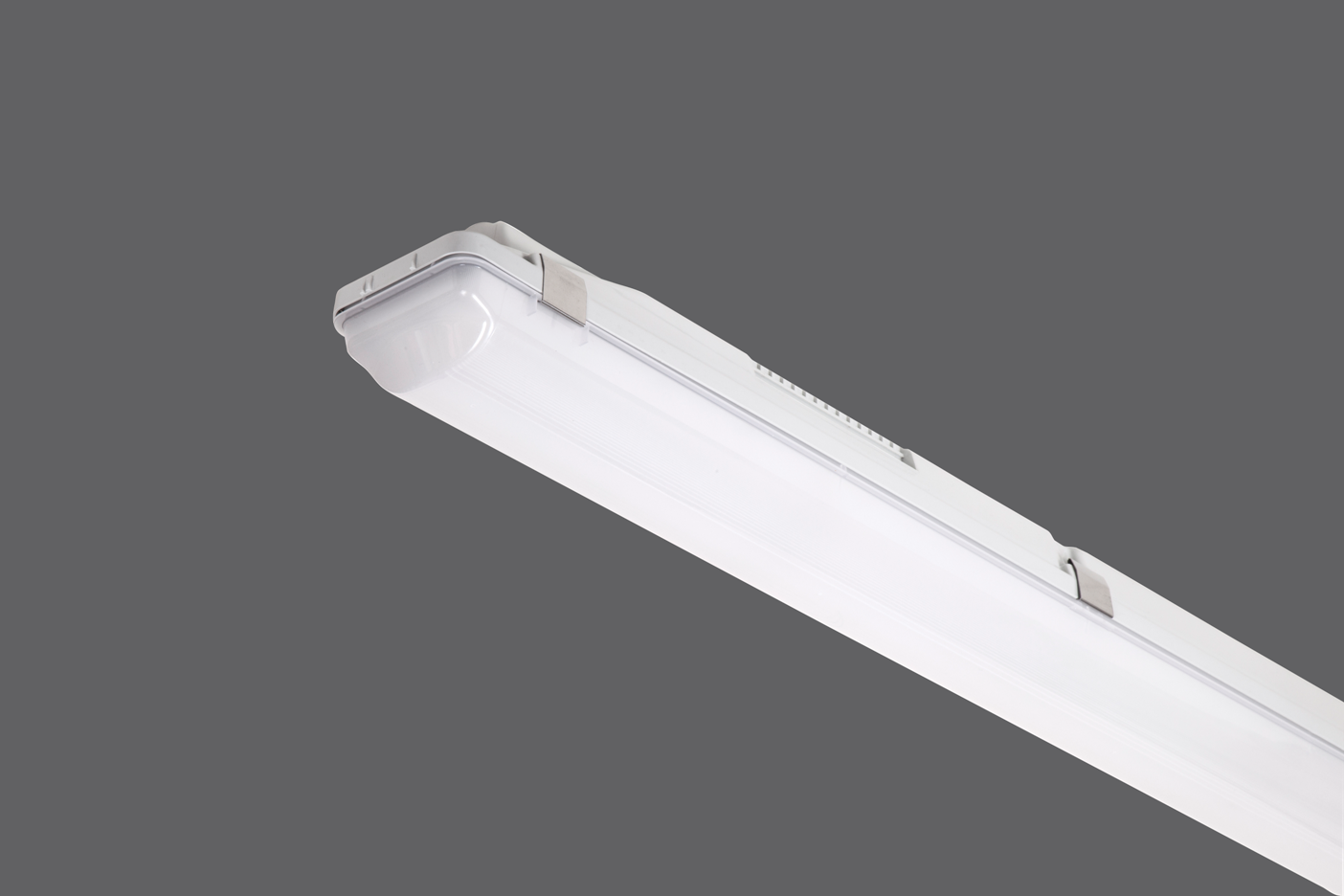

Housing Impact resistant PC
Optics Highly transmissive opal PC diffuser
Gasket Protection against water and dust
LED Lifetime L80B50 50.000 hours
Mounting System Surface
Documents
Technical Page Technical DrawingPhotometric File
Technical Info
Order CodeWLight SourceLmCCTKg
07101.14.30.03025LED Module288030001,6
07101.14.40.03025LED Module300040001,6
07101.14.30.03632LED Module345630001,6
07101.14.40.03632LED Module360040001,6
07101.14.30.04340LED Module412830001,8
07101.14.40.04340LED Module430040001,8
07101.14.30.04947LED Module470030001,8
07101.14.40.04947LED Module490040001,8
Photometric Files
Proof Photometric File
Working Conditions
IP Rating IP65
IK Rating IK08
Isolation Class Class I
Ambient Temperature -20 / + 40C°

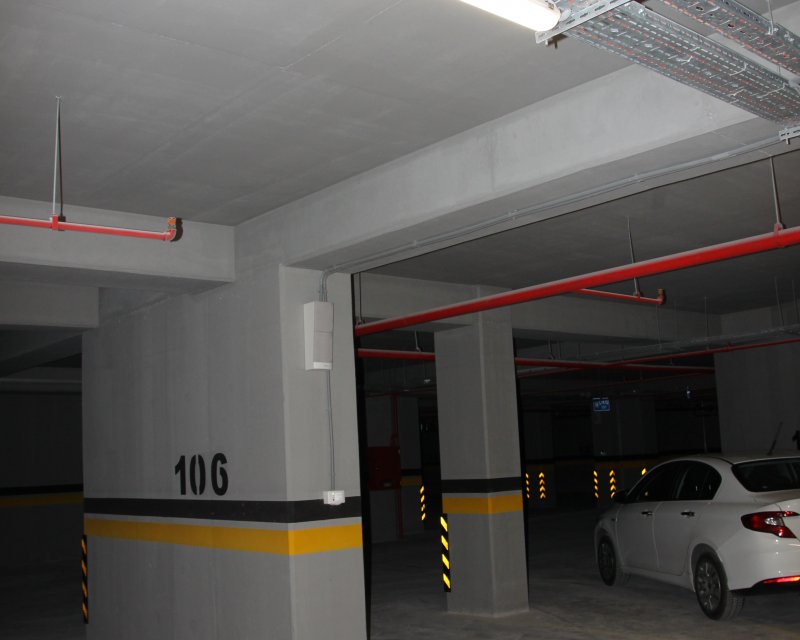

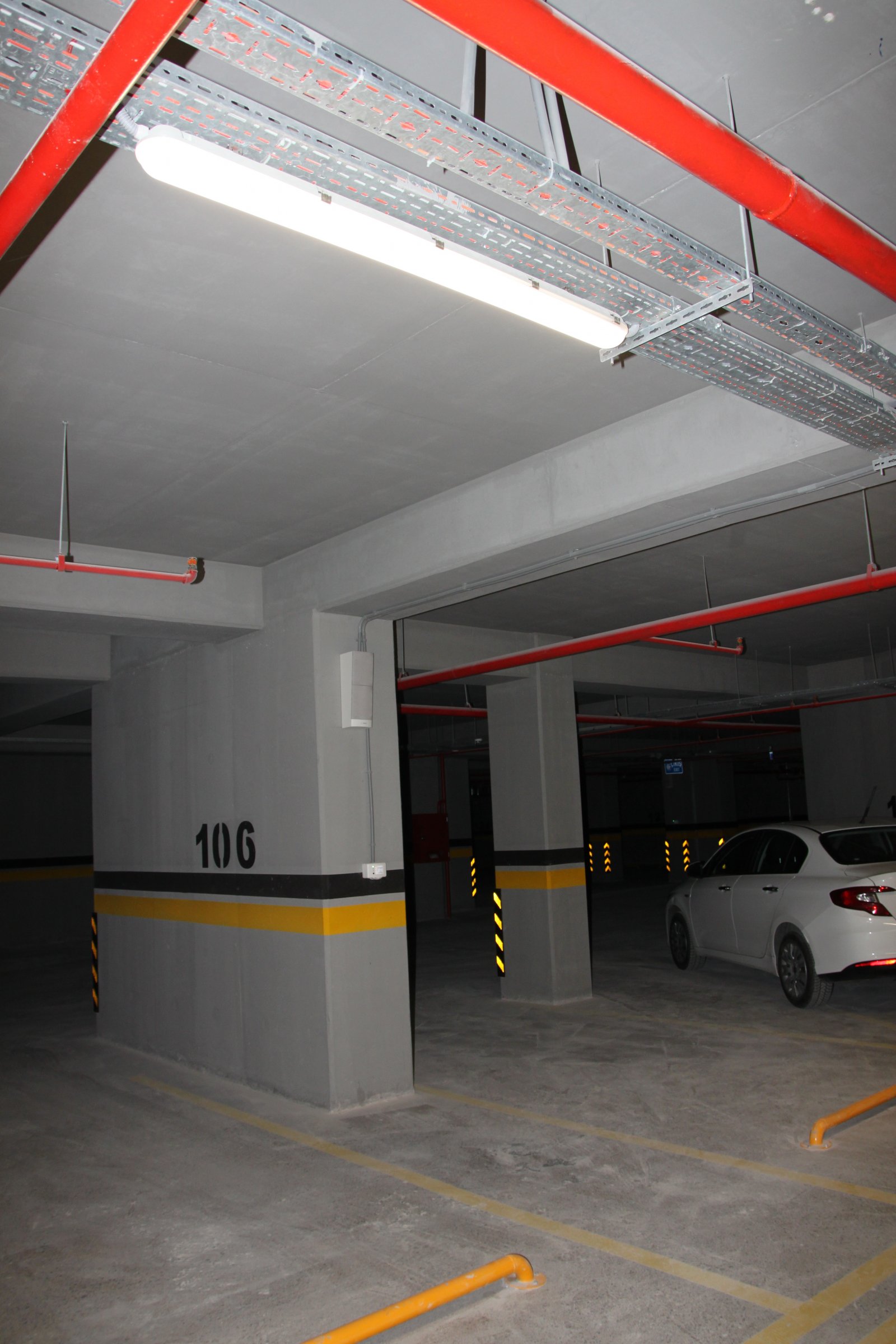

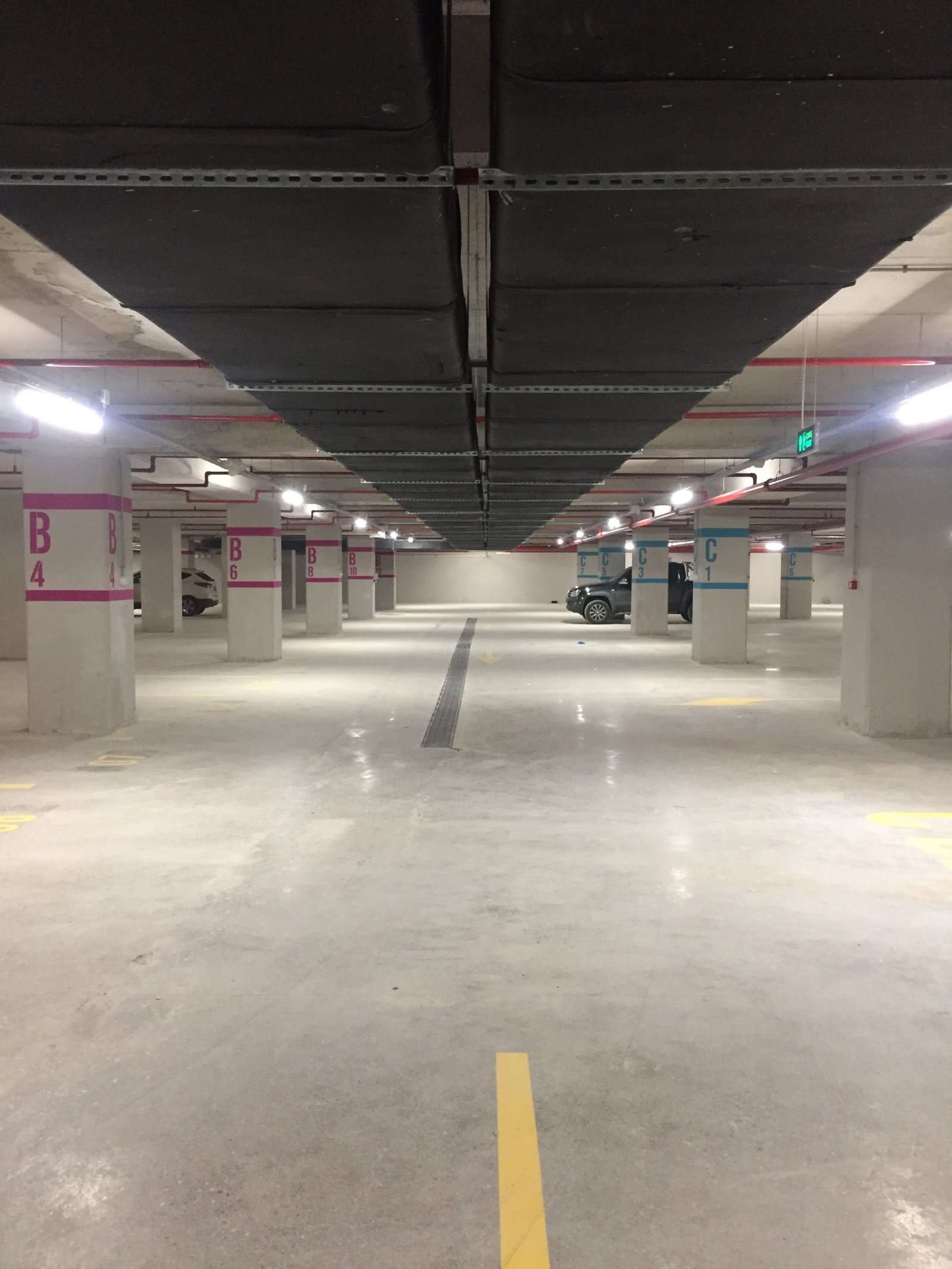

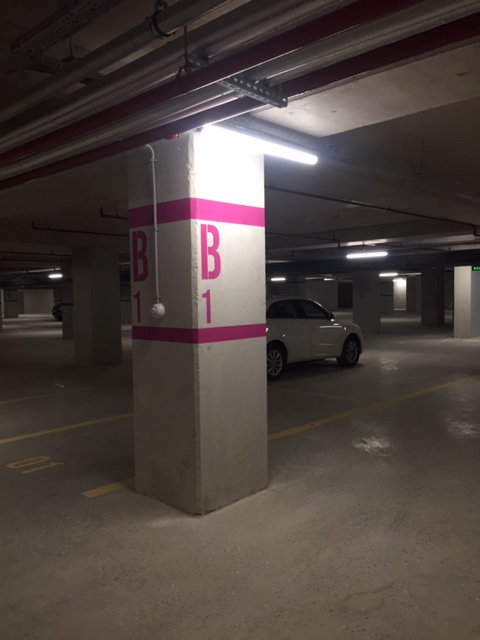

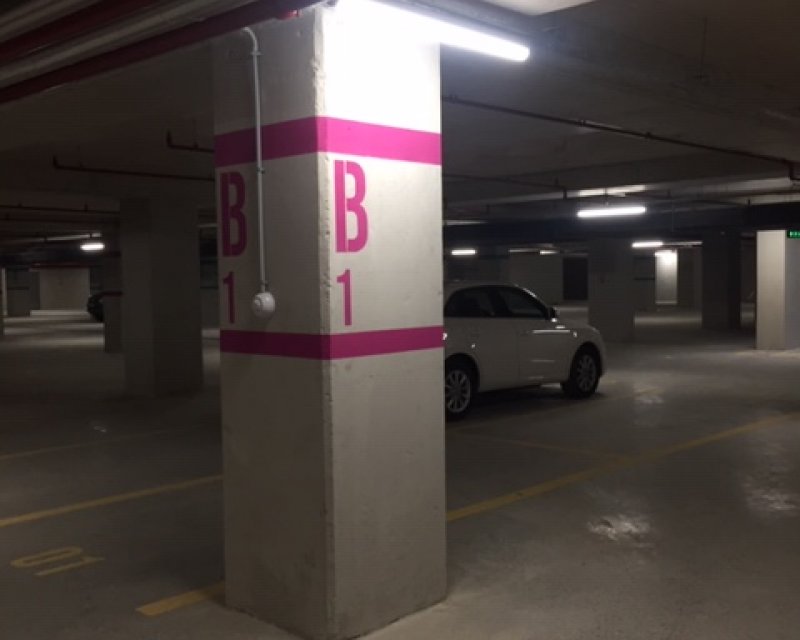

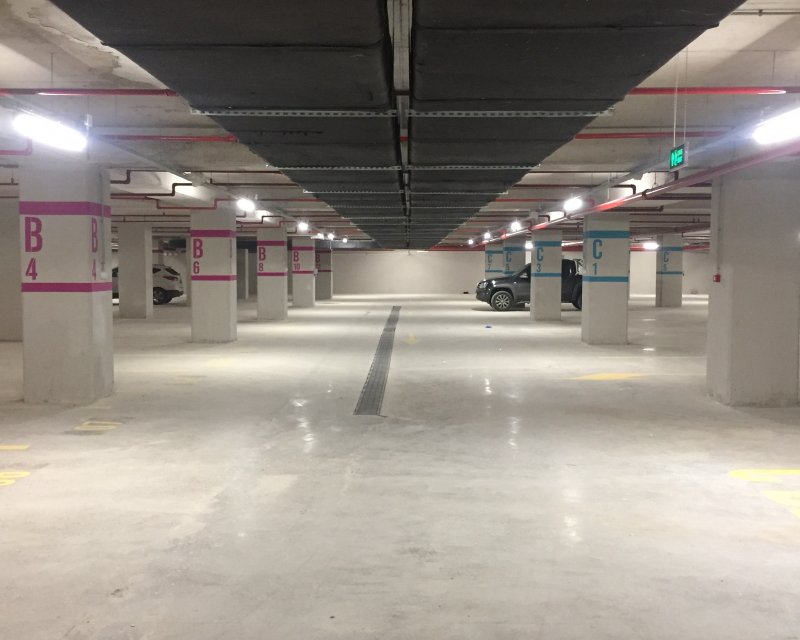

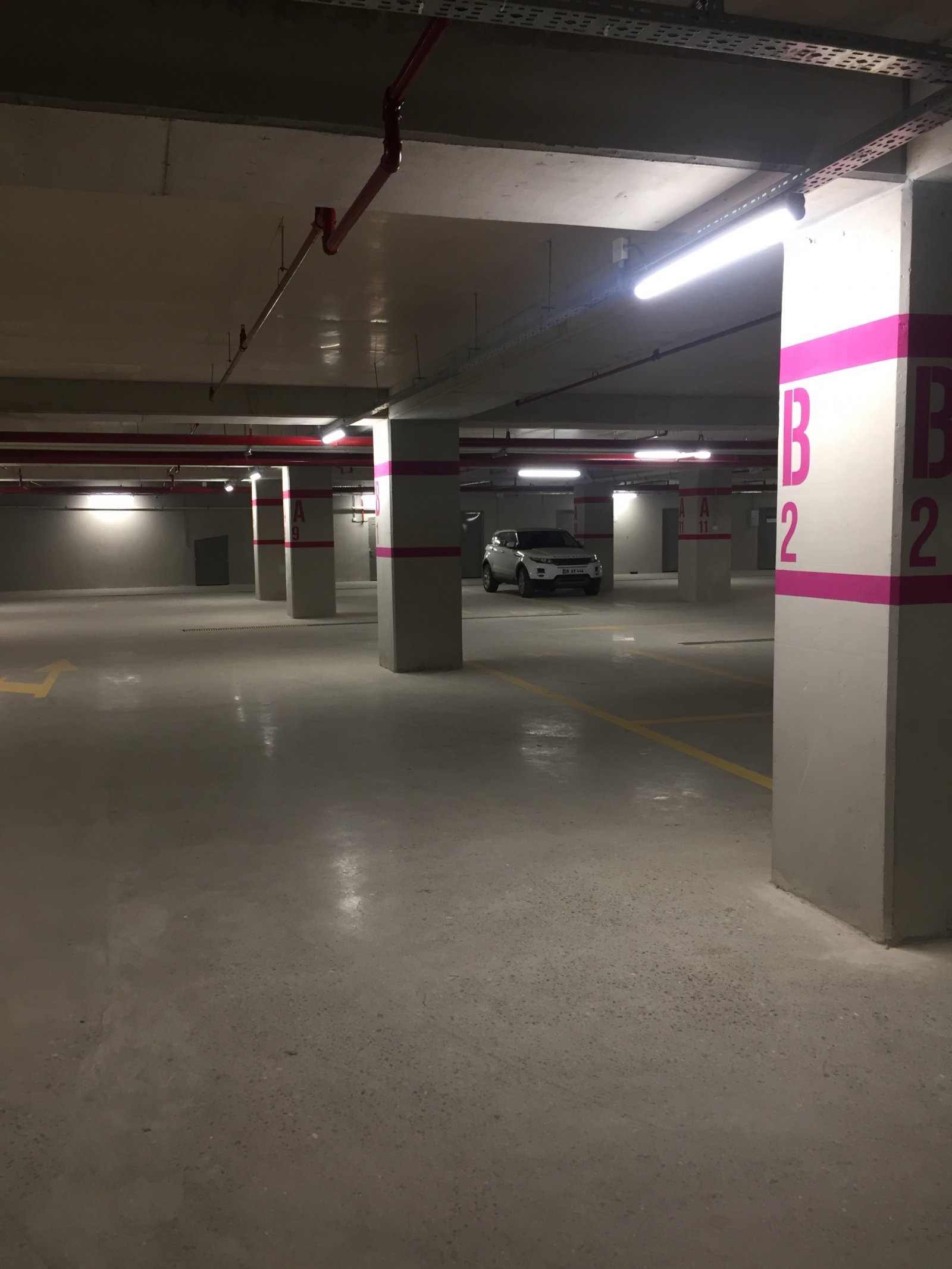

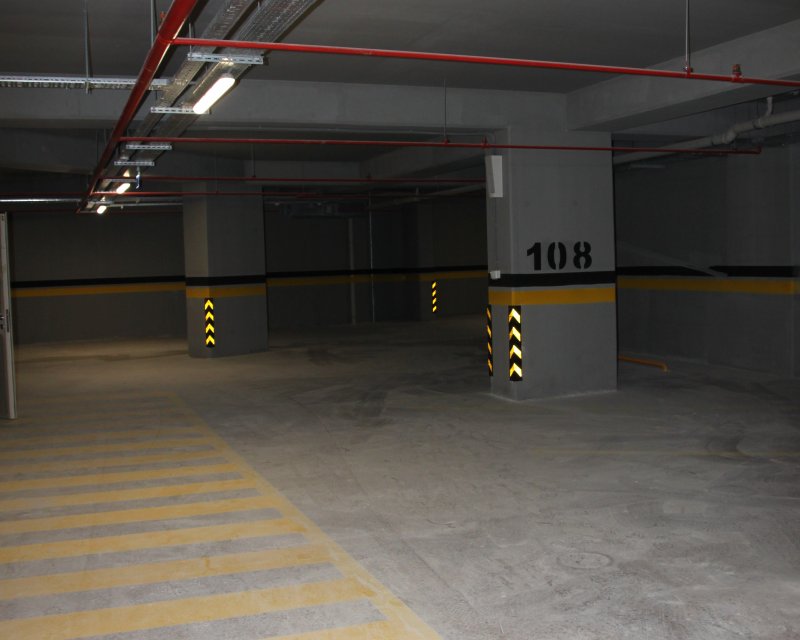

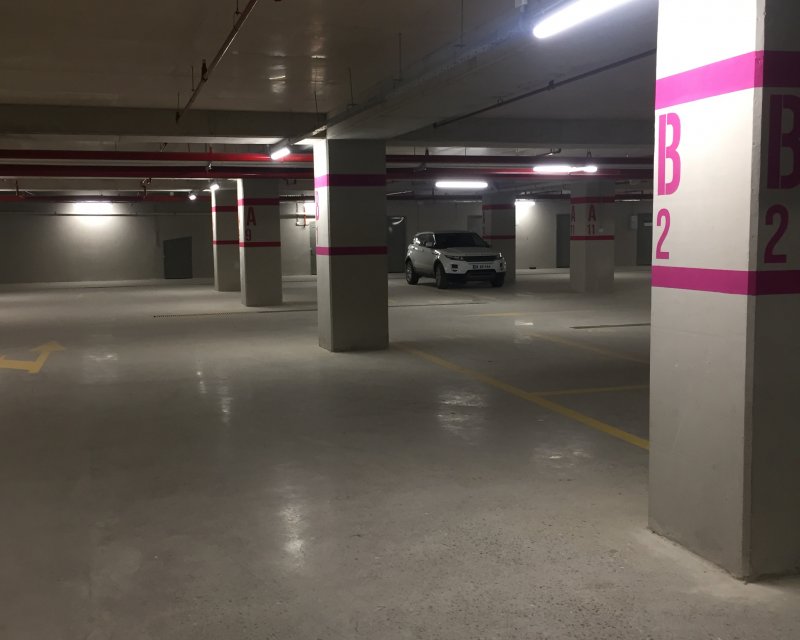

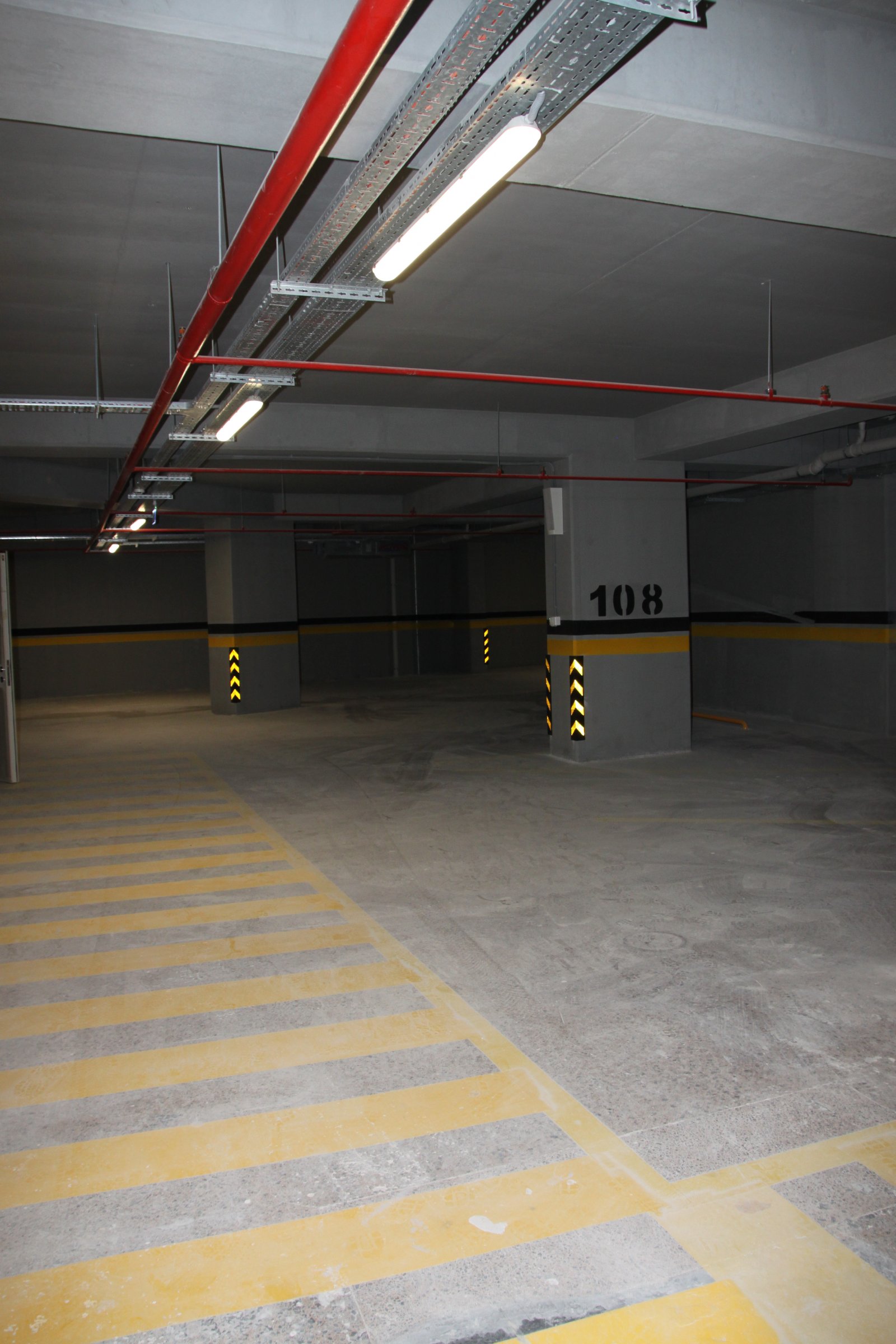

Application
Fabrika
Gemi
Nemli Ortam
Spor Kompleksi
Park ve Bahçe
Spor Salonu
Tünel
