Indoor Lighting / Downlight LightingSnow-019
BACK
| Housing | Aluminum Injection |
| Diffuser | High Transmittance Opal Diffuser |
| Frame | Aluminum İnjection |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical |

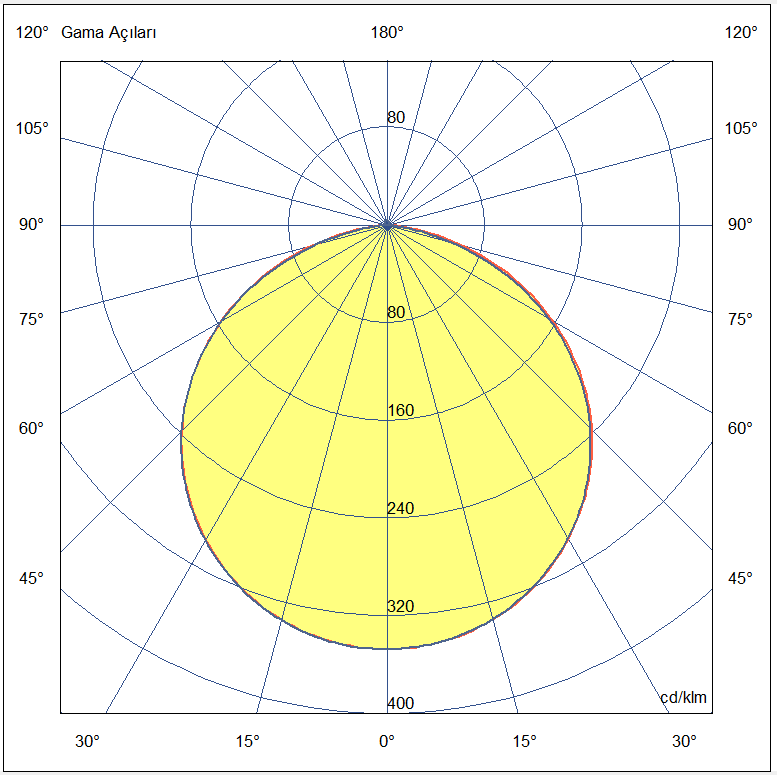

| Light Output Angle | 110° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
   |

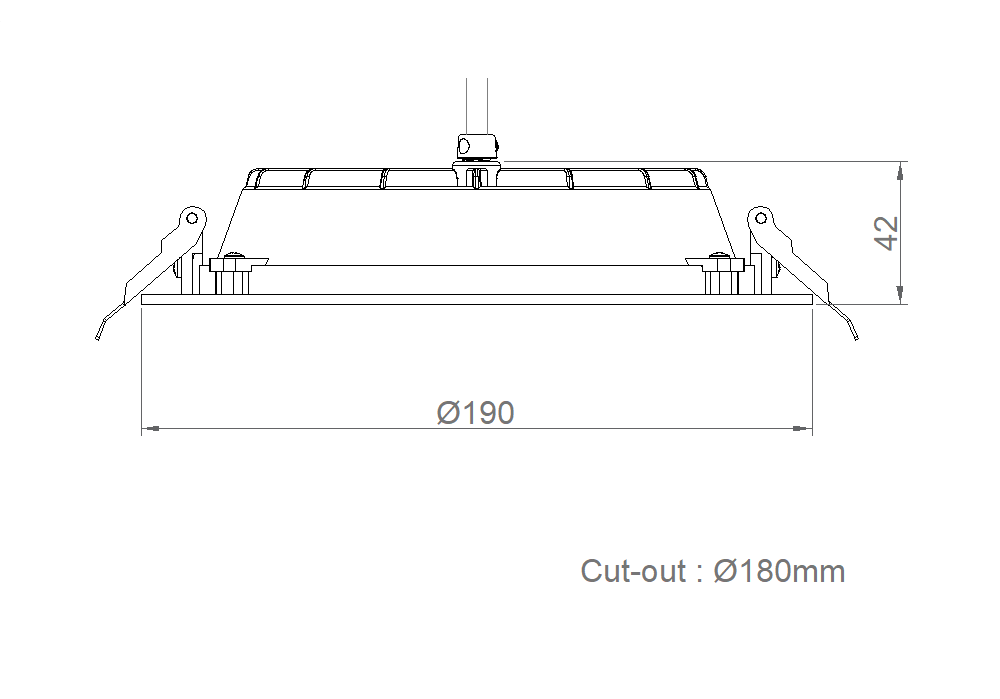

| Order Code | W | Lm | Productivity | CCT | CRI | ØDx(H) | Cut-out dimensions (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|---|
| 05393.19.30.020 | 19 | 1980 | 110 lm/W | 3000 | Ra>80 | Ø190x45 | 180 | 0,6 | Technical Page | |
| 05393.19.40.025 | 19 | 2200 | 120 lm/W | 4000 | Ra>80 | Ø190x45 | 180 | 0,6 | Technical Page | |
| 05393.19.30.023 | 23 | 2430 | 110 lm/W | 3000 | Ra>80 | Ø190x45 | 180 | 0,6 | Technical Page | |
| 05393.19.40.026 | 23 | 2700 | 120 lm/W | 4000 | Ra>80 | Ø190x45 | 180 | 0,6 | Technical Page |
| IP Rating | IP40/54 |
| IK Rating | IK02 |
Hospital
Business Center
Office
School
Restaurant
